2012 Epic 29 Frame

0 Reviews

The M5 aluminum Epic 29 frame has 100mm of travel and is ready for a custom cross-country…

Product Details

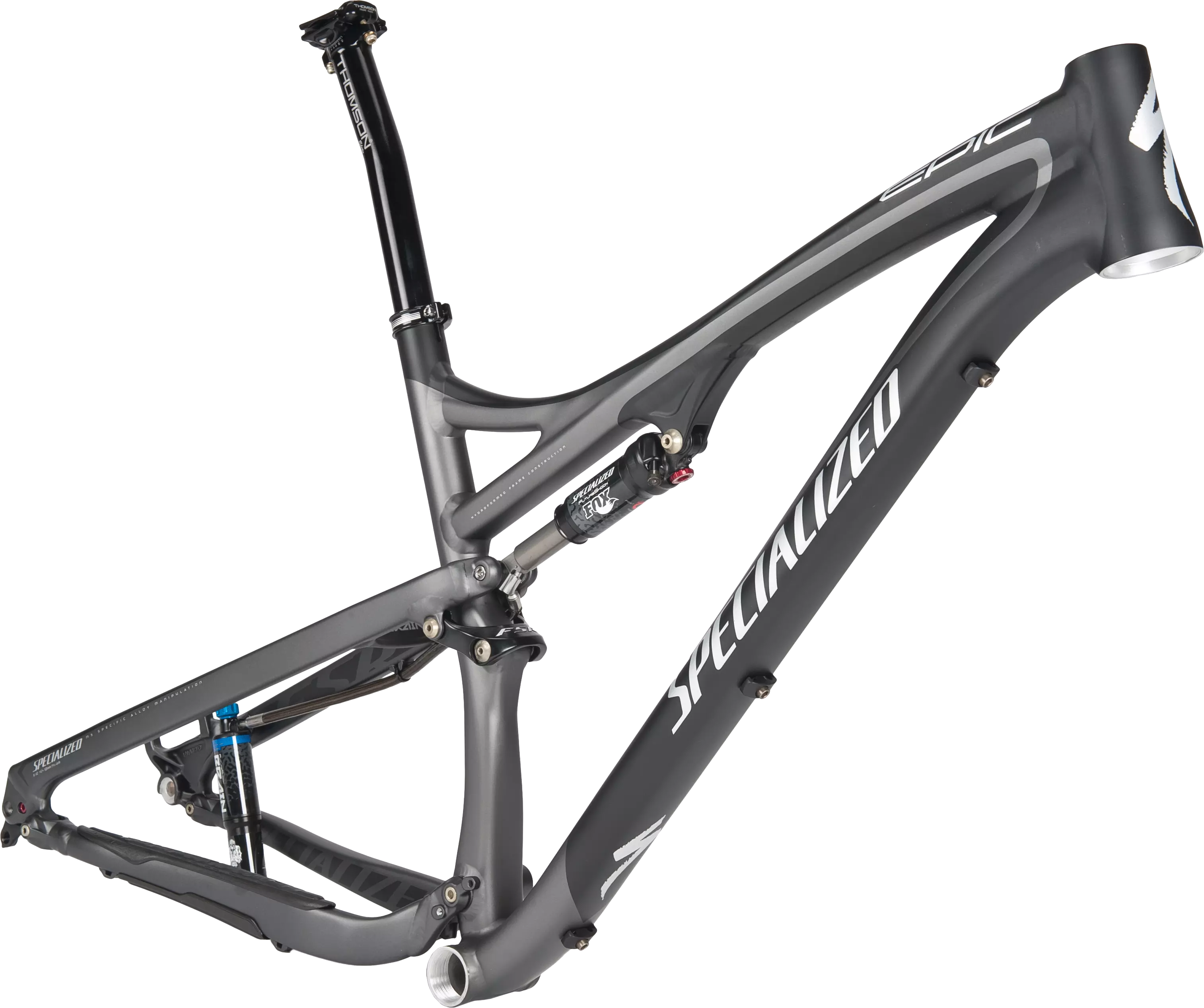

The M5 aluminum Epic 29 frame has 100mm of travel and is ready for a custom cross-country build.

M5 alloy Competitive XC frame with 100mm of efficient FSR suspension features 29er-specific geometry with short chainstays, low BB, and roomy top tube for confident all-day riding and racing
Specialized and Fox put their heads together to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for the ultimate in racing and trail riding performance, new 2012 tune
Thomson Elite Setback alloy post is super strong and light for worry-free bombing up or down the trails

Technical Specifications

FRAMESET

FRAME

M5 alloy, 29"" geometry, fully manipulated frame w/ ORE DT/TT, gussetless TT (S/M), tapered HT, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

34.9mm clamp size, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Fox/Specialized remote Mini-Brain w/new 2012 tune, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length

COCKPIT

SEATPOST

Thomson Elite Setback w/ 12º clamp, 410mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Sm	Med	LG	XL
Ground-Top	917mm	936mm	945mm	964mm
Bottom Bracket Height - Low Setting	331mm	331mm	331mm	331mm
Top Tube Length (Horizontal)	554mm	589mm	615mm	641mm
Head Tube Height	90mm	110mm	120mm	140mm
Head Tube Angle - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Actual) - Low Setting	69.5°	69.5°	70°	70°
Seat Tube Angle (Effective) - Low Setting	74°	74°	74°	74°
Top Tube Length (Actual)	527mm	559mm	584mm	607mm
Seat Tube Length - Center to Top	394mm	424mm	463mm	520mm
Wheel Base	1075mm	1109mm	1136mm	1163mm
Standover Height	755mm	766mm	775mm	790mm
Stack	586mm	605mm	614mm	633mm
Reach	386mm	415mm	438mm	458mm
Chainstay Length	448mm	448mm	448mm	448mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	75mm	90mm	105mm	105mm
Seatpost Length	400mm	400mm	400mm	400mm
