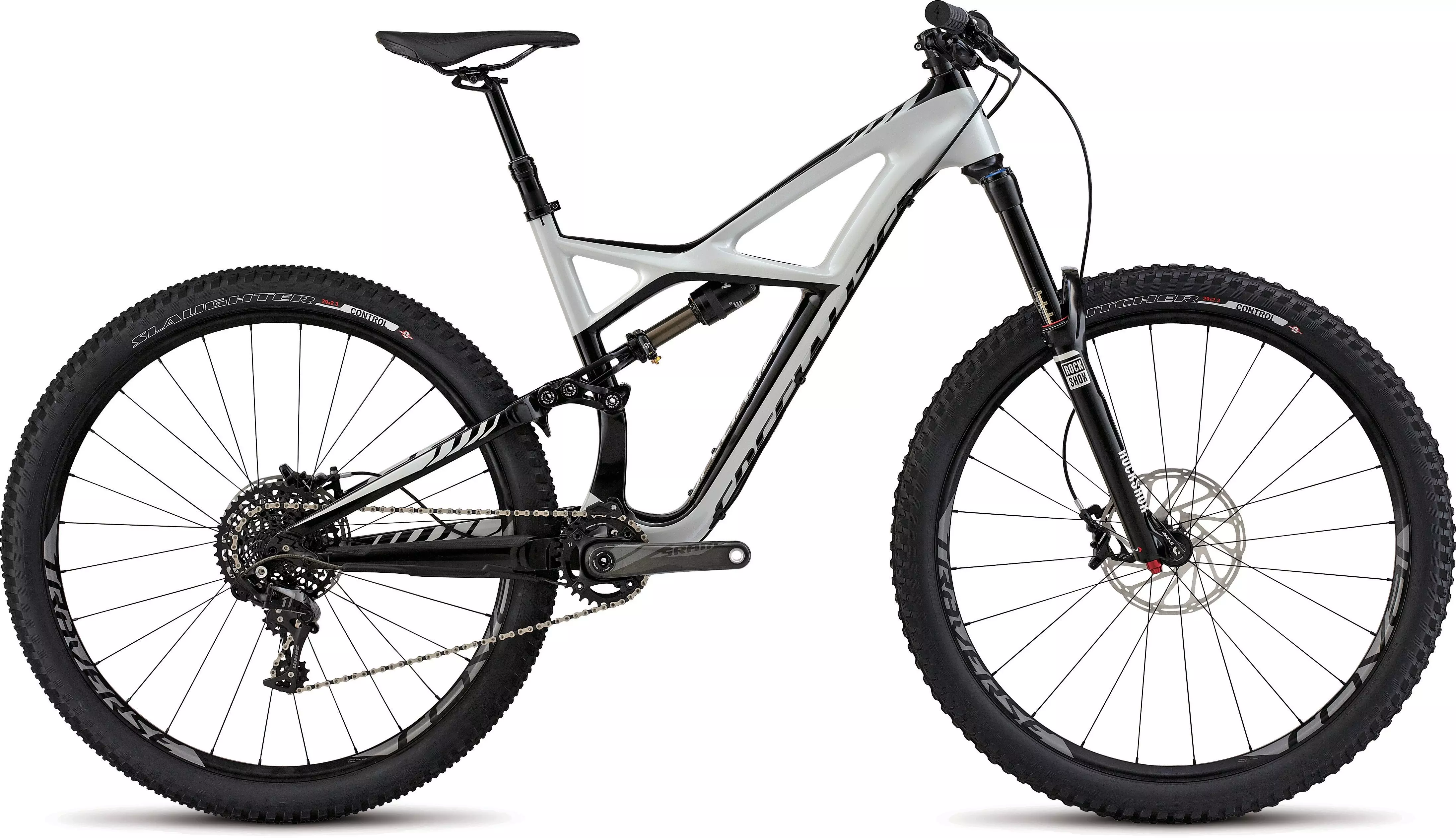

2015 Enduro Expert Carbon 29

0 Reviews

The Enduro FSR Expert Carbon 29 features a FACT IS-X 11m carbon front triangle, 155mm…

Product Details

The Enduro FSR Expert Carbon 29 features a FACT IS-X 11m carbon front triangle, 155mm of travel, custom Fox Float CTD Performance shock with Boost Valve, and custom Avid Elixir 7 Trail hydraulic disc brakes. Get some!

SRAM X01 11-speed, carbon cage rear derailleur for premium shifting performance
Roval Traverse Fattie 142+ wheelset for durable and tubeless-ready performance
Custom Cane Creek DB Inline shock for tunability and control over challenging terrain
FACT 11m carbon frame w/ All-Mountain geometry and 155mm travel for pure capability
Specialized Command Post IR w/ remote lever to adjust saddle height on-the-fly
RockShox Pike RC 160mm-travel fork w/15mm thru-axle is tuned for precise handling at speed
SRAM Guide RS brakes w/ metallic pads and reach adjust for premium stopping power
Aggressive tread and lightweight Specialized Butcher Control front tire
Specialized Slaughter Control rear tire for fast-rolling performance on challenging terrain

Technical Specifications

FRAMESET

FRAME

FACT IS-X 11m carbon, 29"" geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom Cane Creek DB AIR Inline, high/low-speed compression and rebound adj., w/ climb switch, 8.5""x2.25""

FORK

RockShox Pike RC 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adj., 15mm thru-axle, 160mm travel

WHEELS

RIMS

Roval Traverse Fattie 29, alloy disc, 29mm inner width, 24/28h

FRONT HUB

Roval Traverse, 15mm thru-axle end caps, 24h

REAR HUB

Roval Traverse 142+, XX1 driver body, 12mm thru-axle, 28h

SPOKES

DT Swiss Revolution

DRIVETRAIN

REAR DERAILLEUR

SRAM X01, 11-speed, carbon cage

SHIFT LEVERS

SRAM X1, 11-speed, trigger

CASSETTE

SRAM X01, 11-speed, 10-42

CHAIN

SRAM 1190, 11-speed

CRANKSET

Custom SRAM S-2200, carbon, PF30 spindle, 30T, 94mm BCD spider

BOTTOM BRACKET

SRAM, PF30, OS press-in bearings, sealed cartridge

COCKPIT

SEATPOST

Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, 125mm travel

STEM

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized XC, mini rise, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

BRAKES

FRONT BRAKE

SRAM Guide RS, metalic pads, Guide R caliper, 200mm Centerline rotor

REAR BRAKE

SRAM Guide RS, metalic pads, Guide R caliper, 180mm Centerline rotor

BRAKE LEVERS

SRAM Guide R, alloy lever, w/ reach adjust

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	M	L	XL
Top Tube Length (Horizontal)	594mm	617mm	640mm
Seat Tube Angle (Effective)	75°	75°	75°
Head Tube Height	110mm	120mm	135mm
Top Tube Length (Actual)	557mm	577mm	602mm
Seat Tube Angle (Actual)	69°	69°	69°
Seat Tube Length - Center to Top	445mm	470mm	520mm
Bottom Bracket Height	351mm	351mm	351mm
Wheel Base	1159mm	1183mm	1209mm
Standover Height	777mm	783mm	789mm
Stack	632mm	641mm	655mm
Reach	425mm	445mm	465mm
Head Tube Angle	67.5°	67.5°	67.5°
Chainstay Length	430mm	430mm	430mm
Crank Length	175mm	175mm	175mm
Handlebar Width	750mm	750mm	750mm
Stem Length	60mm	75mm	75mm
Seatpost Length	425mm	425mm	425mm
