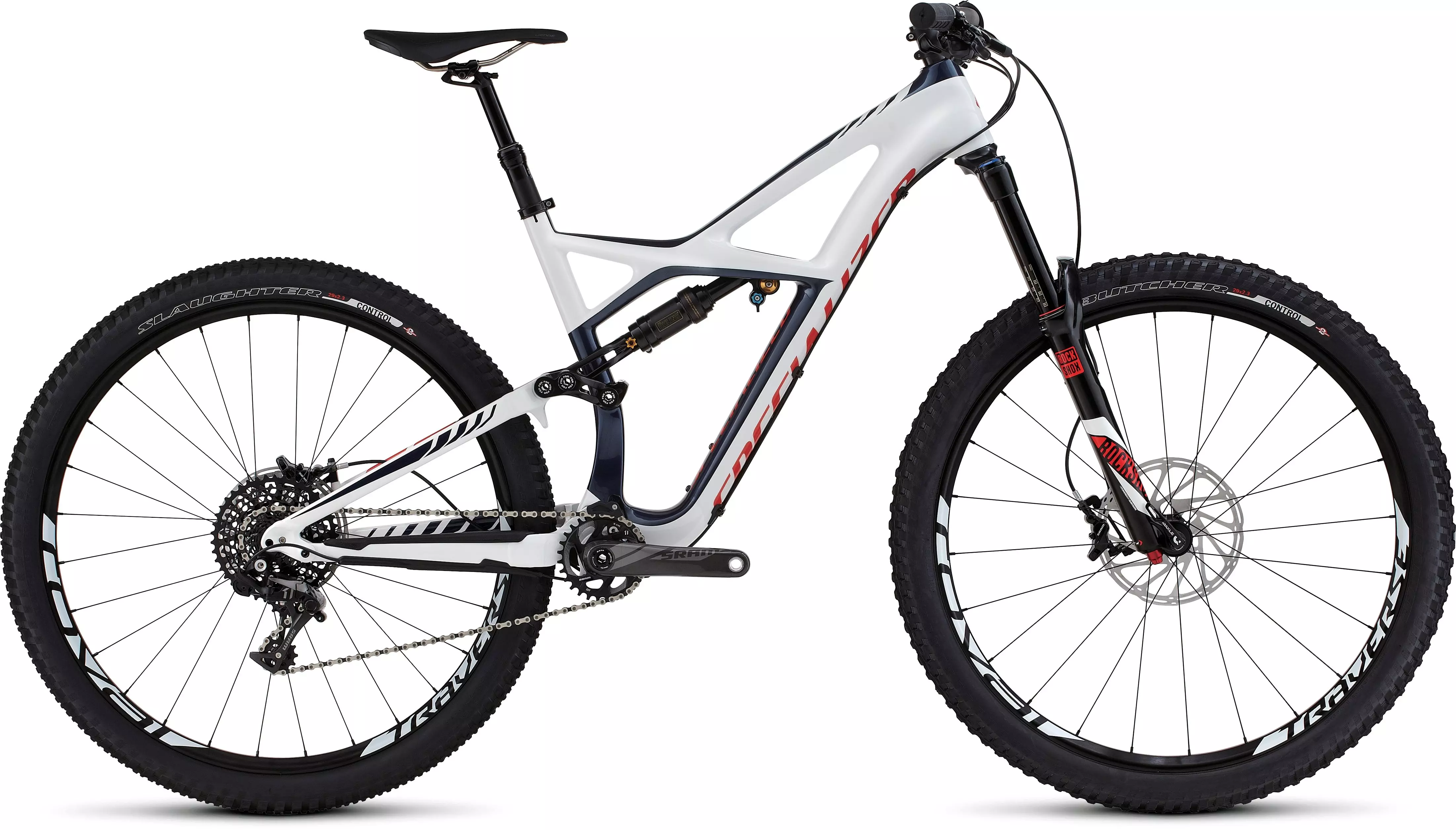

2016 Enduro Expert Carbon 29

5

1 Reviews

Whether you're racing enduro or riding all mountain, your bike needs to combine the…

Product Details

Add Icon

Whether you're racing enduro or riding all mountain, your bike needs to combine the trail manners of a DH bike with the climbing efficiency of a trail bike. Needless to say, getting this in one long-travel trail bike is easier said then done. That is, until the Enduro FSR Expert Carbon 29. To keep the weight down for both climbing and handling, the frame is constructed from our top-tier FACT IS-X 11m carbon fiber. This material comes with the added benefit of being incredibly stiff, which is balanced out by our 29 Geometry's roomy top tube, short chainstays, slack head tube, and longer wheelbase. Add it all up, and you get a lively ride that's incredibly responsive on both climbs and descents. And to further ensure top-level performance on the way down, this geo is mated with 160mm of plush travel up front and 155mm at rear. Handling suspension duties out back is the revolutionary, air-sprung Öhlins single tube rear shock. And for the build, the Enduro spares no expense at hitting the pinnacle of performance, with a mix of SRAM X1 and X01 for shift and drivetrain duties, powerful Guide RS brakes, hand-built Roval wheels, and the venerable RockShox Pike RC 29 fork.

  • FACT IS-X 11m carbon fiber chassis w/ M5 alloy rear end stands as the pinnacle of lightweight, efficient, and tough trail performance. It's been built off our 29 Geometry in order to provide an aggressive, well-rounded ride. And with internal Command Post IR routing and full cartridge bearing pivots, you get a bike that's clean, dependable, and ready for anything that trail has to offer.

  • RockShox Pike RC 29 fork features a 15mm Maxle Ultimate thru-axle, compression adjust, and 160mm of plush travel to take on big hits and bumpy terrain with supreme confidence and efficiency.

  • Roval Traverse 29 alloy wheels feature an ultra-wide design that allows for greater tire volume to increase stability and control, while the aluminum construction ensures ample strength for all mountain and trail abuse.

  • Command Post IRcc seatpost features up to 125mm of micro-adjust height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents

  • The custom Öhlins single tube air shock at the rear features high- and low-speed compression, as well as low-speed rebound. You'll also find an extra-volume reservoir that allows for more oil, which results in more control and an ultra-plush ride quality.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT IS-X 11m carbon, 29 geometry, FACT IS construction, FACT carbon front triangle, M5 alloy rear triangle, tapered head tube, PF30 BB, internal Command Post IR routing, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 155mm travel

HEADSET

Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

Öhlins, single tube, 3rd Chamber air spring technology, adjustable compression & rebound damping, 215.9x57.2mm

FORK

RockShox Pike RC 29, Solo Air spring, 160mm travel, compression adjust, rebound adjust, tapered steerer, 46mm offset, 15mm Maxle Ultimate thru-axle

WHEELS

RIMS

Roval Traverse 29, alloy, disc, 29mm inner width, 24/28H

FRONT HUB

Roval Traverse, 15/20mm thru-axle, 24h

REAR HUB

Roval Traverse 142+, SRAM XX1 XD driver body, 12mm thru-axle, 28h

SPOKES

DT Swiss Revolution

FRONT TIRE

Butcher Control 2Bliss Ready, 29x2.3"", 60TPI, 2Bliss Ready, folding bead

REAR TIRE

Slaughter Control 2Bliss Ready, 29x2.3""60TPI, folding bead

INNER TUBES

Standard, Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM X01 rear derailleur, X-Horizon, 11-speed

SHIFT LEVERS

SRAM X1, 11-speed, trigger

CASSETTE

SRAM X01 cassette, 11-speed, 10-42t

CHAIN

SRAM PC-X1 chain, PowerLock, 11-speed

CRANKSET

Custom SRAM S-2200, carbon, PF30 spindle, 30T, 94mm BCD spider

BOTTOM BRACKET

SRAM PF30, OS press-in bearings

COCKPIT

SEATPOST

Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm of travel, M/L/XL: 125mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 45/60/75/90/105mm

HANDLEBARS

Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 780mm width, 31.8mm clamp

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Expert, hollow Ti rails, 143mm

BRAKES

FRONT BRAKE

SRAM Guide R lever, hydraulic disc, metallic pads, Guide RS caliper, 200mm Centerline rotor

REAR BRAKE

SRAM Guide RS lever, hydraulic disc, metallic pads, 180mm Centerline rotor, Guide S4 caliper

BRAKE LEVERS

SRAM Guide RS, alloy lever, reach adjust

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
0

Rider Reviews

5

1 Reviews



Perfect for competition!

Takes the heaviest trails and feels like you fly over the forest!
