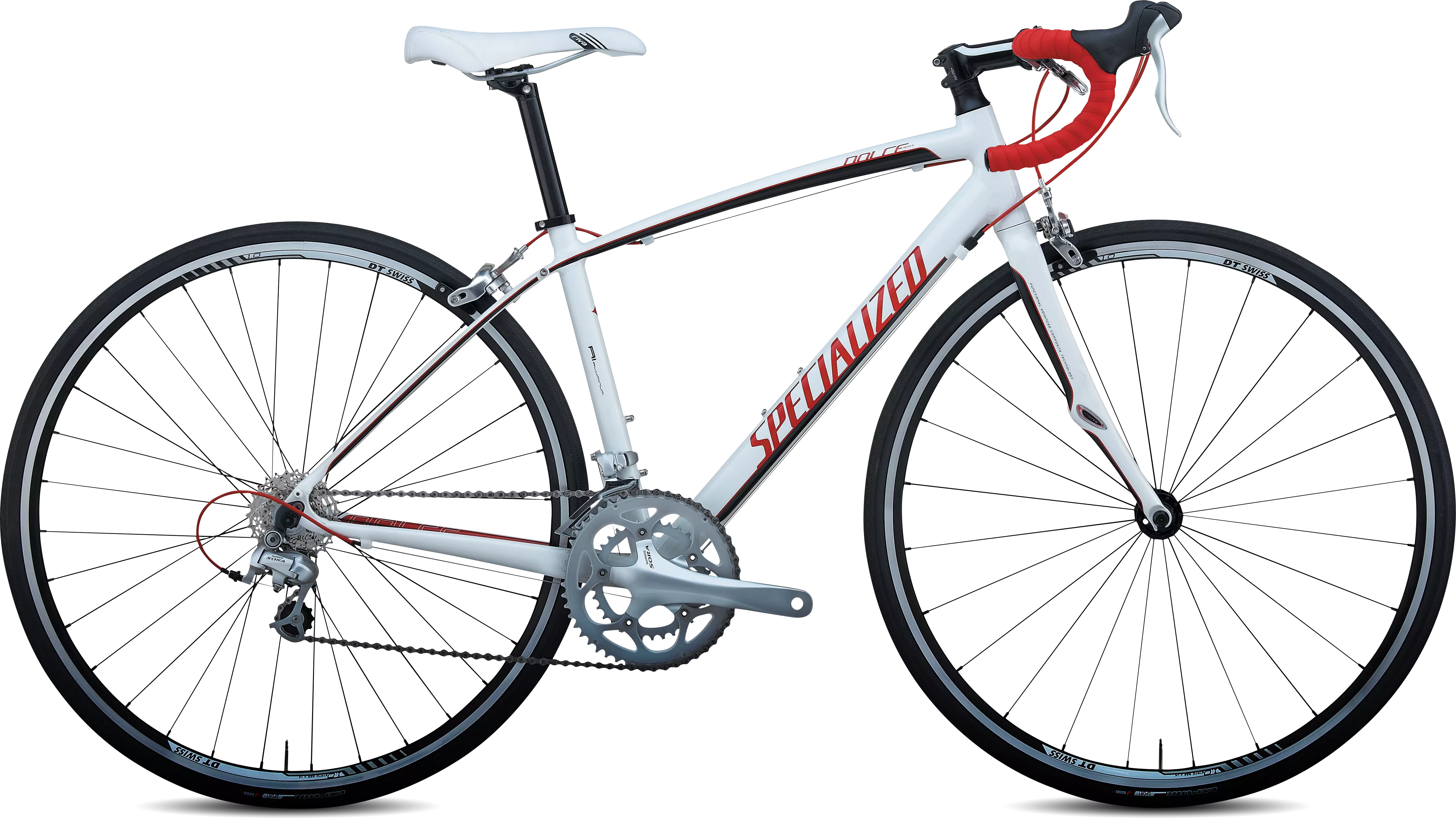

2012 Dolce Sport Compact
0 Reviews
Every key component of the Dolce was specifically selected for the female rider looking…
Product Details
Every key component of the Dolce was specifically selected for the female rider looking to tackle everything from the weekend workout to the upcoming century ride. The Dolce Sport Compact has an A1 alloy frame with women's endurance geometry and Zertz inserts for a responsive, yet forgiving ride. The Shimano Sora drivetrain provides reliable and quiet shifting.
A1 Premium Aluminum frame with women's endurance geometry and custom tubesets provide a responsive and stable ride
Lightweight FACT carbon fork for precision steering through tight turns, with Zertz inserts to absorb road chatter
DT Axis 1.0 wheelset is easily serviceable and significantly lighter than comparable-level wheelsets, these tough hoops roll smooth and fast
Body Geometry Women's Riva 155mm saddle features generous padding for all-day performance and comfort
Shimano Sora double crankset with forged alloy arms, plus Sora drivetrain for durability with reliable and quiet shifting
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully manipulated tubing, smooth welded, women's endurance geometry, 1-1/8"" integrated headset, rack eyelets
FORK
Specialized FACT carbon legs, alloy crown/steerer, Zertz inserts
HEADSET
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
DT Axis 1.0
REAR WHEEL
DT Axis 1.0
FRONT TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c
REAR TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
Shimano Sora STI, 9-speed
FRONT DERAILLEUR
Shimano Sora
REAR DERAILLEUR
Shimano Sora
CASSETTE
Shimano HG-50, 9-speed, 12-27t
CRANKSET
Shimano Sora compact
CHAINRINGS
50/34
BOTTOM BRACKET
Cr-Mo axle, 68mm x 113mm
CHAIN
KMC X9 nickel plate, reusable Missing Link
COCKPIT
HANDLEBARS
Specialized Women's Comp, alloy, shallow drop
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized Roubaix wrap w/ 2.5 gel pads
SADDLE
Body Geometry Women's Riva, 155mm
SEATPOST
New Specialized Sport, alloy, 27.2mm
BRAKES
FRONT BRAKE
Tektro dual-pivot, cartridge pads
REAR BRAKE
Tektro dual-pivot, cartridge pads
BRAKE LEVERS
Secondary brake lever
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 44 | 48 | 51 | 54 | 57 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 75.75° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 120mm | 130mm | 140mm | 165mm | 190mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70.25° | 71.25° | 71.5° | 72° | 72° |
| Chain-Stay Length | 412mm | 415mm | 415mm | 415mm | 417mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 515mm | 532mm | 556mm |
| Front-Center | 575mm | 580mm | 586mm | 584mm | 604mm |
| Handle-Bar Width | 360mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 684mm | 711mm | 733mm | 762mm | 793mm |
| Seat-Tube Length, B-B Center to Top | 376mm | 392mm | 426mm | 456mm | 481mm |
| Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Stack | 516mm | 529mm | 540mm | 566mm | 588mm |
| Reach | 358mm | 366mm | 372mm | 368mm | 381mm |
| Trail | 68mm | 62mm | 60mm | 59mm | 59mm |
| Wheelbase | 976mm | 983mm | 990mm | 988mm | 1011mm |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm |
