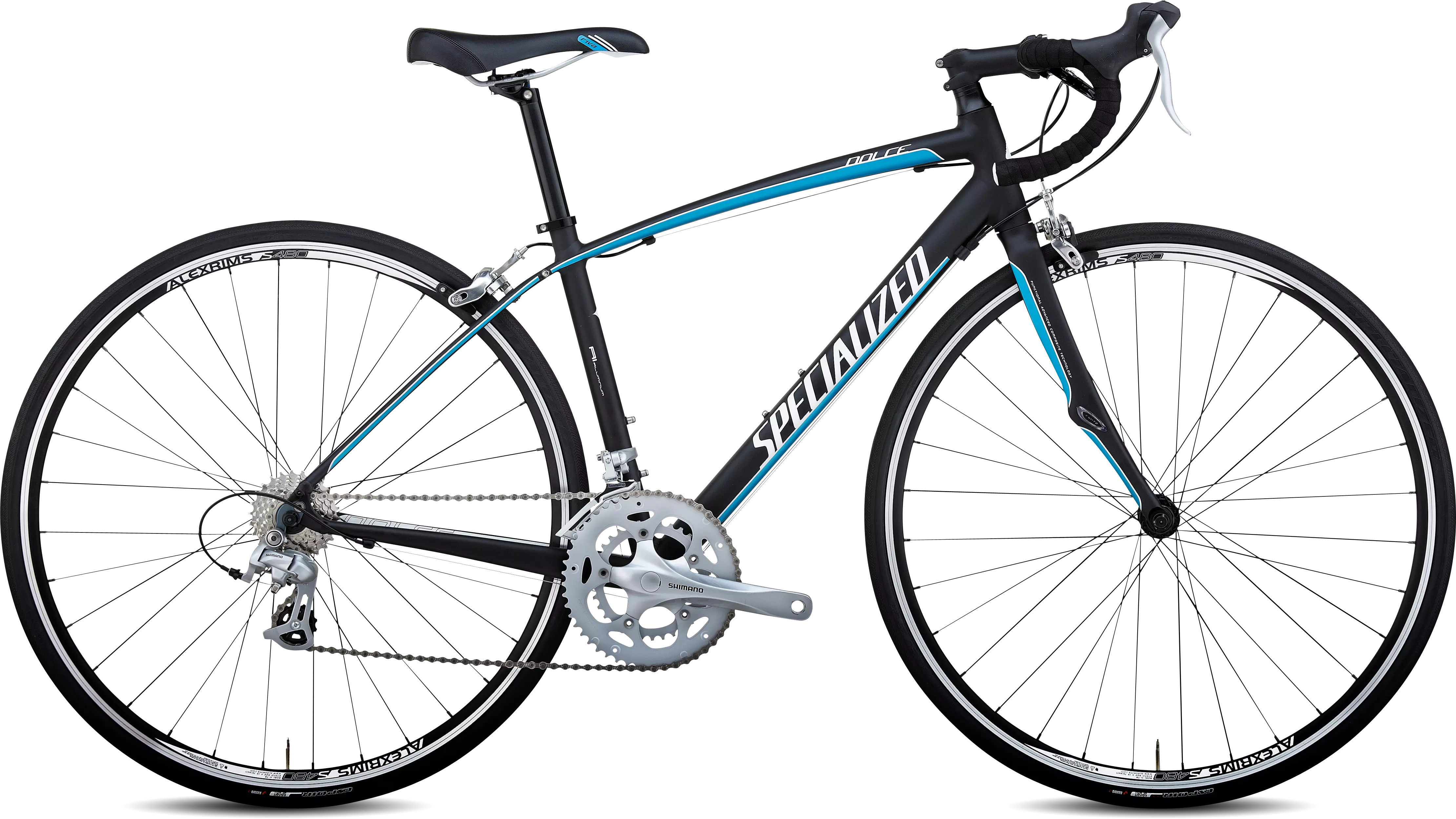

2012 Dolce Compact

0 Reviews

Every key component of the Dolce was specifically selected for the female rider looking…

Product Details

Add Icon

Every key component of the Dolce was specifically selected for the female rider looking to tackle everything from the weekend workout to the upcoming century ride. The Dolce Compact has an A1 alloy frame with women's endurance geometry and Zertz inserts for a responsive, yet forgiving ride. The new Shimano Tiagra compact drivetrain provides reliable and quiet shifting

  • A1 Premium Aluminum frame with women's endurance geometry and custom tubesets provide a responsive and stable ride

  • Lightweight FACT carbon fork for precision steering through tight turns, with Zertz inserts to absorb road chatter

  • Durable, double-walled 700c alloy rims can handle varied terrain

  • Body Geometry Women's Riva 155mm saddle features generous padding for all-day performance and comfort

  • Shimano 2300 drivetrain for reliable and quiet shifting

  • Quality Shimano compact crankset with removable rings

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully manipulated tubing, smooth welded, women's endurance geometry, 1-1/8"" integrated headset, rack eyelets

FORK

Specialized FACT carbon legs, alloy crown/steerer, Zertz inserts

HEADSET

1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

SEAT BINDER

Alloy, 31.8mm

WHEELS

RIMS

Alex S480, 32h

FRONT HUB

Forged aluminum, sealed bearing, QR, 32h

REAR HUB

Forged aluminum, double-sealed, cassette, QR, 32h

SPOKES

Stainless 14g

FRONT TIRE

Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c

REAR TIRE

Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x25c

INNER TUBES

Lightweight, presta

DRIVETRAIN

SHIFT LEVERS

Shimano 2300 STI

FRONT DERAILLEUR

Shimano 2300

REAR DERAILLEUR

Shimano 2300

CASSETTE

Shimano HG-50, 8-speed, 13-26t

CRANKSET

Shimano 2300 compact

CHAINRINGS

50/34

BOTTOM BRACKET

Cr-Mo axle, 68mm x 113mm

CHAIN

KMC Z-51 nickel plate

COCKPIT

HANDLEBARS

Specialized Women's Comp, alloy, shallow drop

STEM

Alloy, CP bolt,12-degree, 31.8mm

TAPE

Specialized Roubaix wrap w/ 2.5 gel pads

SADDLE

Body Geometry Women's Riva, 155mm

SEATPOST

New Specialized Sport, alloy, 27.2mm

BRAKES

FRONT BRAKE

Tektro forged alloy, dual Teflon pivot

REAR BRAKE

Tektro forged alloy, dual Teflon pivot

BRAKE LEVERS

Secondary brake lever

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
4448515457
Seat-Tube Angle75.75°75.75°75.5°74°73.5°
Head-Tube Length120mm130mm140mm165mm190mm
Seat-Post Length300mm350mm350mm350mm350mm
Head-Tube Angle70.25°71.25°71.5°72°72°
Chain-Stay Length412mm415mm415mm415mm417mm
Top-Tube Length, Horizontal498mm506mm515mm532mm556mm
Front-Center575mm580mm586mm584mm604mm
Handle-Bar Width360mm380mm400mm400mm420mm
Stand-Over Height684mm711mm733mm762mm793mm
Seat-Tube Length, B-B Center to Top376mm392mm426mm456mm481mm
Fork Rake51mm51mm51mm49mm49mm
B-B Drop73mm73mm73mm73mm71.5mm
Stack516mm529mm540mm566mm588mm
Reach358mm366mm372mm368mm381mm
Trail68mm62mm60mm59mm59mm
Wheelbase976mm983mm990mm988mm1011mm
Crank Length165mm165mm170mm170mm175mm
Stem Length80mm80mm90mm100mm100mm
