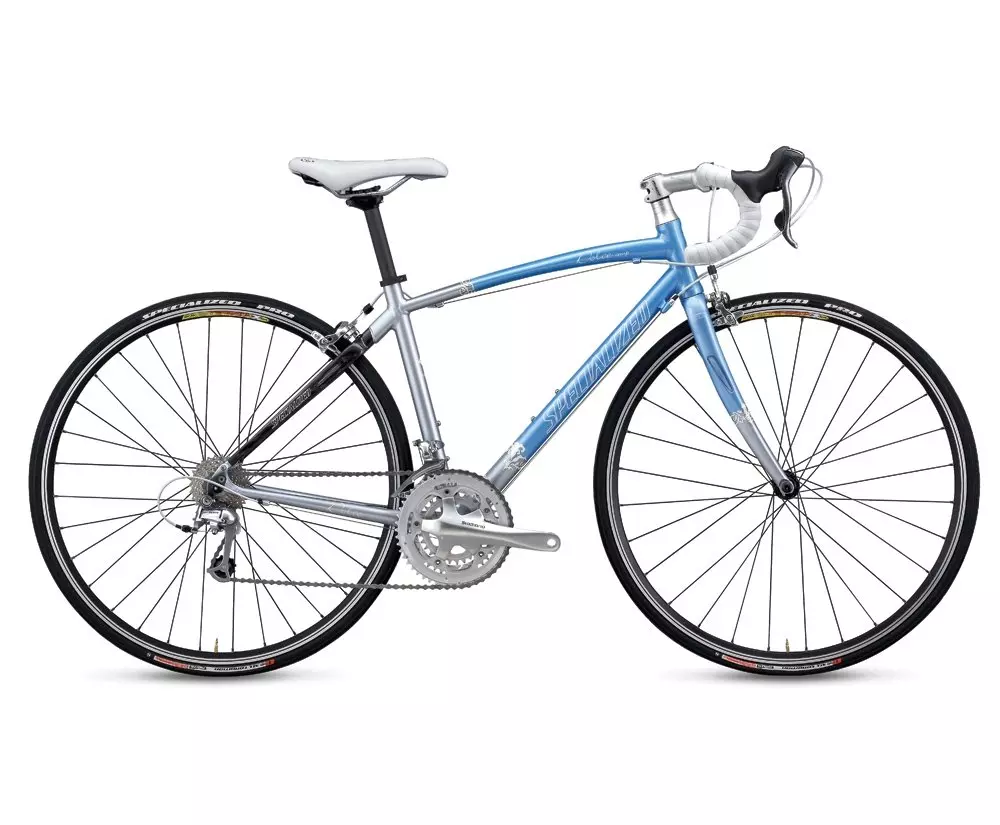

2009 Dolce Comp Triple

0 Reviews

Whatever pace you prefer, the Dolce gives you all the function of a racing rig with…

Product Details

Whatever pace you prefer, the Dolce gives you all the function of a racing rig with more stability, comfort and ease. From fledgling roadies to the social rider, you can do it all with one sweet and smooth ride.

The Specialized Dolce uses fully manipulated E5 aluminum tubing for a fast ride and perfect fit. FACT carbon seatstays with Zertz inserts absorb stamina-robbing vibrations.
The Allez carbon fork soaks up road vibration, provides laser-accurate steering, and is ultra light.
The Comp-Set stem combines a 12-degree rise with an oversized 31.8mm bar clamp, for comfortable, accurate steering.
Our Women’s Pro handlebar features a short-reach drop and ergonomic shape for long-term comfort.
The Shimano 105 10-speed STI brake/shift levers give crisp shifts and effortless braking, plus, they’re Flight Deck compatible.

Technical Specifications

FRAMESET

FRAME

Dolce E5 Manipulated Alloy, smooth weld Designs for Women compact design, FACT carbon seatstays w/ Zertz inserts

FORK

Specialized FACT carbon, carbon fiber legs, alloy steerer and crown w/ Zertz inserts

HEADSET

Specialized Mindset Plus, 1-1/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers

SEAT BINDER

Specialized alloy 31.8mm

WHEELS

FRONT TIRE

Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket

REAR TIRE

Specialized All Condition Pro, 700x23c, aramid bead, 120TPI w/ Flak Jacket

INNER TUBES

Specialized standard presta tube

RIMS

Mavic CXP22 rim, alloy triple-wall, machined sidewalls, 28/32h w/ eyelets

FRONT HUB

Specialized forged alloy, 28h, sealed ball bearings, QR

REAR HUB

Specialized forged alloy, 32h, double sealed ball bearings, cassette, QR

SPOKES

DT Champion, stainless 14g w/ ProLoc brass nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105, 31.8mm clamp, bottom pull

REAR DERAILLEUR

Shimano 105, long cage

SHIFT LEVERS

Shimano 105, 10-speed STI, flight deck compatible

CASSETTE

Shimano 105, 10-speed, 12-27t

CHAIN

Shimano 105, 10-speed

CRANKSET

Shimano Triple R-553

CHAINRINGS

50 x 39 x 30t

BOTTOM BRACKET

Shimano FC-4500

COCKPIT

STEM

Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

HANDLEBARS

Specialized Womens, 2014 alloy, short-reach drop, ergonomic shaping, 31.8mm

TAPE

Women's Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding

SADDLE

Body Geometry Lithia Women's, tuned density foam w/ gel padding, Cr-Mo rails

SEATPOST

Specialized carbon wrapped, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

REAR BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

BRAKE LEVERS

Shimano 105, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	56
Ground-Top	73mm	73mm	73mm	73mm	71.5mm
Seat-Tube Angle	66°	62°	59°	59°	59°
Head-Tube Length	165mm	165mm	170mm	170mm	172.5mm
Head-Tube Angle	574°	579°	582°	588°	595°
Chain-Stay Length	51mm	51mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	76mm	75.75mm	75.5mm	74mm	73.5mm
Front-Center	115mm	125mm	135mm	160mm	180mm
Handle-Bar Width	300mm	300mm	350mm	350mm	350mm
Stand-Over Height	75mm	75mm	90mm	100mm	100mm
Seat-Tube Length, B-B Center to Top	412mm	415mm	415mm	415mm	417mm
Fork Rake	974mm	983mm	986mm	992mm	1002mm
B-B Drop	70.5mm	71.25mm	72mm	72mm	72mm
Stack	400mm	430mm	450mm	480mm	500mm
Reach	496mm	506mm	518mm	537mm	548mm
Trail	699mm	722mm	738mm	763mm	783mm
Wheelbase	380mm	380mm	400mm	400mm	420mm
