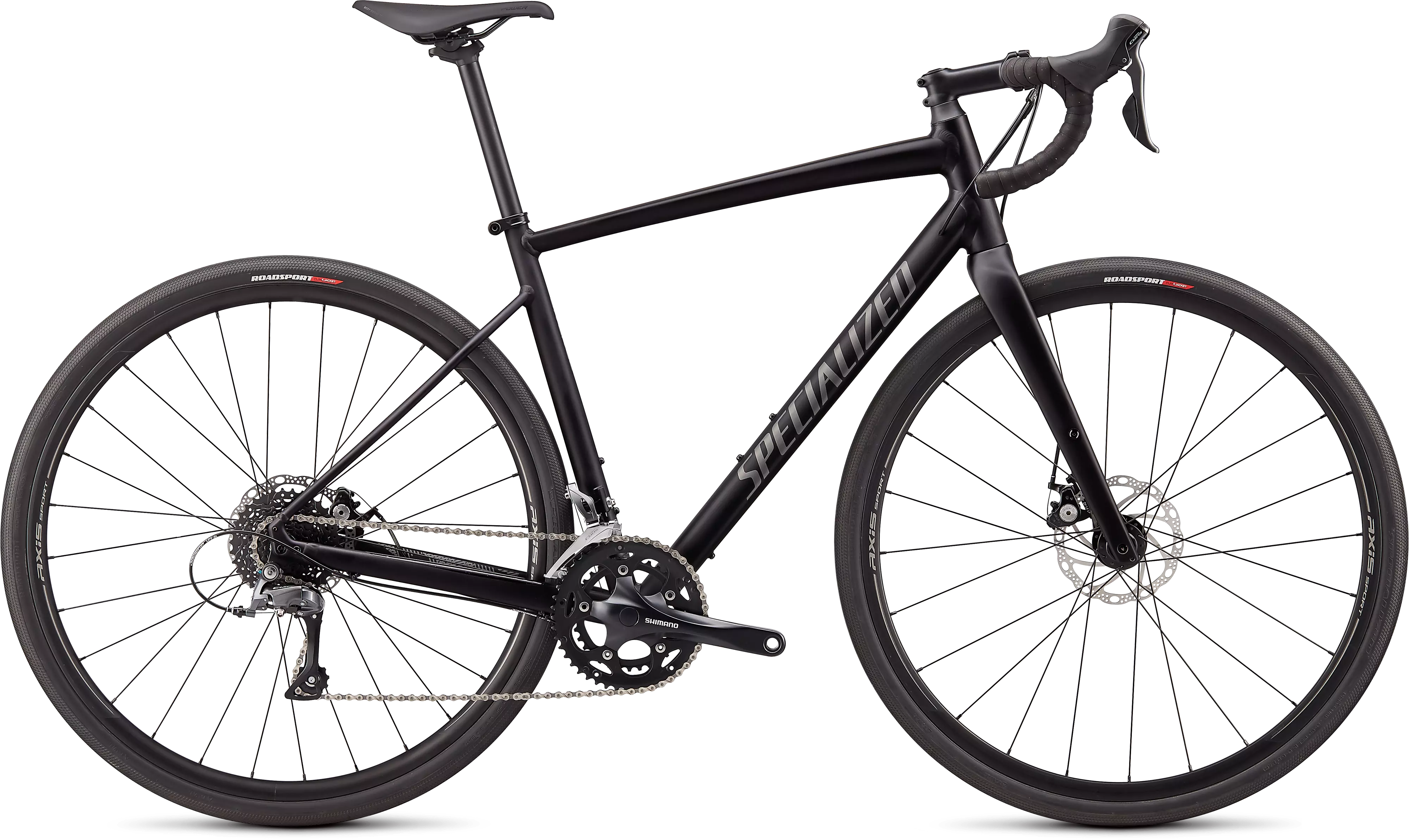

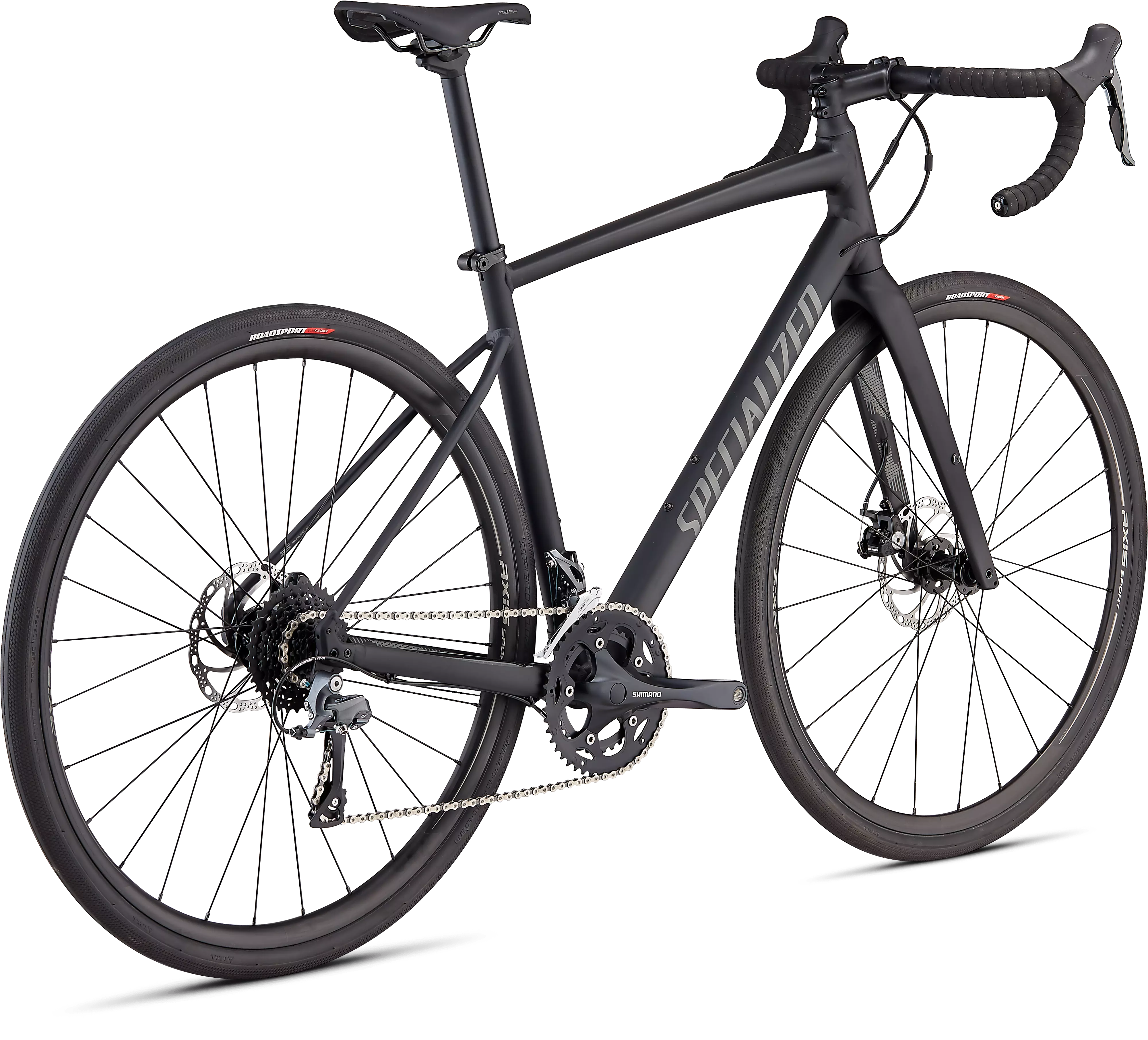

2020 Diverge E5

4.7

3 Reviews

While the real fun starts where the road ends, you still need a bike that'll get…

Product Details

Add Icon

While the real fun starts where the road ends, you still need a bike that'll get you there—one bike that shreds flowy singletrack, gravel, and traditional roads with equal authority. A more capable road bike won’t cut it, nor will a more road-worthy 'cross bike for that matter. No, you need a dedicated gravel bike like the Diverge. First and foremost, it's fun and always down for a good time, but with our fast and stable Open Road Geometry and plenty of tire clearance, it redefines the possibilities for adventure on a drop-bar bike.

We wanted to ensure that your new Diverge E5 rides comfortably, shifts crisply, and brakes smoothly for years to come, so you'll find a Shimano Claris 8-speed groupset, hassle-free mechanical disc brakes, our fan-favorite Power Sport Saddle, and a durable Axis Sport Disc wheelset that's been cased in our fast-rolling, 35mm Roadsport tires with built-in flat protection.

  • The Diverge has everything you need for pretty much any pedal-powered adventure—whether it's gravel racing, bikepacking, or weekend shredding. Our Premium E5 Aluminum frameset features our comfortable and confident Open Road Geometry, making it the ultimate tool for your next ride.

  • You can think of the Diverge's geometry as a road version of a modern trail bike. It provides playful handling and predictable steering for endless dirt skids and mid-corner drifts, but keeps stiffness up to snuff for your inner-racer. Along with a bottom bracket that's over a half-centimeter lower than the previous Diverge, we also slacked-out the head tube angle, shortened the chainstays, and made a shorter wheelbase. The result? A bike that performs equally well over both the dirt and road.

  • The full FACT carbon fiber fork keeps overall weight low and takes the sting out of road imperfections with ease.

Technical Specifications

Add Icon

COCKPIT

Handlebars

Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp

Saddle

Body Geometry Power Sport, hollow Cr-Mo rails

SeatPost

Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware

Stem

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

Tape

Specialized S-Wrap

Seat Binder

Diverge rack-mount seat collar

DRIVETRAIN

Shift Levers

Shimano Claris 2000, 8-speed

Front Derailleur

Shimano Claris, 8-speed, braze-on

Rear Derailleur

Shimano Claris, 8-speed

Cassette

SunRace, 8-speed, 11-34t

Crankset

Shimano Claris R200

Chainrings

50/34T

Bottom Bracket

BSA, 68mm, square-taper

Chain

KMC X8 w/ Missing Link™, 8-speed

WHEELS & TIRES

Front Wheel

Axis Sport Disc

Rear Wheel

Axis Sport Disc

Front Tire

Specialized Roadsport, 60TPI, wire bead, Flak Jacket protection, 700x35mm

Inner Tubes

Presta valve, 48mm

Rear Tire

Specialized Roadsport, 60TPI, wire bead, Flak Jacket protection, 700x35mm

Suspension

Fork

Specialized FACT carbon, flat-mount disc, 12x100mm thru-axle

BRAKES

Rear Brake

Tektro Mira, flat-mount, mechanical disc

Front Brake

Tektro Mira, flat-mount, mechanical disc

ACCESSORIES

Pedals

REMOVE

SWAT

Fender Clamp Adaptor

FRAMESET

Frame

Specialized E5 Premium Aluminum, Open Road Geometry, threaded BB, 12x142mm thru-axle, flat-mount disc

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
44.048.052.054.056.058.061.0
Crank Length165mm165mm170mm170mm175mm175mm175mm
Stem Length70mm80mm90mm100mm100mm110mm110mm
Handlebar Width360mm380mm400mm420mm420mm440mm440mm
Seatpost Length350mm350mm350mm400mm400mm400mm400mm
Saddle Width155mm155mm155mm143mm143mm143mm143mm
Stack553mm554mm560mm577mm598mm624mm647mm
Reach357mm365mm372mm378mm384mm390mm397mm
Head Tube Length125mm125mm130mm143mm163mm190mm213mm
Head Tube Angle70.5°70.8°71°71.9°72.5°72.5°72.8°
BB Height265mm265mm265mm265mm265mm265mm265mm
BB Drop85mm85mm85mm85mm85mm85mm85mm
Trail66mm64mm62mm62mm58mm58mm56mm
Fork Length, Full390mm390mm390mm390mm390mm390mm390mm
Fork Rake/Offset55mm55mm55mm50mm50mm50mm50mm
Front Center587mm593mm600mm598mm604mm618mm629mm
Chainstay Length422mm422mm422mm424mm424mm424mm424mm
Wheelbase994mm1000mm1007mm1007mm1014mm1028mm1039mm
Top Tube Length, Horizontal516mm524mm532mm549mm561mm575mm589mm
Bike Standover Height691mm712mm734mm761mm783mm810mm837mm
Seat Tube Length370mm405mm440mm473mm500mm525mm555mm
Seat Tube Angle74°74°74°73.5°73.5°73.5°73.5°
Geometry

Rider Reviews

4.7

3 Reviews



I would buy this bike again but you'll need some mods

I bought this bike to use on my Wahoo Kickr as well as to ride when the weather goes south in the fall. It suits those needs though, honestly speaking, the drive train has to be replaced with better components - CLARIS is not up to contemporary standards. I swapped out the CLARIS group set with a SRAM Rival set - replacing the cranks, BB, 1X chainring, rear derailleur, cassette and shift / brake levers (kept the TEKTRO mechanical brakes as I don't need any real stopping power on the trainer or on the inclement weather rids this bike will see). Massive improvement. Now I've purchased some gently used SLX24 wheels and I should be set for a while. The aluminum frame and geometry work well and I don't need to take my S-Works Diverge on and off of the trainer.


Name:
Markus

Helpful?

Parfait

Un excellent rapport/qualité/prix Ce vélo est très confortable et adapté pour les sorties en montagne même si on a pas ""de grosses cuisses""


Verified Buyer
Icon
Name:
Laurent

Helpful?

Parfait

Un excellent rapport/qualité/prix Ce vélo est très confortable et adapté pour les sorties en montagne même si on a pas "de grosses cuisses"


Name:
Laurent

Helpful?
