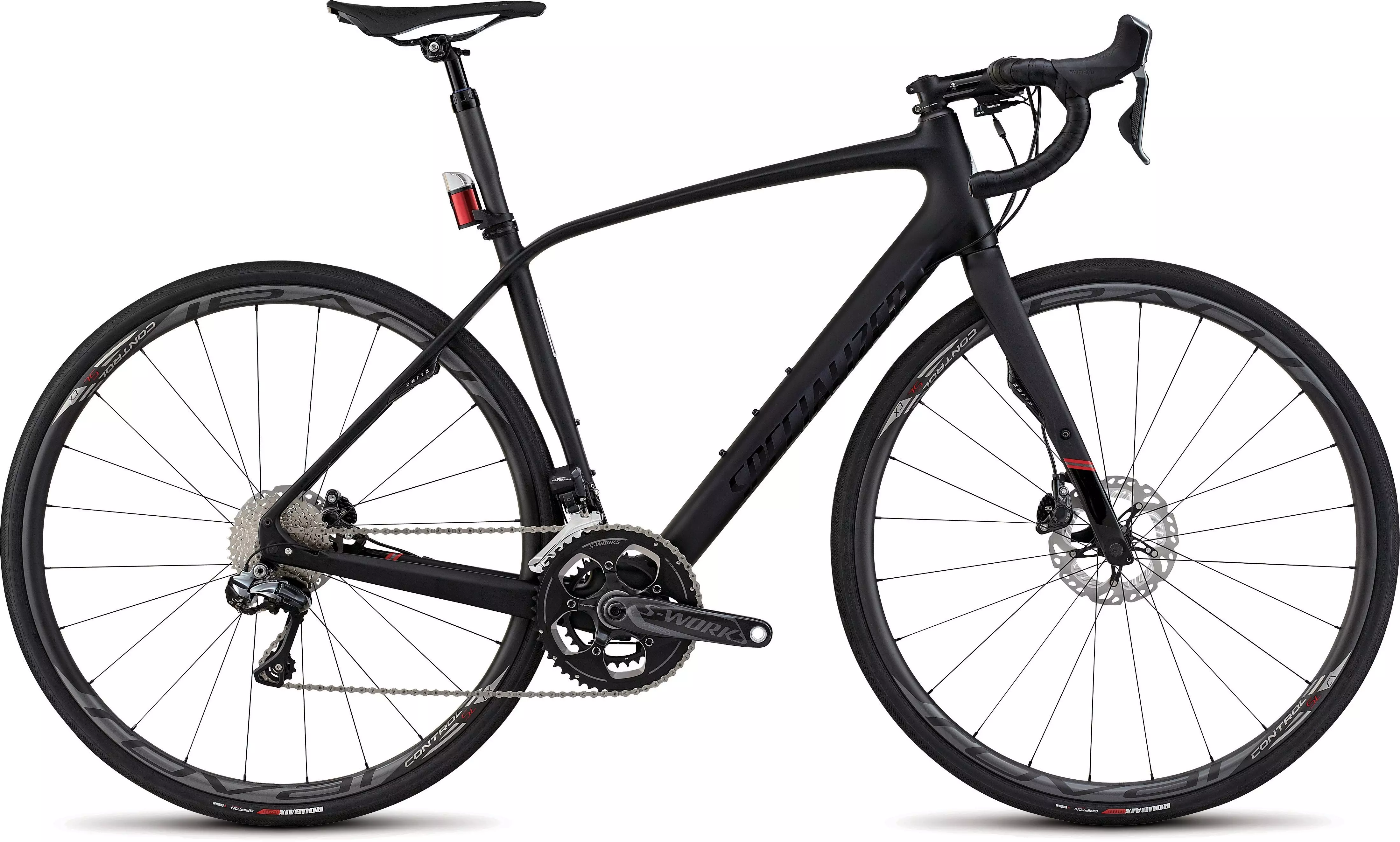

2015 Diverge Carbon Di2
0 Reviews
When the paved road stops the Diverge Carbon Di2 is just getting started. Whether…
Product Details
When the paved road stops the Diverge Carbon Di2 is just getting started. Whether it's a dirt road or navigating potholes on the road less traveled, the Diverge Carbon Di2 can handle it all. With hydraulic disc brakes, Shimano Ultegra Di2 drivetrain, and tuned frame and fork it's only limited by your imagination.
Specialized FACT 10r carbon frame w/ tapered headtube and OSBB for lightweight performance
Specialized FACT carbon fork for precise handling and steering
Specialized Roubaix Pro 700x30/32c tires w/ BlackBelt protection and Endurant casing for any road condition
Shimano 785 hydraulic disc brakes w/ Ice Tech resin pads for supreme stopping power
Shimano ST-R785 integrated electronic, hydraulic shifters for precise braking and shifting
S-Works FACT carbon crankset w/ OSBB delivers power and smooth shifting
Roval Control SL CX SCS wheels for all-conditions performance and low weight
Rear axle is 135mm wide with 12mm diameter, QR compatible with use of included adapter
Compatible with Specialized Plug + Play Fender Set
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10r carbon, tapered headtube, OSBB
FORK
Specialized FACT carbon w/ Zertz, tapered
HEADSET
1-1/8"", sealed cartridge bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
SEAT BINDER
Alloy, 31.2mm
WHEELS
FRONT WHEEL
Roval Control SL CX SCS, carbon
REAR WHEEL
Roval Control SL CX SCS, carbon
FRONT TIRE
Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32c
REAR TIRE
Specialized Roubaix Pro, 120TPI, folding bead, BlackBelt protection, Endurant casing, 700x30/32c
INNER TUBES
Standard, presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Ultegra Di2, 11-speed, braze-on
REAR DERAILLEUR
Shimano Ultegra Di2, 11-speed
SHIFT LEVERS
Shimano ST-R785, electronic, hydraulic disc
CASSETTE
Shimano Ultegra, 11-speed, 11-32
CHAIN
Shimano Ultegra, 11-speed
CRANKSET
S-Works FACT carbon, OSBB, 52/36
COCKPIT
STEM
S-Works SL, 6-degree rise, w/ Ti bolt
HANDLEBARS
S-Works SL Carbon, shallow drop, 125mm drop, 75mm reach
TAPE
Specialized Classic, w/ sticky gel, bar end plug
SADDLE
Body Geometry Phenom Pro, carbon rails, 143mm
SEATPOST
Command Post Carbon 35, internal routing, w/ remote lever, 27.2mm
BRAKES
FRONT BRAKE
Shimano BR-785, hydraulic disc, Ice Tech resin pads w/ fins
REAR BRAKE
Shimano BR-785, hydraulic disc, Ice Tech resin pads w/ fins
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball bearings, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 165mm | 200mm | 220mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 400mm | 400mm |
| Head-Tube Angle | 71.25° | 71.25° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 536mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 589mm | 595mm | 597mm | 607mm | 621mm | 629mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 714mm | 740mm | 764mm | 785mm | 829mm | 851mm |
| Seat-Tube Length, B-B Center to Top | 418mm | 447mm | 466mm | 485mm | 530mm | 555mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 77mm | 77mm | 75.5mm | 75.5mm | 74mm | 74mm |
| Stack | 525mm | 544mm | 564mm | 589mm | 621mm | 642mm |
| Reach | 378mm | 378mm | 380mm | 387mm | 391mm | 398mm |
| Trail | 63mm | 63mm | 58mm | 55mm | 55mm | 52mm |
| Wheelbase | 989mm | 995mm | 1000mm | 1011mm | 1028mm | 1039mm |
| Crank Length | 170mm | 170mm | 173mm | 173mm | 175mm | 175mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
