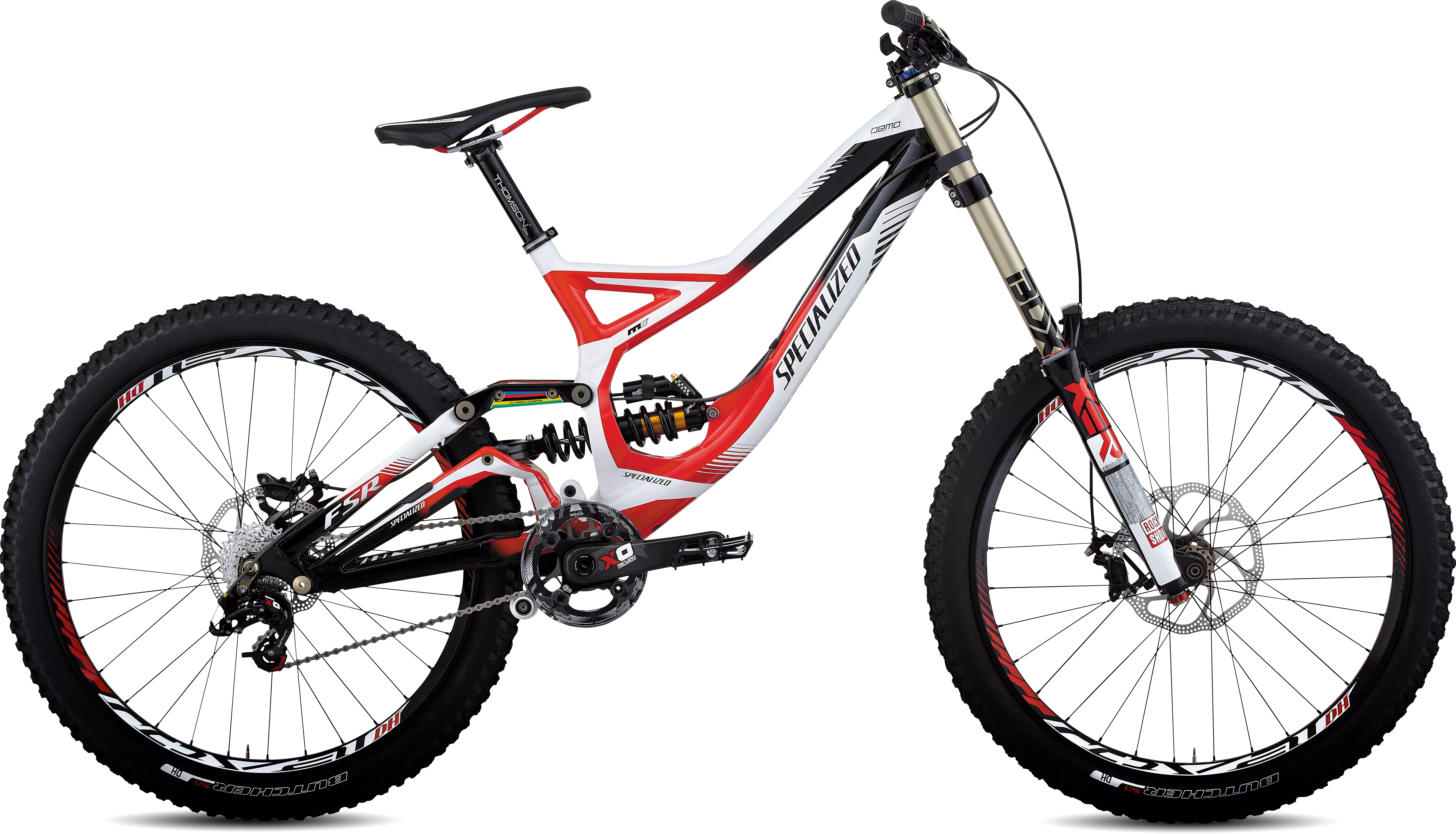

2012 Demo 8 II
5
2 Reviews
With two downhill World Championships already to its name, the Demo 8 II is the world's…
Product Details
With two downhill World Championships already to its name, the Demo 8 II is the world's fastest downhill machine. With 200mm of travel, a Cane Creek Double Barrel shock and a RockShox World Cup fork, it oozes premium downhill performance.
Cane Creek Double Barrel coil shock provides a downhiller's dream of externally adjustable high-and-low-speed rebound and compression settings for maximum control over challenging terrain
RockShox Boxxer World Cup has 200mm of air-sprung travel, and features extreme tuning capabilities with high-and-low-speed compression and rebound adjustments, and a 20mm Maxle thru-axle
New Roval DH rims are 30mm wide, laced with DT Swiss spokes to Specialized hubs with a 20mm front thru-axle and 150x12mm rear thru-axle hub creates a reliable, and super strong wheelset that easily handles the biggest hits
SRAM X0 DH crankset with carbon arms, 36T chainring and Gamut bashguard is built with speed and durability in mind
Custom Avid Code X0 hydraulic disc brakes for lightweight precision, modulation and power, plus carbon levers with tool-less reach
Manipulated M5 alloy FSR frame with Mag Link has 8" of rear wheel travel, an oversized, forged head tube, rear derailleur protector, with suspension linkage engineered for the world's toughest terrain
Renthal Fat Bar is 780mm wide for maximum control for riding the steepest descents, just like the Monster boys
SRAM X0 DH short cage derailleur and 10-speed 11-26t cassette provide lightweight and accurate shifting performance
Specialized Butcher DH 26 x 2.3" soft dual compound front and rear tires offer great traction with Monster Team approved tread, and a bombproof casing
Technical Specifications
FRAMESET
FRAME
M5 manipulated alloy, compact race design, 1-1/2"" forged HT, magnesium link, ISCG 05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel
HEADSET
1-1/2"" integrated for 1-1/8"" steerer, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
SUSPENSION
REAR SHOCK
Cane Creek Double Barrel, coil over w/piggy back, high/low speed compression and high/low speed rebound, 9.5x3"", XS: 300, S:350, M:400, L:450
FORK
RockShox Boxxer World Cup, Mission Control damper, alloy steerer, low/high speed compression and rebound adj. w/ bottom out control, 20mm Maxle DH thru-axle, 200mm travel
WHEELS
RIMS
Roval DH 26, 30mm wide w/eyelets, 32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 150mm, hollow 12mm Cr-Mo axle w/ RD guard, 32h
SPOKES
DT Swiss Competition 2.0/1.8/2.0mm stainless
FRONT TIRE
Specialized Butcher DH, DH casing, wire bead, soft dual-compound, 26x2.3""
REAR TIRE
Specialized Butcher DH, DH casing, wire bead, soft dual compound, 26x2.3""
INNER TUBES
Presta valve 26x2.4/2.75, 2.25mm thick
DRIVETRAIN
REAR DERAILLEUR
SRAM X0 DH, 10-speed, short cage
SHIFT LEVERS
SRAM X9, 10-speed, trigger, w/MatchMaker clamp
CASSETTE
SRAM PG-1050, 10-speed, 11-26t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
SRAM X0 DH, carbon arms, single ring, PF30 spindle, 165mm, w/Gamut P-30 chainguide
CHAINRINGS
36T thin alloy
BOTTOM BRACKET
Custom SRAM PF30 DH, 83mm shell
COCKPIT
SEATPOST
Thomson straight w/ 12º clamp, 367mm
STEM
Specialized Direct-Mount stem, 40mm length, 31.8mm, 4-bolt, forged
HANDLEBARS
Renthal Fat Bar, 780mm wide, 7º backsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Specialized DH, 8mm hollow Cr-Mo rails
BRAKES
FRONT BRAKE
Custom Avid Code X0 World Cup, hydraulic disc, tool-less reach, Code caliper, semi-metallic pad, stainless hardware, 200mm rotor
REAR BRAKE
Custom Avid Code X0 World Cup, hydraulic disc, tool-less reach, Code caliper, semi-metallic pad, stainless hardware, 180mm rotor
BRAKE LEVERS
Custom Avid X0, carbon blade, tool-less reach adj., w/MatchMaker clamp
ACCESSORIES
PEDALS
Specialized Benies, low profile with removable pins
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Ground-Top | 936mm | 936mm | 936mm | 936mm |
| Bottom Bracket Height - Low Setting | 343mm | 343mm | 343mm | 343mm |
| Top Tube Length (Horizontal) | 540mm | 560mm | 580mm | 597mm |
| Head Tube Height | 112mm | 112mm | 112mm | 112mm |
| Head Tube Angle - Low Setting | 64° | 64° | 64° | 64° |
| Seat Tube Angle (Actual) - Low Setting | 62° | 62° | 62° | 62° |
| Seat Tube Angle (Effective) - Low Setting | 76° | 76° | 76° | 76° |
| Top Tube Length (Actual) | 485mm | 504mm | 517mm | 530mm |
| Head Tube Angle - High Setting | 64.8° | 64.8° | 64.8° | 64.8° |
| Bottom Bracket Height - High Setting | 353mm | 353mm | 353mm | 353mm |
| Seat Tube Angle (Actual) - High Setting | 62.8° | 62.8° | 62.8° | 62.8° |
| Seat Tube Angle (Effective) - High Setting | 76.8° | 76.8° | 76.8° | 76.8° |
| Seat Tube Length - Center to Top | 394mm | 394mm | 419mm | 458mm |
| Wheel Base | 1151mm | 1171mm | 1191mm | 1208mm |
| Standover Height | 717mm | 717mm | 722mm | 731mm |
| Stack | 593mm | 593mm | 593mm | 593mm |
| Reach | 390mm | 410mm | 430mm | 447mm |
| Chainstay Length | 421mm | 421mm | 421mm | 421mm |
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 50mm | 50mm | 50mm | 50mm |
| Seatpost Length | 300mm | 300mm | 300mm | 300mm |
