2012 Demo 8 Frame

0 Reviews

The Demo 8 has two Downhill World Championships to its name, build up your own race…

Color:

Gloss Flo Red/Yellow/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

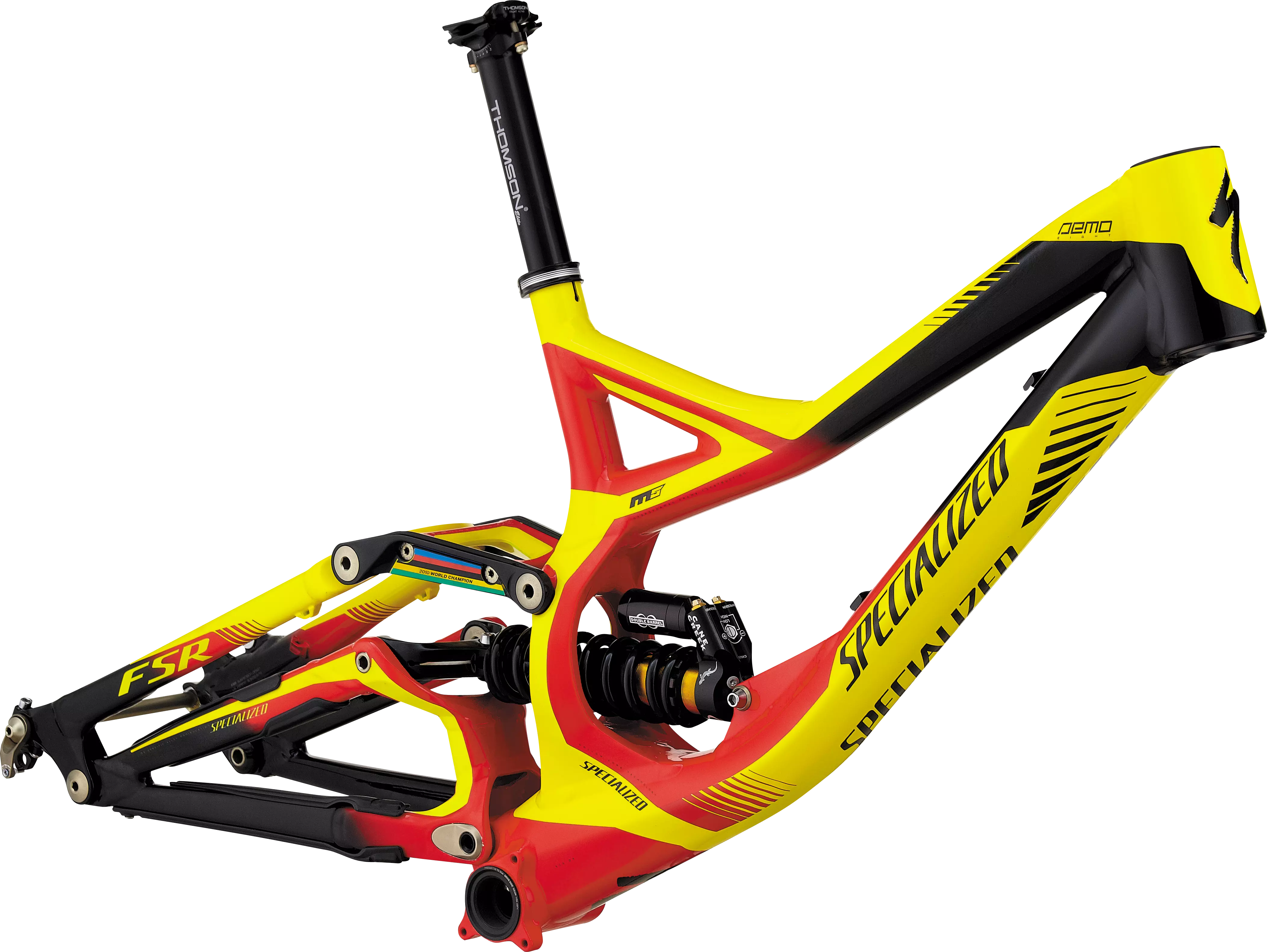

The Demo 8 has two Downhill World Championships to its name, build up your own race machine with this frameset. With 200mm of rear wheel travel, FSR suspension, Cane Creek Double Barrel shock and 1.5

Manipulated M5 alloy FSR frame with magnesium link has 8" of rear wheel travel, an oversized, forged head tube, rear derailleur protector, with suspension linkage engineered for the world's toughest terrain
Cane Creek Double Barrel coil shock provides a downhiller's dream of externally adjustable high-and-low-speed rebound and compression settings for maximum control over challenging terrain
Custom colorway designed by Troy Lee Designs for the world’s fastest bike, the Specialized Demo 8. Available for a limited time, only 250 produced worldwide.

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy, compact race design, 1-1/2"" forged HT, magnesium link, ISCG 05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel

HEADSET

1-1/2"" integrated for 1-1/8"" steerer, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Cane Creek Double Barrel, coil over w/piggy back, high/low speed compression and high/low speed rebound 9.5x3"", XS: 300, S:350, M:400, L:450

DRIVETRAIN

BOTTOM BRACKET

SRAM PF30 to BSA 83mm adapter

COCKPIT

SEATPOST

Thomson straight w/ 12º clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L
Ground-Top	936mm	936mm	936mm	936mm
Bottom Bracket Height - Low Setting	343mm	343mm	343mm	343mm
Top Tube Length (Horizontal)	540mm	560mm	580mm	597mm
Head Tube Height	112mm	112mm	112mm	112mm
Head Tube Angle - Low Setting	64°	64°	64°	64°
Seat Tube Angle (Actual) - Low Setting	62°	62°	62°	62°
Seat Tube Angle (Effective) - Low Setting	76°	76°	76°	76°
Top Tube Length (Actual)	485mm	504mm	517mm	530mm
Head Tube Angle - High Setting	64.8°	64.8°	64.8°	64.8°
Bottom Bracket Height - High Setting	353mm	353mm	353mm	353mm
Seat Tube Angle (Actual) - High Setting	62.8°	62.8°	62.8°	62.8°
Seat Tube Angle (Effective) - High Setting	76.8°	76.8°	76.8°	76.8°
Seat Tube Length - Center to Top	394mm	394mm	419mm	458mm
Wheel Base	1151mm	1171mm	1191mm	1208mm
Standover Height	717mm	717mm	722mm	731mm
Stack	593mm	593mm	593mm	593mm
Reach	390mm	410mm	430mm	447mm
Chainstay Length	421mm	421mm	421mm	421mm
Crank Length	165mm	165mm	165mm	165mm
Handlebar Width	750mm	750mm	750mm	750mm
Stem Length	50mm	50mm	50mm	50mm
Seatpost Length	300mm	300mm	300mm	300mm
