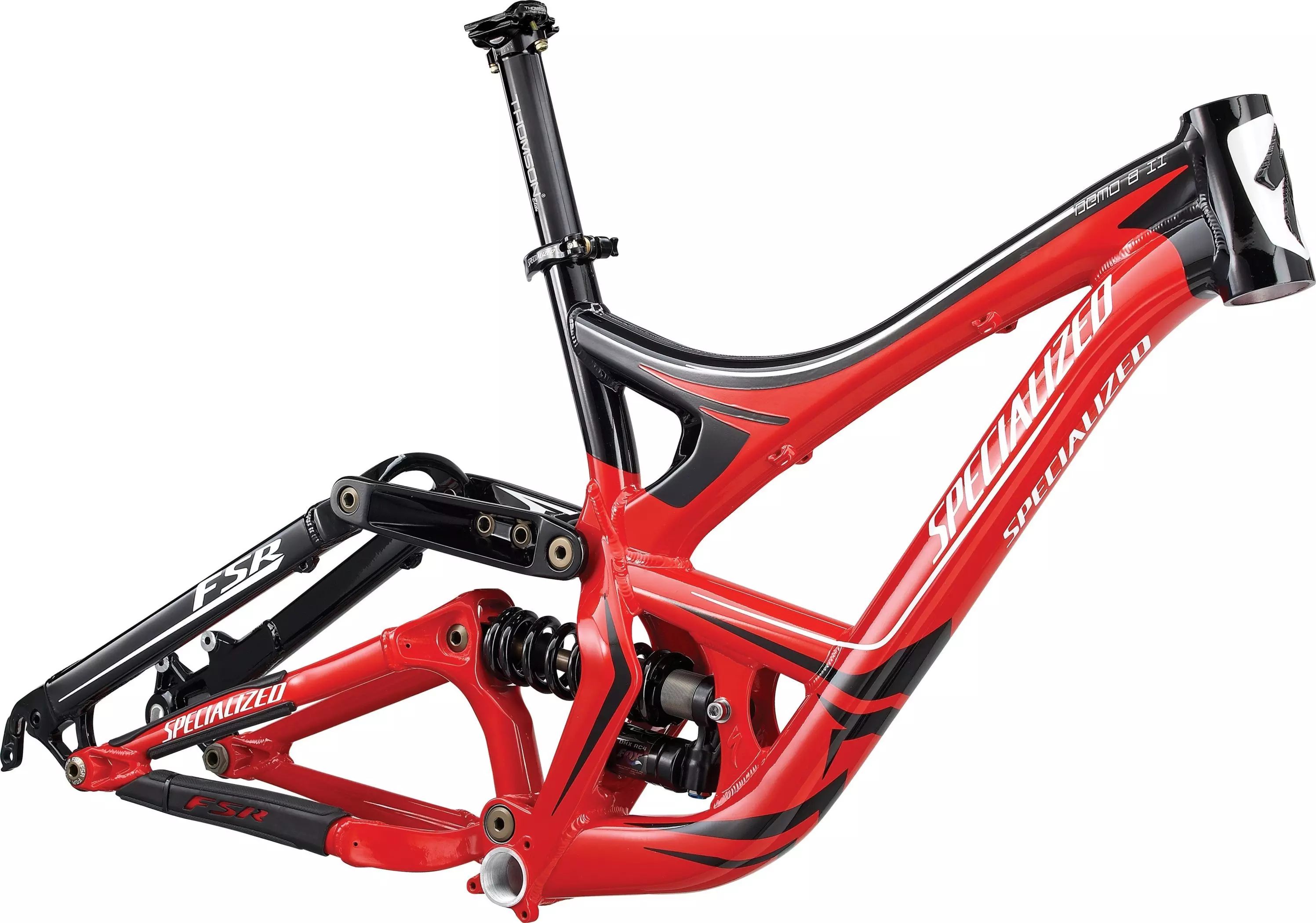

2010 Demo 8 Frame

0 Reviews

To celebrate Sam Hill winning the overall World Cup title, we are releasing 250…

Product Details

Add Icon

To celebrate Sam Hill winning the overall World Cup title, we are releasing 250 limited edition replica Demo 8 framesets—just like the rig Sam rode to victory in Schladming. Each frame is a numbered Sam Hill Signature Edition, and they will only be sold through Specialized dealers around the world. When they're gone, they're gone, so get yours quickly! Details: 2010 Demo geometry and set-up, frameset includes FOX DHX RC4 shock, head set w/adapters, and seat post & clamp.

  • Tough and agile Demo 8 FSR M5 alloy frame with 8" of front and rear wheel travel, oversized forged head tube and über-stout Fox components is engineered for DH domination

  • New for 2010 Fox DHX RC4 rear shock provides an elegant mix of granular adjustability, externally adjustable high and low-speed compression and bottom out control for high speed bump mastery

Technical Specifications

Add Icon

FRAMESET

FRAME

Demo 8 FSR M5 manipulated alloy, 8"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector

HEADSET

1.5"" 7050 alloy integrated for 1-1/8"" steerer

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized DHX RC4 coil 8.75x2.75"" for Demo 8, rebound adj., High and low speed compression adj. and bottom out control, S:450, M:500, L:550

COCKPIT

SEATPOST

Thomson straight w/ 12 degree clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SML
Ground-Top943mm943mm943mm
Bottom Bracket Height - Low Setting343mm343mm343mm
Top Tube Length (Horizontal)587mm607mm624mm
Head Tube Height120mm120mm120mm
Head Tube Angle - Low Setting64°64°64°
Seat Tube Angle (Actual) - Low Setting62.5°62.5°62.5°
Seat Tube Angle (Effective) - Low Setting73.5°73.5°73.5°
Top Tube Length (Actual)523mm532mm545mm
Seat Tube Length - Center to Top432mm432mm457mm
Wheel Base1175mm1195mm1212mm
Standover Height735mm734mm747mm
Stack600mm600mm600mm
Reach409mm429mm446mm
Chainstay Length421mm421mm421mm
Crank Length170mm170mm170mm
Handlebar Width750mm750mm750mm
Stem Length40mm40mm40mm
Seatpost Length367mm367mm367mm
Geometry
