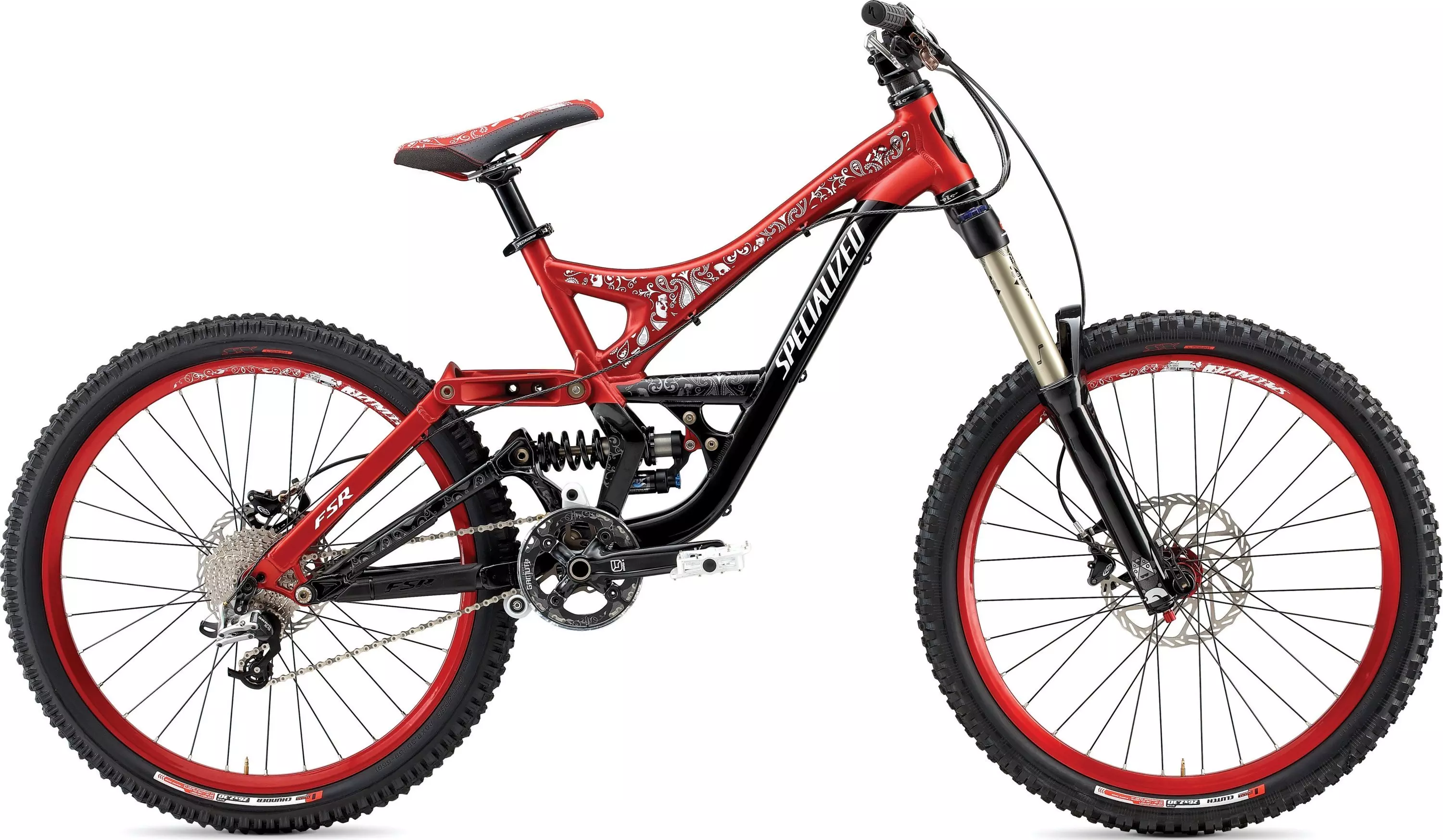

2010 Demo 7 I
0 Reviews
The downhill bike known for its huge 7" and 8" travel, solid components and ability…
Product Details
The downhill bike known for its huge 7" and 8" travel, solid components and ability to level big and burly terrain just got faster and more capable under the likes of Sam Hill and Brendan Fairclough of the Monster Energy Team. Based on their testing and input (and we think these guys know a thing or two about performance), we've redesigned the geometry of the Demo 8 to encourage nothing short of DH domination.
Specialized Clutch SX 26 x 2.3" front tire for railing high-speed turns and Chunder SX 26 x 2.3" rear tire for superior cornering stability
Avid Elixir R hydraulic brakes/levers with tool-free reach adjust and long-lasting metallic pads halt bombing runs with superb control and modulation
Fox DHX 4.0 coil shock with rebound, bottom-out and ProPedal adjust integrates with the Demo 7 frame for the maximum tunability required for demanding DH conditions
20mm thru-axle Maxle RockShox Totem IS coil-sprung fork features 180mm of travel with external low-speed compression and rebound damping adjusters for surefooted cockpit control
30mm-wide custom DT Swiss F550 rims with Champion 2mm stainless steel spokes excel on rocky downhill runs and other ruthless conditions, the front wheel spins on a 20mm thru-axle variable flange hub for the best combination of strength and weight, and the 10mm Cr-Mo axle rear hub with derailleur guard adds even greater durability
Technical Specifications
FRAMESET
FRAME
Demo 7 FSR M5 manipulated alloy, 7"" travel, asymetrical rear triangle, ISCG mount, adj. geometry, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector
HEADSET
1.5"" Threadless, lightweight 7050 alloy cups
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox DHX 4.0 coil 8.5x2.375"" for Demo 7, rebound adj., ProPedal, bottom out control, S:450, M:500, L:550
FORK
Rockshox Totem IS, Coil spring, 180mm travel, IS damper, external compression and rebound adj., 1.5"" alloy steerer, 20mm thru-axle w/ Maxle 360
WHEELS
RIMS
Custom DT Swiss F550, 30mm wide, 32h
FRONT HUB
Hi-Lo disc, 20mm thru-axle, 32h
REAR HUB
Thru axle 135mm, hollow 10mm Cr-Mo axle w/ RD guard
SPOKES
DT Swiss Champion 2mm stainless
FRONT TIRE
Specialized Clutch SX 26x2.3"", SX casing, aramid bead, dual compound
REAR TIRE
Specialized Chunder SX 26x2.3"", SX casing aramid bead, dual compound
INNER TUBES
Schraeder valve 26x2.4/2.75, 2.25mm thick
DRIVETRAIN
REAR DERAILLEUR
SRAM X-9, 9-speed, short cage
SHIFT LEVERS
SRAM X-7, aluminum trigger
CASSETTE
Shimano HG61, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
FSA Moto-X MegaExo, forged solid arms, 36t alloy ring with Gamut P-30 chain guide
CHAINRINGS
36t, alloy 4-bolt, compact 104mm pattern
BOTTOM BRACKET
FSA BB-7000 for Moto-X crank, 73mm shell
COCKPIT
SEATPOST
6061 butted alloy, two bolt no offset, 30.9mm
STEM
Specialized 1.5"", 35mm extension, OS 31.8, 4-bolt, forged
HANDLEBARS
Specialized Demo low-rise bar, 7050 alloy, 31.8mm, 750mm wide, 9 degree backsweep, 6 degree up sweep
GRIPS
Specialized waffle lock on grip with alloy end plugs
SADDLE
Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam
BRAKES
FRONT BRAKE
Custom Avid Elixir R hydraulic disc, reach adjust, metallic pads, 203mm rotor
REAR BRAKE
Custom Avid Elixir R, hydraulic disc, reach adjust, metallic pads, 185mm rotor
BRAKE LEVERS
Custom Avid Elixir R Hydraulic, tool-less adj. reach
ACCESSORIES
PEDALS
Specialized Lo-Pro alloy
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 950mm | 950mm | 950mm |
| Bottom Bracket Height - Low Setting | 362mm | 362mm | 362mm |
| Top Tube Length (Horizontal) | 582mm | 602mm | 624mm |
| Head Tube Height | 120mm | 120mm | 120mm |
| Head Tube Angle - Low Setting | 65° | 65° | 65° |
| Seat Tube Angle (Actual) - Low Setting | 65° | 65° | 65° |
| Seat Tube Angle (Effective) - Low Setting | 73.5° | 73.5° | 73.5° |
| Top Tube Length (Actual) | 520mm | 539mm | 555mm |
| Head Tube Angle - High Setting | 66° | 66° | 66° |
| Bottom Bracket Height - High Setting | 374mm | 374mm | 374mm |
| Seat Tube Angle (Actual) - High Setting | 66° | 66° | 66° |
| Seat Tube Angle (Effective) - High Setting | 74.5° | 74.5° | 74.5° |
| Seat Tube Length - Center to Top | 432mm | 432mm | 457mm |
| Wheel Base | 1160mm | 1185mm | 1205mm |
| Standover Height | 748mm | 753mm | 763mm |
| Stack | 588mm | 588mm | 588mm |
| Reach | 404mm | 429mm | 449mm |
| Chainstay Length | 421mm | 421mm | 421mm |
| Crank Length | 170mm | 170mm | 170mm |
| Handlebar Width | 750mm | 750mm | 750mm |
| Stem Length | 40mm | 40mm | 40mm |
| Seatpost Length | 367mm | 367mm | 367mm |
