2010 Demo 7 Frame

0 Reviews

The downhill bike known for its huge 7" and 8" travel, solid components and ability…

Product Details

The downhill bike known for its huge 7" and 8" travel, solid components and ability to level big and burly terrain just got faster and more capable under the likes of Sam Hill and Brendan Fairclough of the Monster Energy Team. Based on their testing and input (and we think these guys know a thing or two about performance), we've redesigned the geometry of the Demo 8 to encourage nothing short of DH domination.

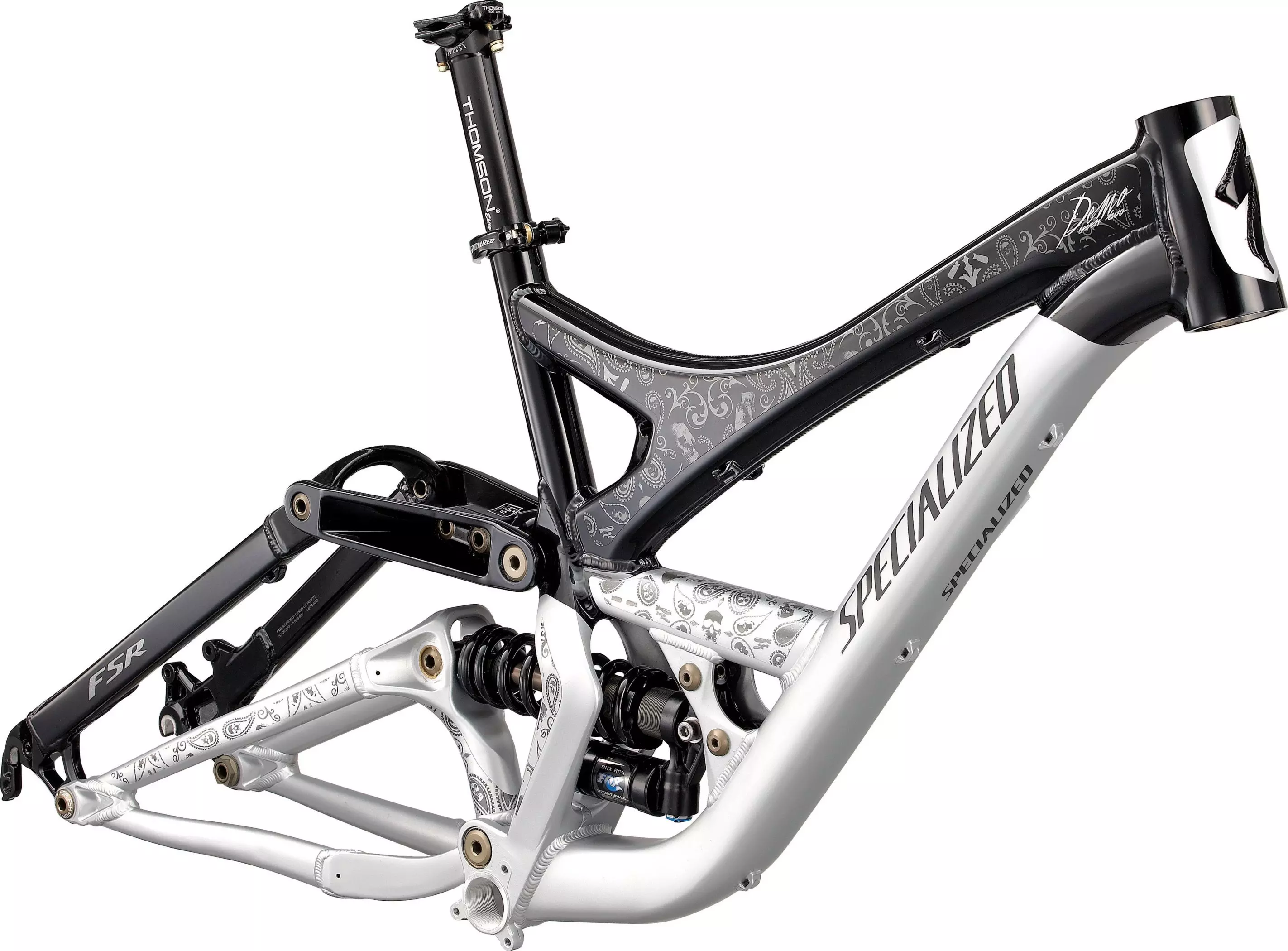

Tough and agile Demo 7 FSR M5 alloy frame with 7" of front and rear wheel travel, oversized forged head tube and über-stout Fox components is engineered for DH domination
New for 2010 Fox DHX RC4 rear shock provides an elegant mix of granular adjustability, externally adjustable high and low-speed compression and bottom out control for high speed bump mastery

Technical Specifications

FRAMESET

FRAME

Demo 7 FSR M5 manipulated alloy, 7"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized DHX RC4 coil 8.5x2.375"" for Demo 7, rebound adj., High and low speed compression adj. and bottom out control, S:450, M:500, L:550

COCKPIT

SEATPOST

Thomson straight w/ 12 degree clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	950mm	950mm	950mm
Bottom Bracket Height - Low Setting	362mm	362mm	362mm
Top Tube Length (Horizontal)	582mm	602mm	624mm
Head Tube Height	120mm	120mm	120mm
Head Tube Angle - Low Setting	65°	65°	65°
Seat Tube Angle (Actual) - Low Setting	65°	65°	65°
Seat Tube Angle (Effective) - Low Setting	73.5°	73.5°	73.5°
Top Tube Length (Actual)	520mm	539mm	555mm
Head Tube Angle - High Setting	66°	66°	66°
Bottom Bracket Height - High Setting	374mm	374mm	374mm
Seat Tube Angle (Actual) - High Setting	66°	66°	66°
Seat Tube Angle (Effective) - High Setting	74.5°	74.5°	74.5°
Seat Tube Length - Center to Top	432mm	432mm	457mm
Wheel Base	1160mm	1185mm	1205mm
Standover Height	748mm	753mm	763mm
Stack	588mm	588mm	588mm
Reach	404mm	429mm	449mm
Chainstay Length	421mm	421mm	421mm
Crank Length	170mm	170mm	170mm
Handlebar Width	750mm	750mm	750mm
Stem Length	40mm	40mm	40mm
Seatpost Length	367mm	367mm	367mm
