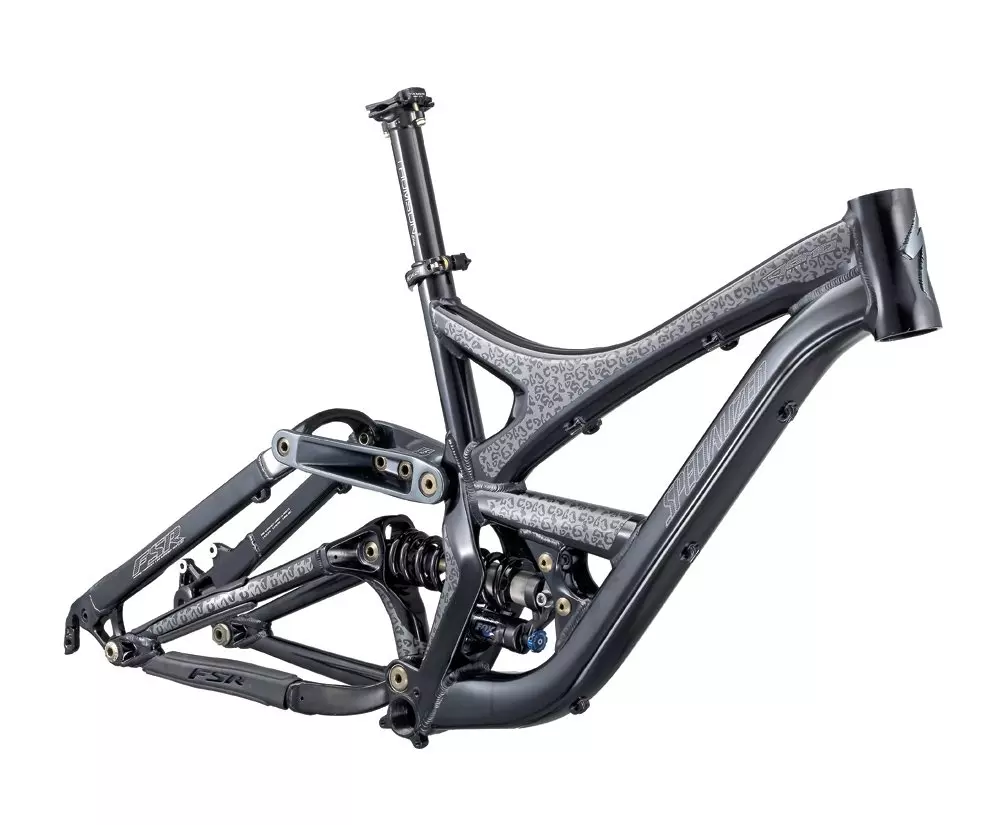

2009 Demo 7 Frame

0 Reviews

BUILT FOR STEEP TRAILS AND BIG AIR, our Demo laughs in the face of ruthless terrain…

Color:

Anodized Black

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

BUILT FOR STEEP TRAILS AND BIG AIR, our Demo laughs in the face of ruthless terrain with 7 and 8 inches of generous travel. Its top-of-the line Fox components, stable geometry with low central mass and insanely strong double ORE down tubes are competition-proven to withstand the most extreme abuse.

  • 7-inch travel M5 manipulated alloy frame features a cold-forged head tube, seat tube, bottom bracket shell, linkage points and center rib cage for off-the-charts durability. Adjustable geometry for situation-specific tuning.

  • Fox DHX 5.0 coil shock is custom-tuned for the Demo 7's FSR telemetry. 15-click ProPedal damping, boost valve and bottom-out resistance give the Demo 7 responsiveness, no matter the terrain.

Technical Specifications

Add Icon

FRAMESET

FRAME

Demo 7 FSR M5 Manipulated Alloy, 7"" travel, Magnesium link, asymetrical rear triangle, ISCG mount, adj. geometry, 1.5"" forged HT, cartridge bearing rear shock mount, rear derailleur protector

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Fox DHX 5.0 coil 8.5x2.375"", ProPedal and rebound adj., bottom out control, S:450, M:500, L:550

COCKPIT

SEATPOST

6066 butted alloy, two-bolt, 0 offset, 30.9x300mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SML
Bottom Bracket Height - Low Setting362mm362mm362mm
Top Tube Length (Horizontal)550mm575mm595mm
Head Tube Height120mm120mm120mm
Head Tube Angle - Low Setting65°65°65°
Seat Tube Angle (Actual) - Low Setting65°65°65°
Seat Tube Angle (Effective) - Low Setting75°75°75°
Top Tube Length (Actual)520mm540mm554mm
Head Tube Angle - High Setting66°66°66°
Bottom Bracket Height - High Setting374mm374mm374mm
Seat Tube Angle (Actual) - High Setting66°66°66°
Seat Tube Angle (Effective) - High Setting76°76°76°
Seat Tube Length - Center to Top432mm432mm457mm
Wheel Base1160mm1185mm1205mm
Standover Height748mm753mm763mm
Chainstay Length421mm421mm421mm
Crank Length170mm170mm170mm
Handlebar Width680mm680mm680mm
Stem Length35mm35mm35mm
Seatpost Length367mm367mm367mm
Geometry
