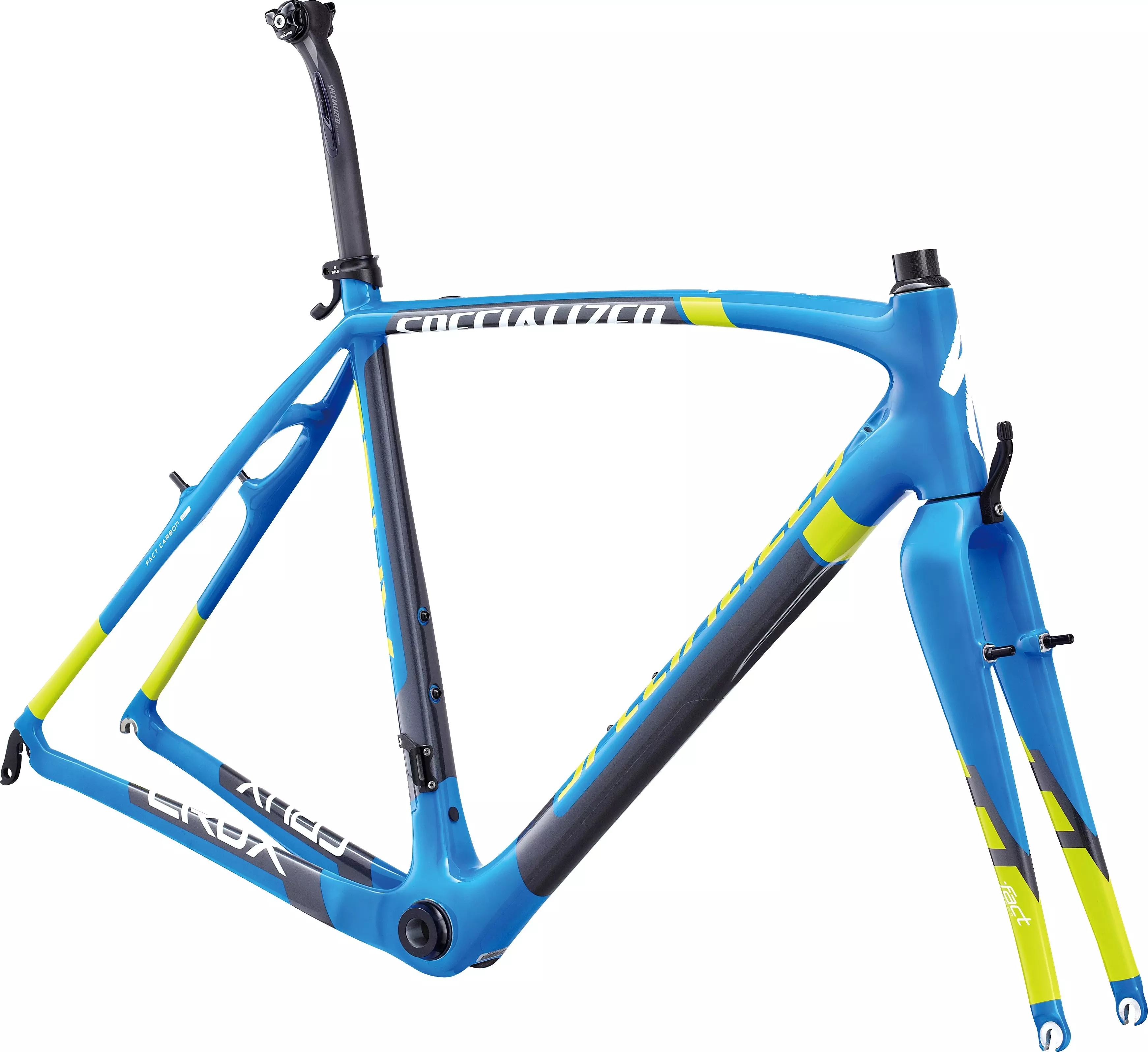

2014 CruX Pro Frameset

0 Reviews

The CruX Pro frameset is a 'cross beast, with race-optimized geometry, OSBB, tapered…

Product Details

The CruX Pro frameset is a 'cross beast, with race-optimized geometry, OSBB, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice.

Specialized FACT 10r carbon canti frame with 'cross-specific geometry and race features, such as tapered headtube and OSBB for greater stiffness, acceleration, efficiency and handling on any race course
FACT carbon canti fork with tapered steerer provides ample tire clearance and the best balance of strength, stiffness, and compliance for cyclocross racing
1-1/8" upper and 1-3/8" lower integrated stainless steel cartridge bearings with 8mm cone spacer and 20mm of spacers
Specialized Pro Carbon Pave SL seatpost is lightweight and comfortable, allowing you to fine-tune your saddle position with a single-bolt adjustable head

Technical Specifications

FRAMESET

FRAME

Specialized FACT 10r carbon, canti-specific, 1-3/8"" lower bearing, OSBB

FORK

Specialized FACT carbon, canti-specific monocoque fork, carbon steerer and crown for 1-3/8"" lower bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower integrated stainless cartridge bearings, 8mm cone spacer, w/ 20mm of spacers

SEAT BINDER

S-Works, w/ brake stop, 32.6mm

DRIVETRAIN

BOTTOM BRACKET

OS integrated, sealed bearings

COCKPIT

SEATPOST

Specialized Pave Pro SL, FACT carbon, single bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	460.0	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	115mm	125mm	140mm	155mm	170mm	190mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	70.5°	71.5°	71.5°	72°	72.5°	73°
Chain-Stay Length	425mm	425mm	425mm	425mm	425mm	425mm	425mm
Top-Tube Length, Horizontal	501mm	513mm	537mm	549mm	560mm	570mm	587mm
Front-Center	593mm	593mm	595mm	601mm	606mm	609mm	615mm
Handle-Bar Width	400mm	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	725mm	754mm	773mm	790mm	807mm	825mm	849mm
Seat-Tube Length, B-B Center to Top	470mm	490mm	510mm	530mm	550mm	570mm	600mm
Fork Rake	51mm	51mm	51mm	49mm	49mm	49mm	49mm
B-B Drop	71mm	71mm	71mm	69mm	69mm	67mm	67mm
Stack	522mm	541mm	554mm	567mm	583mm	597mm	618mm
Reach	366mm	369mm	375mm	378mm	384mm	387mm	392mm
Trail	75mm	69mm	62mm	64mm	61mm	58mm	55mm
Wheelbase	1008mm	1007mm	1009mm	1016mm	1022mm	1025mm	1031mm
Crank Length	170mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	75mm	90mm	100mm	100mm	110mm	110mm
