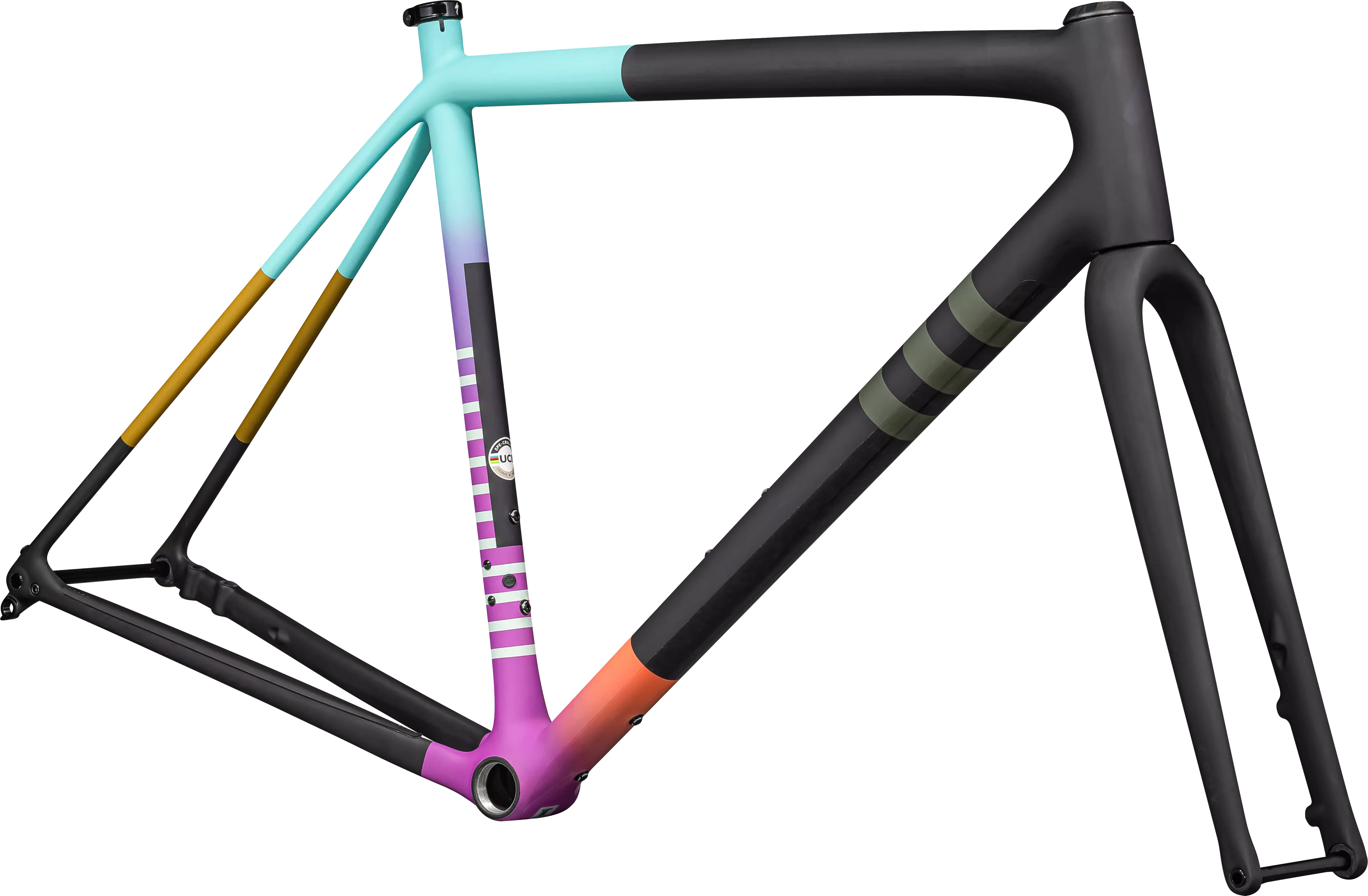

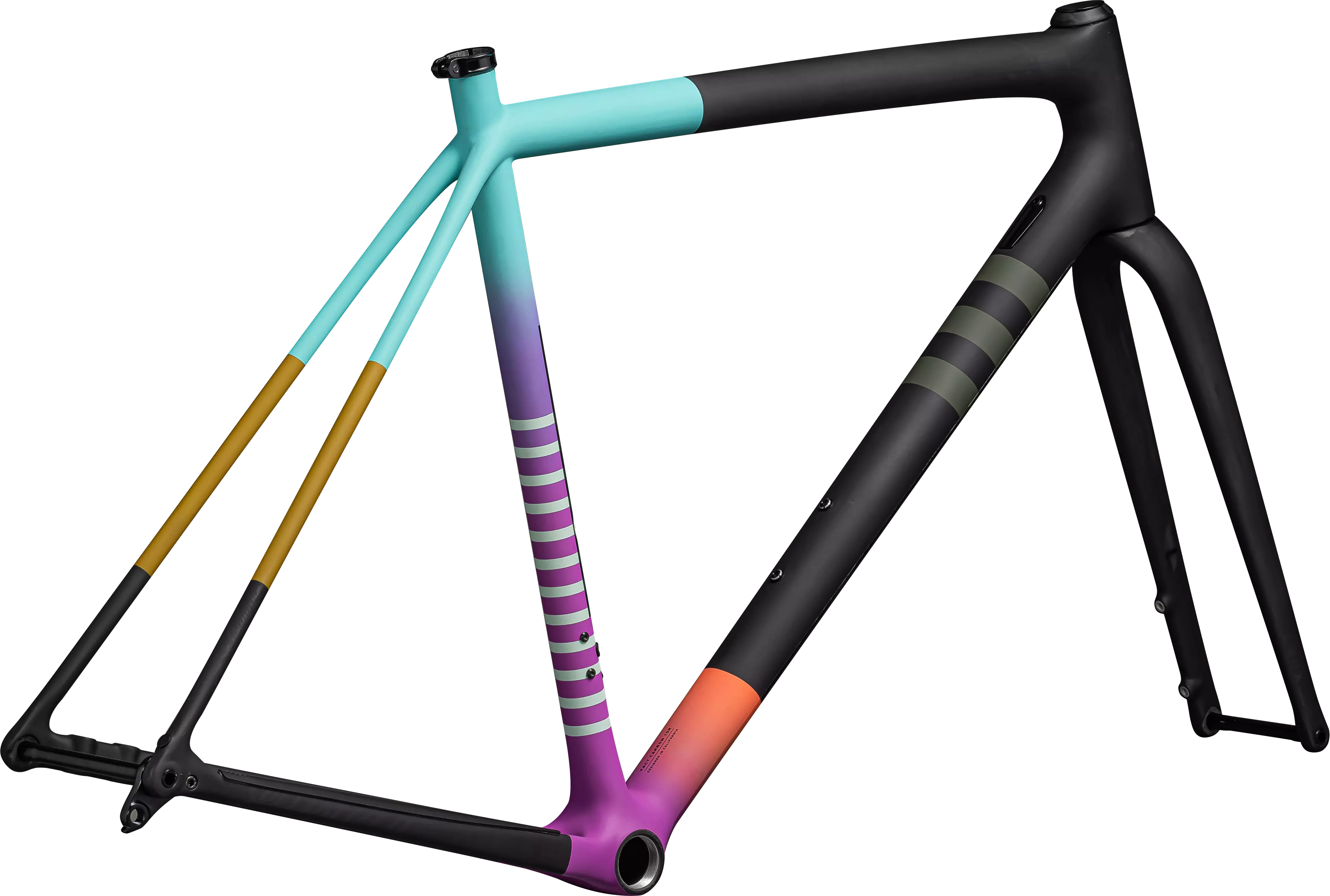

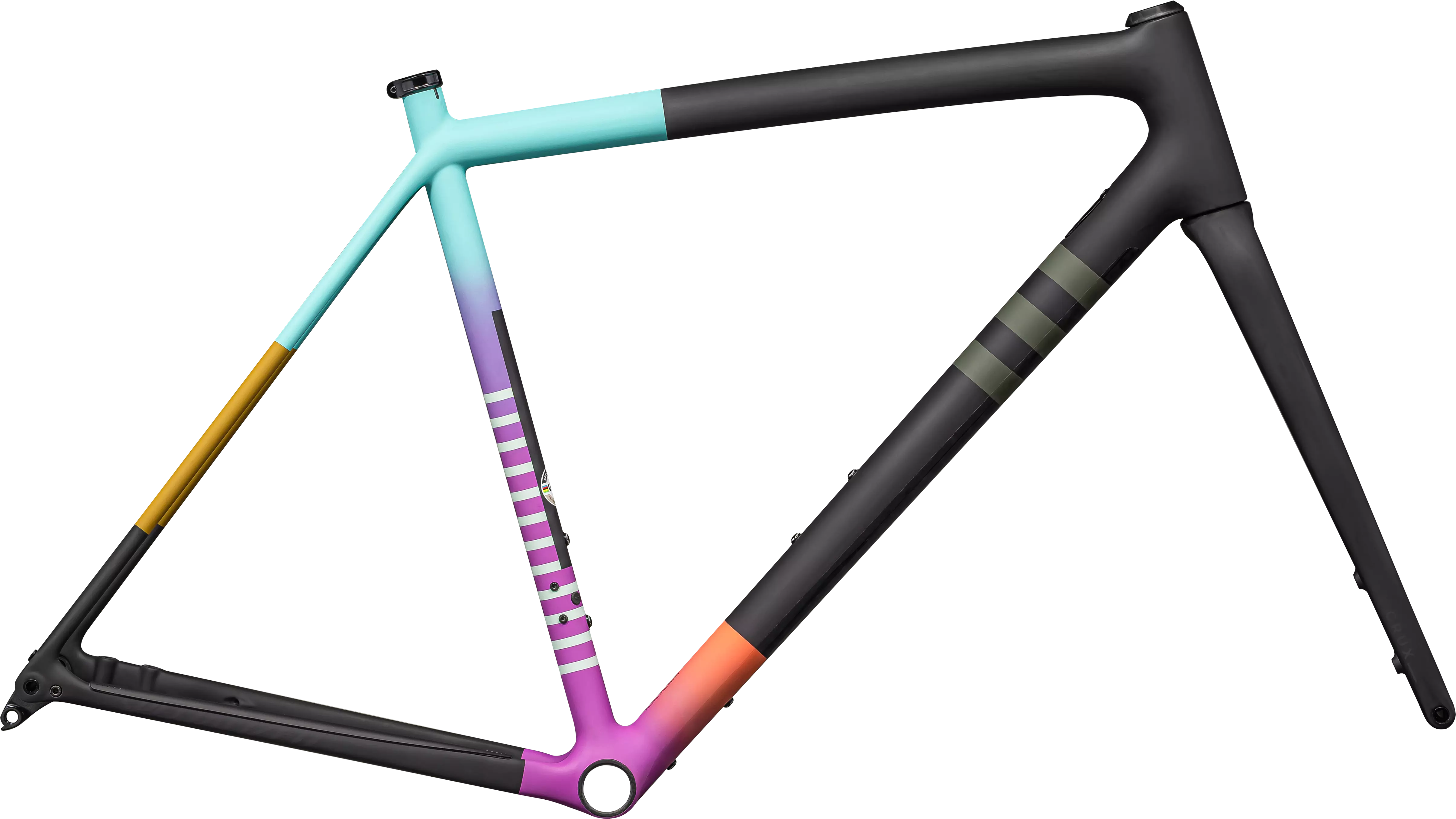

2023 Crux Frameset

5

3 Reviews

The Crux is the lightest gravel bike in the world, with the exceptional capability…

Product Details

Add Icon

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.

  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.

  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

Technical Specifications

Add Icon

Frameset

Frame

Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc

Suspension

Fork

FACT 12R Carbon, 12x100mm thru-axle, flat-mount disc

Cockpit

Seat Binder

Specialized Alloy, 30mm

Weight

Weight

1.43kg (3 lb, 2.4 oz)

Weight Size

56

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSMLXL
Seatpost Length325mm375mm438mm438mm478mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Head Tube Length100mm115mm130mm147mm167mm190mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
BB Height284mm284mm286mm286mm286mm286mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Seat Tube Length466mm496mm521mm546mm576mm606mm
Stack530mm547mm560mm578mm598mm621mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Front Center594mm600mm608mm618mm630mm644mm
Reach375mm382mm388mm397mm405mm415mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°
BB Drop74mm74mm72mm72mm72mm72mm
Trail74mm69mm67mm64mm62mm60mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Geometry
