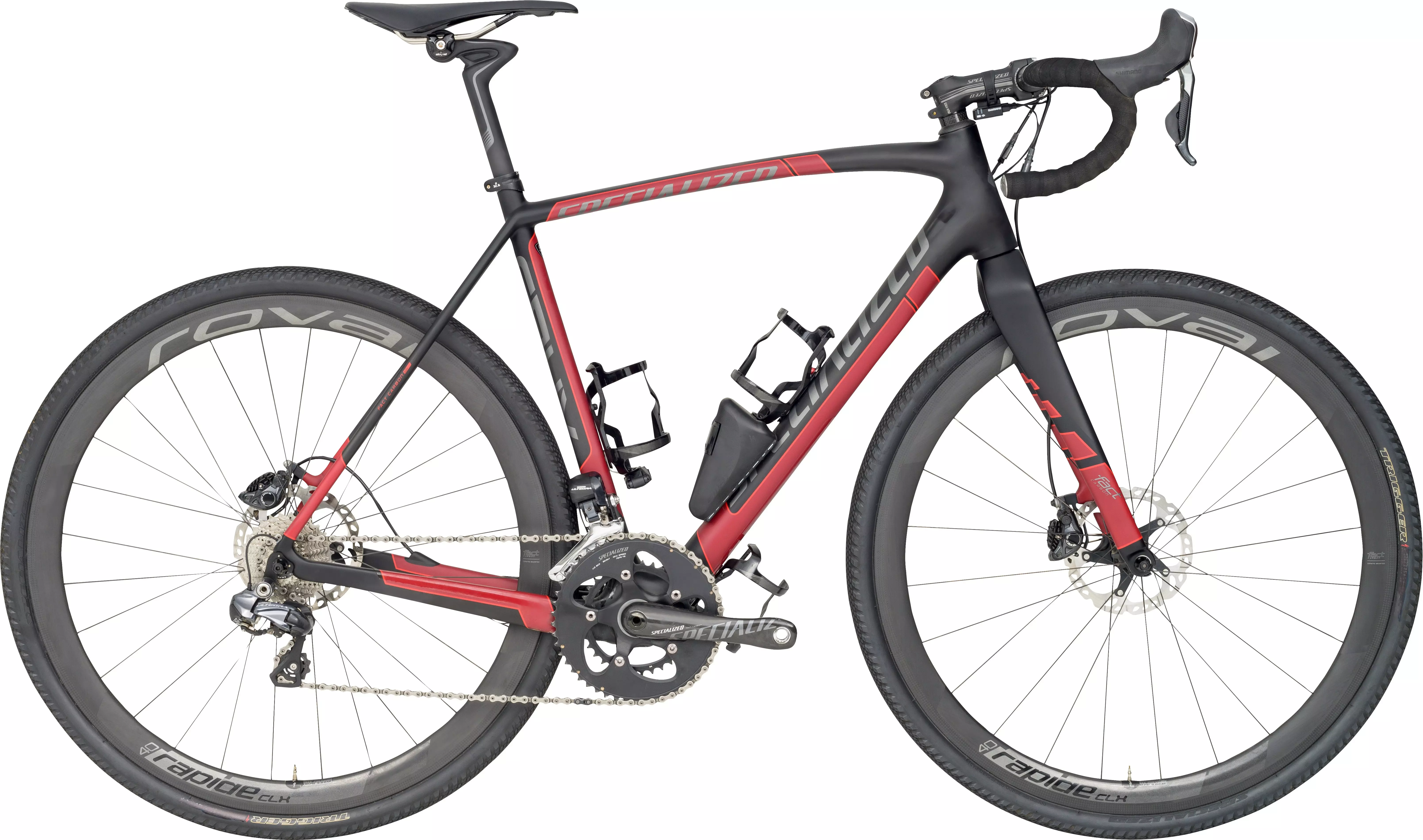

2014 CruX EVO

0 Reviews

All over the globe, dirt road riding and gravel road racing is exploding in popularity.…

Color:

Satin Carbon/Neon Red/Oxblood

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

All over the globe, dirt road riding and gravel road racing is exploding in popularity. For some, its appeal lies in riding beautiful, scenic roads in quiet and traffic-free isolation, rebelling against that standard definition of 'road riding' and getting out there. For riders like Dan Hughes, it's also tied to the feeling you get when crossing the finish line at tough events like the Dirty Kanza 200. And Dan should know—he's won this challenging race 4 times. "The Kanza surprises you," he says. "It's tougher and prettier than you think it's going to be, and ultimately, it's more rewarding that you could imagine." Dan knows that to win a race like the Kanza, you need a mix of good luck and special equipment. That's why it was a no-brainer to get his input on the ultimate race machine for events like this. The CruX Evo is his dream rig, and with only 100 going into production, that dream is going to become reality for a select few.

  • Specialized FACT 10r carbon disc frame with Race geometry, features tapered headtube and OSBB for greater stiffness, acceleration, and handling

  • FACT carbon disc fork with tapered steerer provides ample tire clearance and the best balance of strength, stiffness, and compliance

  • Race-ready Roval Rapide CL40 disc wheels, fitted with Specialized Trigger folding tires for reliable traction on all course conditions

  • New Shimano Di2 Hydraulic STI

  • Fully-integrated emergency repair SWAT kit, featuring storage, water bottle holder, air canister and multi-tool

  • Specialized Body Geometry Toupe Expert saddle with CG-R seatpost

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized CruX FACT 10r carbon disc, FACT IS construction, 1-3/8"" lower bearing, OSBB, SWAT compatible

FORK

Specialized FACT carbon, disc-specific monocoque fork, carbon steerer and crown for 1-3/8"" lower bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower integrated stainless cartridge bearings, 8mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Forged alloy, 32.6mm

SUSPENSION

REAR SHOCK

SWAT Box w/ tire levers, tube, and CO2 cartridge head, bottle cages, EMT Tool

WHEELS

FRONT TIRE

Specialized Trigger, aramid bead, 700x38c

REAR TIRE

Specialized Trigger, aramid bead, 700x38c

INNER TUBES

700X28/38, presta valve

FRONT WHEEL

Roval Rapide CL 40 carbon disc , w/ center lock hub

REAR WHEEL

Roval Rapide CL 40 carbon disc, w/ center lock hub

DRIVETRAIN

FRONT DERAILLEUR

Shimano Ultegra Di2, braze-on, 11-speed

REAR DERAILLEUR

Shimano Ultegra Di2, 11-speed

SHIFT LEVERS

Shimano Hydraulic Di2 STI, 11-speed w/ Di2 satellite shifter

CASSETTE

Shimano Ultegra, 11-speed, 11-28

CHAIN

Shimano Ultegra, 11-speed

CRANKSET

Specialized Pro FACT carbon

CHAINRINGS

50/34

BOTTOM BRACKET

OS integrated, sealed bearings

COCKPIT

STEM

ProSet 7075, 6061 faceplate w/ cone head bolt and plastic clip, 12-degree rise w/ 4-degree shim

HANDLEBARS

Specialized Expert, alloy, shallow bend

TAPE

Specialized S-Wrap HD

SADDLE

Body Geometry Toupe Expert w/ hollow Ti rails, 143mm

SEATPOST

S-Works FACT carbon CG-R, single bolt, 27.2mm

BRAKES

FRONT BRAKE

Shimano, hydraulic

REAR BRAKE

Shimano, hydraulic

BRAKE LEVERS

Cylinder battery

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
460.0490.0520.0540.0560.0580.0610.0
Seat-Tube Angle75.5°75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm115mm125mm140mm155mm170mm190mm
Seat-Post Length300mm300mm300mm350mm350mm350mm350mm
Head-Tube Angle69.5°70.5°71.5°71.5°72°72.5°73°
Chain-Stay Length425mm425mm425mm425mm425mm425mm425mm
Top-Tube Length, Horizontal501mm513mm537mm549mm560mm570mm587mm
Front-Center593mm593mm595mm601mm606mm609mm615mm
Handle-Bar Width400mm400mm420mm420mm420mm440mm440mm
Stand-Over Height725mm754mm773mm790mm807mm825mm849mm
Seat-Tube Length, B-B Center to Top470mm490mm510mm530mm550mm570mm600mm
Fork Rake51mm51mm51mm49mm49mm49mm49mm
B-B Drop71mm71mm71mm69mm69mm67mm67mm
Stack522mm541mm554mm567mm583mm597mm618mm
Reach366mm369mm375mm378mm384mm387mm392mm
Trail75mm69mm62mm64mm61mm58mm55mm
Wheelbase1008mm1007mm1009mm1016mm1022mm1025mm1031mm
Crank Length170mm170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm75mm90mm100mm100mm110mm110mm
