2016 CruX Elite EVO

0 Reviews

The Specialized CruX Elite EVO takes a lightweight and responsive frame and combines…

Product Details

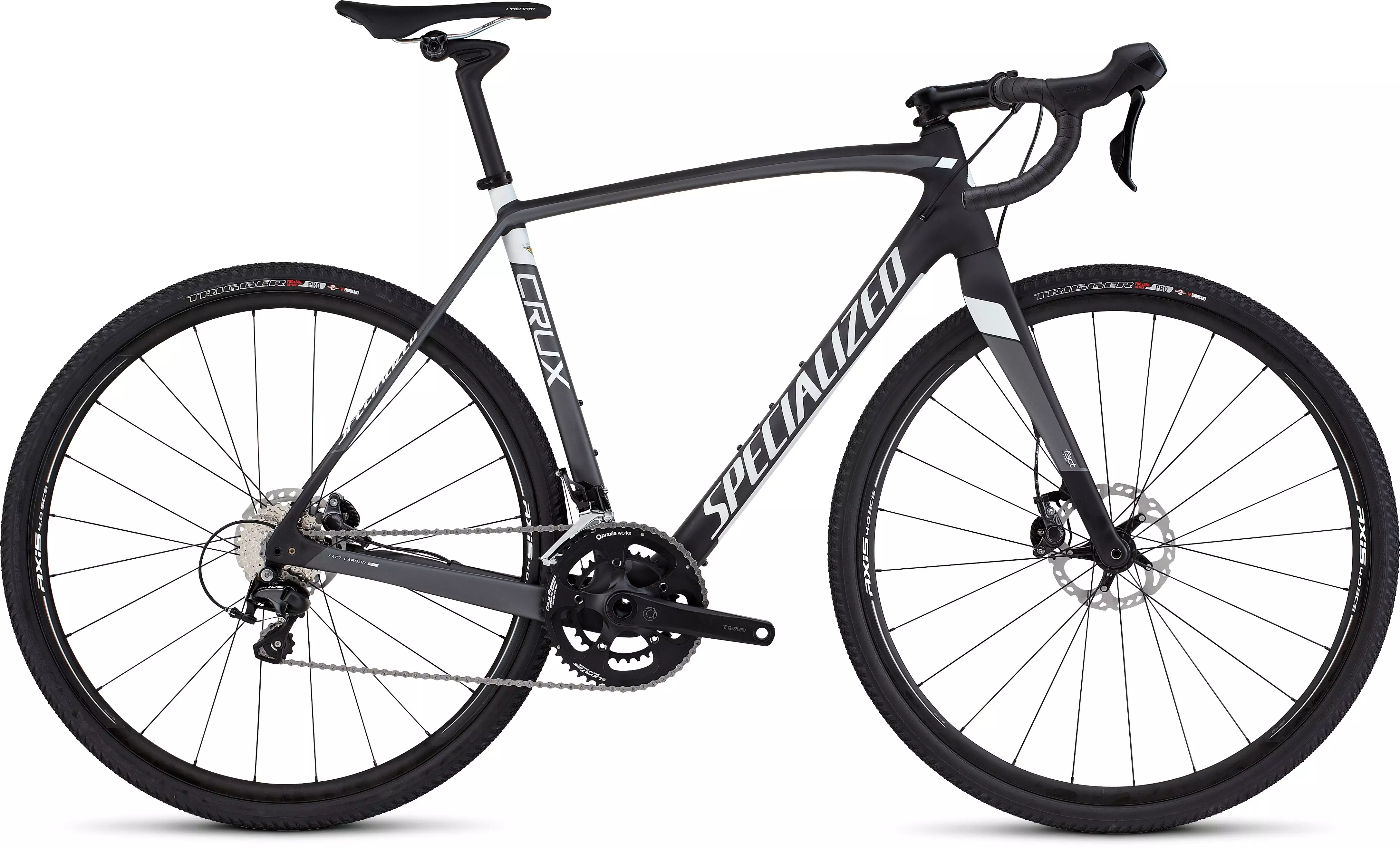

The Specialized CruX Elite EVO takes a lightweight and responsive frame and combines it with a reliable, performance-driven build that's ready to crush at a moment's notice. With the awesome stopping power of Shimano hydraulic brakes, plus the added benefit of SWAT Box compatibility and a third bottle mount on the down tube for water or a tool Keg for hard days in the saddle, you've got a bike that's just as willing to explore as you are.

The Praxis Works TURN crankset helps transfer all your power to the road, while offering excellent shifting precision in a reliable package.
Specialized FACT 10r carbon frame with rear thru axle combines all the lightweight responsiveness and rigidity of 11r with minimal weight gains.
The internally routed, Specialized FACT carbon fork with thru axle increases steering response and rider input for the tight turns and all-out efforts demanded in CX.

Technical Specifications

FRAMESET

FRAME

Specialized FACT 10r carbon, 1-3/8"" lower bearing, disc mount, OSBB

FORK

Specialized FACT carbon

HEADSET

1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers

SEAT BINDER

Alloy, 31.6mm

WHEELS

FRONT WHEEL

AXIS 4.0 Disc SCS

REAR WHEEL

AXIS 4.0 Disc SCS

FRONT TIRE

Specialized Trigger Pro, 60TPI, 2Bliss Ready, folding bead, 700x38mm

REAR TIRE

Specialized Trigger Pro, 60TPI, 2Bliss Ready, folding bead, 700x38mm

INNER TUBES

Standard, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105, 11-speed

REAR DERAILLEUR

Shimano 105, 11-speed

SHIFT LEVERS

Shimano 105 Hydro STI

CASSETTE

Shimano 105, 11-speed, 11-28t

CHAIN

Shimano 105, 11-speed

CRANKSET

TURN Zayante by Praxis Works, BB30, 50/34T

COCKPIT

STEM

Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise

HANDLEBARS

Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach

TAPE

Specialized CX Pro Gel

SADDLE

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

BRAKES

FRONT BRAKE

Shimano BR-785, hydraulic disc, Ice-Tech resin pads w/ fins

REAR BRAKE

Shimano BR-785, hydraulic disc, Ice-Tech resin pads w/ fins

ACCESSORIES

PEDALS

Nylon, loose ball bearings, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
