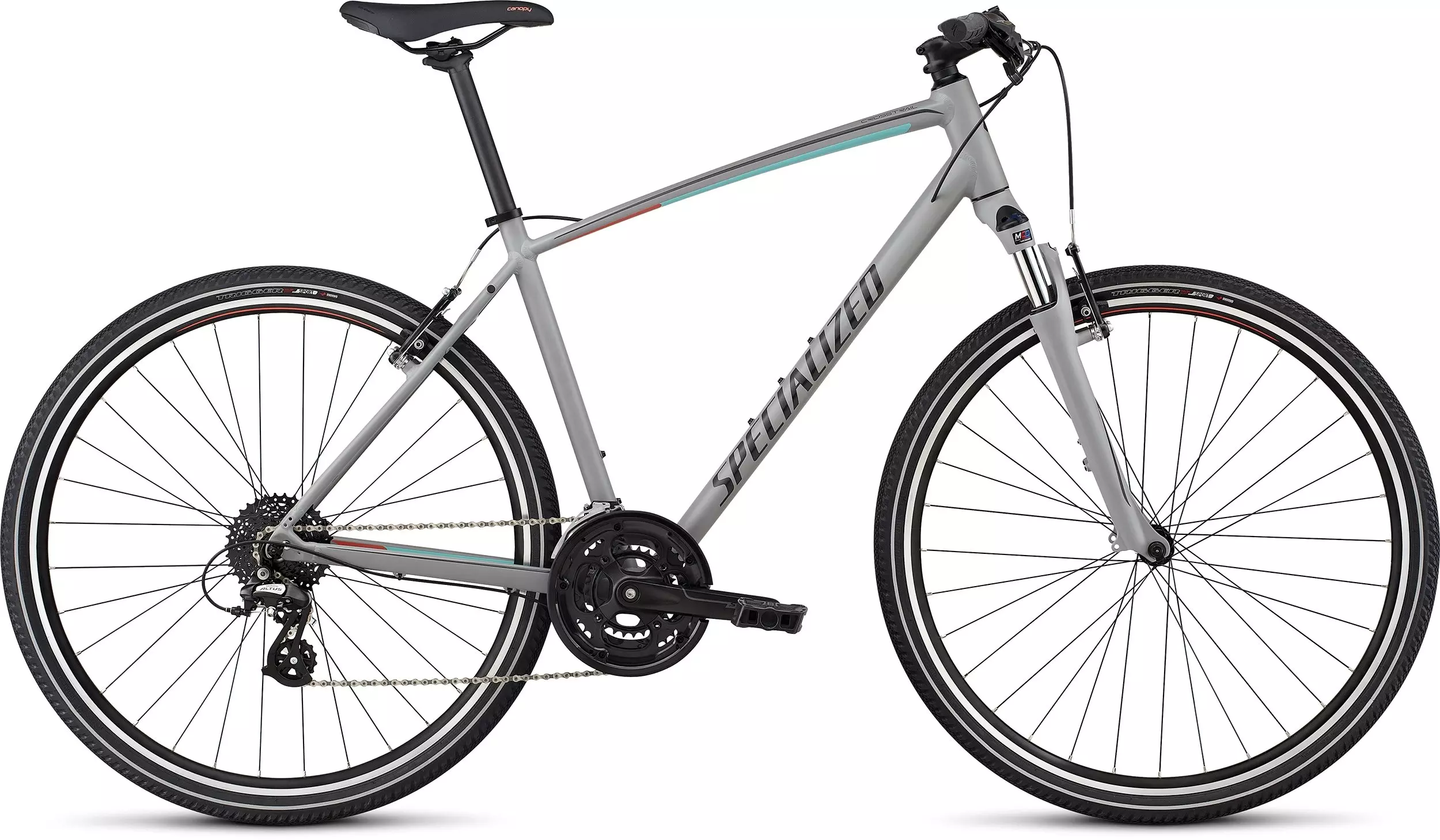

2017 Crosstrail

0 Reviews

The key to hitting your fitness goals is to mix things up a bit. That's why our Crosstrail…

Product Details

Add Icon

The key to hitting your fitness goals is to mix things up a bit. That's why our Crosstrail comes equipped with a custom suspension fork with a lockout feature for fast and efficient use over any surface. To build on this blend of comfort and speed, the frame is built from lightweight A1 SL Premium aluminum tubing with a geometry that's made to fit just right from the minute you get on the bike. Add in a selection of strong, no-fuss components and rack/fender mounts, and you get a bike that's ready and able to deliver you to your goals.

  • Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The A1 SL Premium aluminum construction pairs weight savings with rugged durability, while the rack, fender, and disc mounts give you an incredibly versatile package.

  • Enjoy greater control over varying terrain with a custom, easy-adjust, Multi-Circuit Damping fork with 60mm of travel that's tuned for the trail.

  • V-brakes provide reliable stopping power and hassle-free maintenance, so you'll be able to spend more time riding and less time bleeding those brakes.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 SL Premium Aluminum, Fitness Geometry, rack & Plug + Play mounts

WHEELS

RIMS

700c, 6061 aluminum double-wall

FRONT HUB

Specialized, loose ball bearings, 32h, 9mm QR

REAR HUB

Specialized, loose ball bearings, 8-/9-speed cassette body, 32h, 9mm QR

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 700x38mm, 60TPI, wire bead

REAR TIRE

Trigger Sport Reflect, 700x38mm, 60TPI, wire bead

DRIVETRAIN

CHAIN

KMC X8, 8-speed w/reusable MissingLink

CRANKSET

Stout, forged alloy w/chainguard

CHAINRINGS

48/38/28T w/chainguard

BOTTOM BRACKET

BSA, square taper, cartridge bearings

FRONT DERAILLEUR

Shimano Tourney, top swing, for 7-/8-speed 31.8mm clamp

REAR DERAILLEUR

Shimano Altus, 8-speed

SHIFT LEVERS

Shimano EF500, EZ Fire Plus, 8-speed

CASSETTE

Sunrace, 8-speed, 11-34t

COCKPIT

STEM

3D forged aluminum, 7-degree rise, 31.8mm clamp

HANDLEBARS

Specialized, double-butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Body Geometry Flow Set Control Grips, lock-on

SADDLE

Canopy Sport, steel rails

ACCESSORIES

PEDALS

Specialized Fitness platform

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm175mm175mm175mm
Handlebar Width660mm660mm660mm660mm
Stem Length60mm70mm80mm90mm
Saddle Width155mm155mm155mm155mm
Seatpost Length350mm350mm350mm350mm
Seat-Tube Angle73°73°73°73°
Head-Tube Length110mm125mm145mm165mm
Head-Tube Angle70°70.5°70.5°70.5°
Chain-Stay Length445mm445mm445mm445mm
Top-Tube Length, Horizontal572mm587mm604mm624mm
Front-Center630mm641mm655mm680mm
Stand-Over Height740mm776mm813.3mm850mm
Seat-Tube Length, B-B Center to Top400mm450mm500mm550mm
Fork Rake42mm42mm42mm42mm
B-B Drop65mm65mm65mm65mm
Stack594mm611mm630mm648mm
Reach390mm400mm412mm426mm
Trail87mm84mm84mm84mm
Wheelbase1067mm1078mm1096mm1117mm
