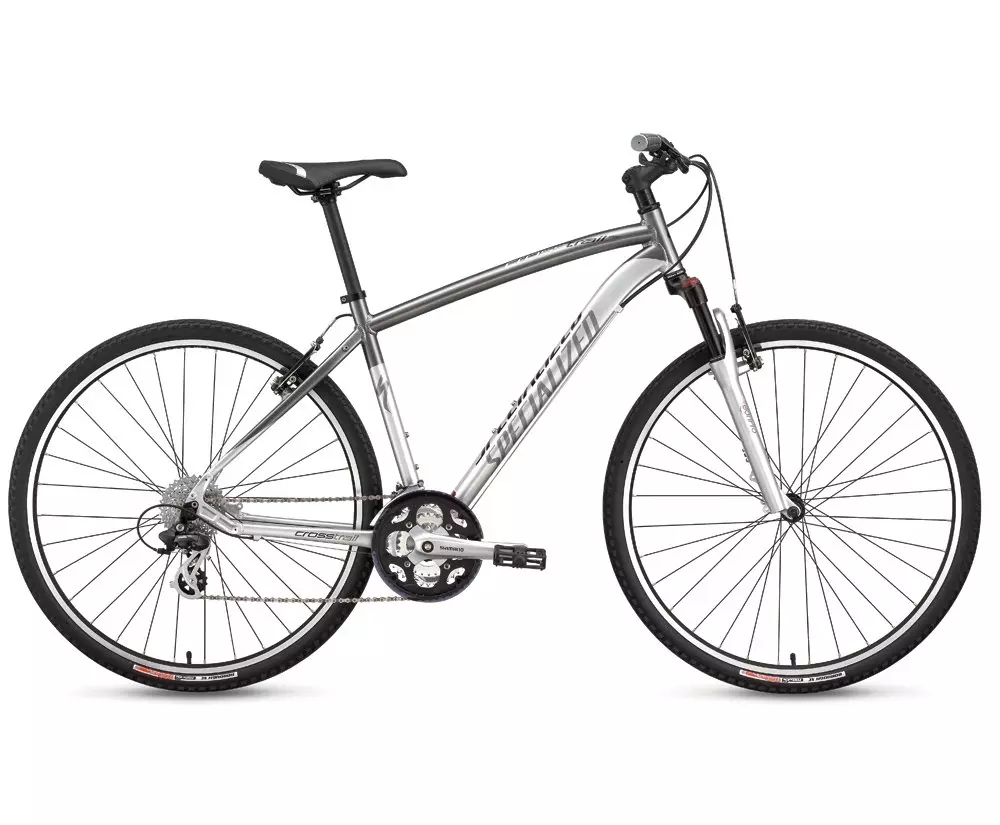

2009 Crosstrail Sport
0 Reviews
COMBINING FAST-ROLLING 700C WHEELS with an efficient aluminum mountain bike chassis…
Product Details
COMBINING FAST-ROLLING 700C WHEELS with an efficient aluminum mountain bike chassis and Body Geometry components, the Crosstrail is a true hybrid— built to inspire a blend of off-road exploits and smooth-rolling fun, for whatever mood you're in.
The 75mm-travel fork features mechanical lockout and an external preload adjuster so you can easily fine-tune the ride.
The A1 Premium Aluminum frame features fender and rack braze-ons, forged dropouts for strength, and a kickstand mount for quick and easy parking.
The CT 700c rims are double-walled for strength and feature machined sidewalls for a better braking surface.
The Shimano Acera 8-speed rear derailleur offers sure, precise shifts.
The front and rear 700x45c Borough XC Sport tires have a smooth center section that rolls fast, with shoulder knobs for added traction in corners.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable 98954020 hanger, integrated kickstand mount, chainstay disc mount
HEADSET
Specialized 1-1/8"" threadless, loose ball
SEAT BINDER
Specialized forged alloy
SUSPENSION
FORK
RST Neon Pro ML700, 75mm, Hi-Ten steerer, 28.6mm stanchions, 1pc. alloy lower w/ disc mount, coil/mcu w/ preload adj., mechanical LO, spring type seal
WHEELS
FRONT TIRE
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
REAR TIRE
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
INNER TUBES
Specialized schraeder valve
RIMS
Specialized/Alex Crosstrail, 700c, double wall w/ machine sidewalls, 32h
FRONT HUB
Specialized, forged alloy, double sealed, polished races, 32h, steel QR
REAR HUB
Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera
SHIFT LEVERS
Shimano SL-MC40, 8-speed, rapid fire
CASSETTE
SRAM PG-830, 8-speed, 11-32t
CHAIN
KMC Z7, 1/2"" x 3/32""
CRANKSET
Shimano FC-M36108 w/ chainguard
CHAINRINGS
48S x 38S x 28S
BOTTOM BRACKET
FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
COCKPIT
STEM
Specialized forged alloy, 2-bolt, 25.4mm, 15 degree rise
HANDLEBARS
Specialized alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
GRIPS
Specialized Enduro, closed end, 130mm
SADDLE
Specialized XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST
Specialized two bolt, no offset, micro adjust, 30.9mm
BRAKES
FRONT BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
BRAKE LEVERS
Specialized linear pull
ACCESSORIES
PEDALS
Composite body, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 38 - S | 43 - M | 49 - L | 53 - XL | 58 - XXL | |
|---|---|---|---|---|---|
| Ground-Top | 65mm | 65mm | 65mm | 65mm | 65mm |
| Seat-Tube Angle | 99° | 96° | 96° | 92° | 92° |
| Head-Tube Length | 170mm | 170mm | 170mm | 175mm | 175mm |
| Head-Tube Angle | 638° | 654° | 675° | 684° | 692° |
| Chain-Stay Length | 43mm | 43mm | 43mm | 43mm | 43mm |
| Top-Tube Length, Horizontal | 74mm | 74mm | 74mm | 73.5mm | 72.5mm |
| Front-Center | 100mm | 110mm | 120mm | 130mm | 145mm |
| Handle-Bar Width | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stand-Over Height | 90mm | 90mm | 90mm | 105mm | 105mm |
| Seat-Tube Length, B-B Center to Top | 442mm | 442mm | 442mm | 442mm | 442mm |
| Fork Rake | 1072mm | 1088mm | 1109mm | 1118mm | 1126mm |
| B-B Drop | 68.5mm | 69mm | 69mm | 69.5mm | 69.5mm |
| Stack | 381mm | 432mm | 483mm | 533mm | 584mm |
| Reach | 575mm | 590mm | 605mm | 620mm | 635mm |
| Trail | 741mm | 769mm | 799mm | 825mm | 859mm |
| Wheelbase | 620mm | 620mm | 620mm | 620mm | 620mm |
