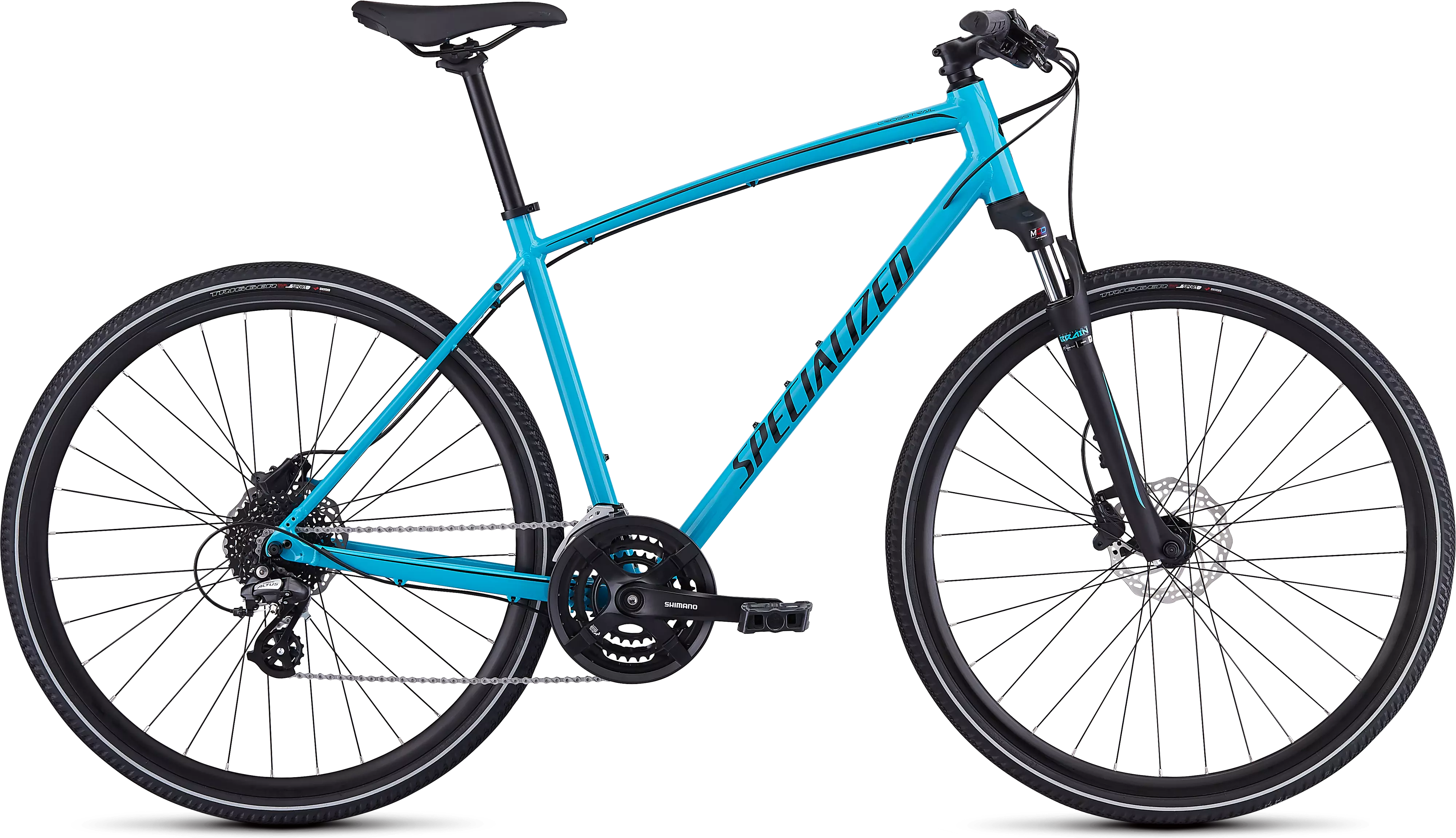

2020 CrossTrail - Hydraulic Disc
5
2 Reviews
When you're at the gym, you use equipment that works for you. Likewise, you need…
Product Details
When you're at the gym, you use equipment that works for you. Likewise, you need a bike that performs exactly how you need it to—versatile, comfortable, and efficient—and that's where our CrossTrail with Hydraulic Disc Brakes comes in.
It features a light and tough A1 Premium Aluminum frame that's been designed with our Fitness Geometry, so it'll fit and feel like a dream right out of the box. Not stopping there, we also included a custom suspension fork with our Brain technology that stays locked out on smooth surfaces but successfully soaks up road imperfections when the going gets rough.
To build on this blend of comfort and speed, the frame is built from respectably light and tough A1 Premium Aluminum tubing with a geometry that's made to fit just right from the moment you hop on your new steed. And when you add in a selection of strong, no-fuss components and reliable hydraulic disc brakes, you get a bike that's ready to roll wherever you choose to take it.
- Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The A1 Premium aluminum construction pairs weight savings with rugged durability, while the rack, fender, and disc mounts give you an incredibly versatile package.
- An SR Suntour NEX fork w/ Fitness Brain technology features 55mm of coil-sprung travel that takes the sting out of bumpy terrain, while our Fitness Brain technology promotes more climbing and pedaling efficiency.
- Braking duties are handled by Promax hydraulic disc brakes to ensure effective, consistent, and reliable power through any kind of terrain or condition.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Fitness Geometry, butted tubing, Plug + Play rack/fender mounts
SEAT BINDER
Bolt-type, 31.8mm
SUSPENSION
FORK
SR Suntour NEX w/ Specialized Fitness Brain technology, 1-1/8" steerer, QR, fender mounts, 43mm offset, 55mm of travel
COCKPIT
STEM
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
HANDLEBARS
Double-butted alloy, 9-degree backsweep, 31.8mm
GRIPS
Specialized Body Geometry XCT, lock-on
SADDLE
Specialized Canopy Sport, steel rails, 155mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 27.2mm
BRAKES
REAR BRAKE
Promax Solve, hydraulic disc, post-mount, 160mm
FRONT BRAKE
Promax Solve, hydraulic disc, post-mount, 160mm
DRIVETRAIN
FRONT DERAILLEUR
Shimano Tourney, 3-speed, top-swing
REAR DERAILLEUR
Shimano Altus, 8-speed
SHIFT LEVERS
Shimano Acera, 8-speed
CASSETTE
SunRace, 8-speed, 11-34t
CHAIN
KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™
CHAINRINGS
50/34T
BOTTOM BRACKET
BSA, square-taper, 68mm
WHEELS
RIMS
Axis Sport Disc
FRONT HUB
Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h
REAR HUB
Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm
REAR TIRE
Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm
INNER TUBES
Schrader valve, 40mm
ACCESSORIES
PEDALS
Specialized Body Geometry Fitness, platform, plastic
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170MM | 175MM | 175MM | 175MM |
| Handlebar Width | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 70mm | 80mm | 90mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Stack | 586mm | 602mm | 621mm | 640mm |
| Reach | 390mm | 400mm | 412mm | 426mm |
| Head Tube Length | 100mm | 115mm | 135mm | 155mm |
| Head Tube Angle | 70° | 70.5° | 70.5° | 70.5° |
| BB Height | 288mm | 288mm | 288mm | 288mm |
| BB Drop | 65mm | 65mm | 65mm | 65mm |
| Trail | 84mm | 81mm | 81mm | 81mm |
| Fork Length, Full | 465mm | 465mm | 465mm | 465mm |
| Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm |
| Front Center | 628mm | 638mm | 657mm | 678mm |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| Wheelbase | 1065mm | 1075mm | 1094mm | 1115mm |
| Top Tube Length, Horizontal | 569mm | 584mm | 602mm | 622mm |
| Bike Standover Height | 722mm | 742mm | 802mm | 843mm |
| Seat Tube Length | 400mm | 450mm | 500mm | 550mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
