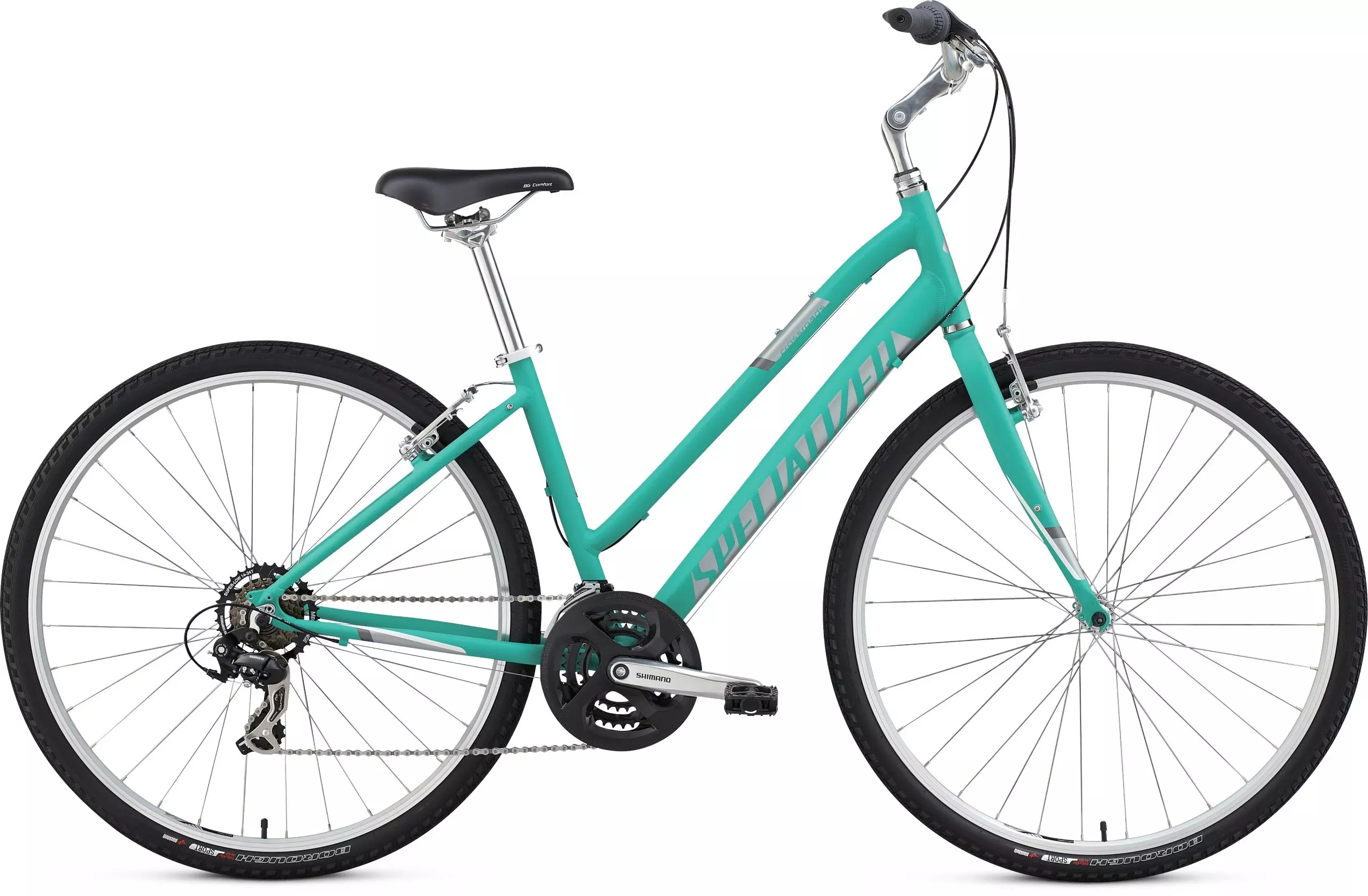

2018 Crossroads Step Through

$470

0 Reviews

The Crossroads Step-Through is your companion to a better, fitter, happier you—whether…

Product Details

Add Icon

The Crossroads Step-Through is your companion to a better, fitter, happier you—whether it be along the road or dirt path. It's a tall order, sure, but it's up for the challenge.

To start, we included wide 45mm tires for confident handling as you're speeding along the bike path, and then came a hand-selected component package that's nothing short of reliable. Of course, we devoted ourselves to achieving the perfect geometry for comfort and performance over a diverse set of riding styles, ultimately making the Crossroads a purpose-built machine to help you stay fit and healthy. And with the rugged versatility of its aluminum frame, easy on and off step-through design, plus rack and fender mounts, it ensures that this bike earns its keep in your household.

So get out there, enjoy the sunshine, and achieve your goals with the Crossroads Step-Through.

  • The sturdy A1 Premium Aluminum frame, combined with a steel fork and rack/fender mounts, delivers reliable handling for a confident ride and plenty of options for carrying your goodies.

  • Durable and wide 700x45mm Specialized Borough Armadillo tires provide a stable ride on dirt paths and roads, and feature super-tough Armadillo puncture protection.

  • The Body Geometry Comfort saddle provides comfort and support, while also reducing soft tissue pressure.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, formed tubes, fender/rack mounts

FORK

Steel, fender/rack mounts

SEAT BINDER

Alloy, QR, 31.8mm

WHEELS

RIMS

700C, 6061 aluminum, double-wall

FRONT HUB

Specialized V-brake, alloy, loose ball bearings, 9mm, QR, 32h

REAR HUB

Specialized V-brake, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Borough, 700x45mm, 60 TPI, BlackBelt protection

REAR TIRE

Borough, 700x45mm, 60 TPI, BlackBelt protection

INNER TUBES

Specialized, 700x45mm tube, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tourney, 31.8mm adapter, top-swing

REAR DERAILLEUR

Shimano Tourney, 7-Speed

SHIFT LEVERS

Shimano Tourney, Revo-style, 7-speed w/ gear display

CASSETTE

Shimano Tourney freewheel, 7-speed, 14-34t

CHAIN

KMC Z7, 7-speed w/ reusable Missing Link™

CRANKSET

Shimano Tourney w/ chainguard

CHAINRINGS

48/38/28T

BOTTOM BRACKET

BSA, square taper, cartridge bearings

COCKPIT

STEM

Quill, adjustable, alloy

HANDLEBARS

Alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 25.4mm

TAPE

Specialized Body Geometry Contour, lock-on

SADDLE

Body Geometry Comfort, steel rails, 200mm

SEATPOST

Dual-Bolt Diecast Head, AL6061 Post, Spring Suspension, 27.2mm

BRAKES

REAR BRAKE

V-brake, linear pull

FRONT BRAKE

V-brake, linear pull

ACCESSORIES

PEDALS

Specialized City, platform

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSML
Crank Length170mm170mm170mm170mm
Handlebar Width645mm645mm645mm645mm
Stem Length85mm85mm85mm85mm
Saddle Width200mm200mm200mm200mm
Seatpost Length300mm350mm350mm350mm
Stack566mm577mm611mm625mm
Reach360mm371mm375mm385mm
Head Tube Length135mm145mm175mm190mm
Head Tube Angle69°69.5°70.5°70.5°
BB Height291mm291mm291mm291mm
BB Drop65mm65mm65mm65mm
Trail72mm72mm74mm78mm
Fork Length, Full410mm410mm410mm410mm
Fork Rake/Offset51mm51mm55mm55mm
Front Center615mm625mm625mm641mm
Chainstay Length465mm465mm465mm465mm
Wheelbase1072mm1082mm1083mm1098mm
Top Tube Length, Horizontal555mm570mm585mm600mm
Bike Standover Height592.3mm598.3mm613.5mm623mm
Seat Tube Length370mm385mm430mm480mm
Seat Tube Angle71°71°71°71°
