2012 Crossroads Elite
0 Reviews
Fun and fast, plush and stable, the Crossroads Elite, with 24-speeds and Armadillo…
Product Details

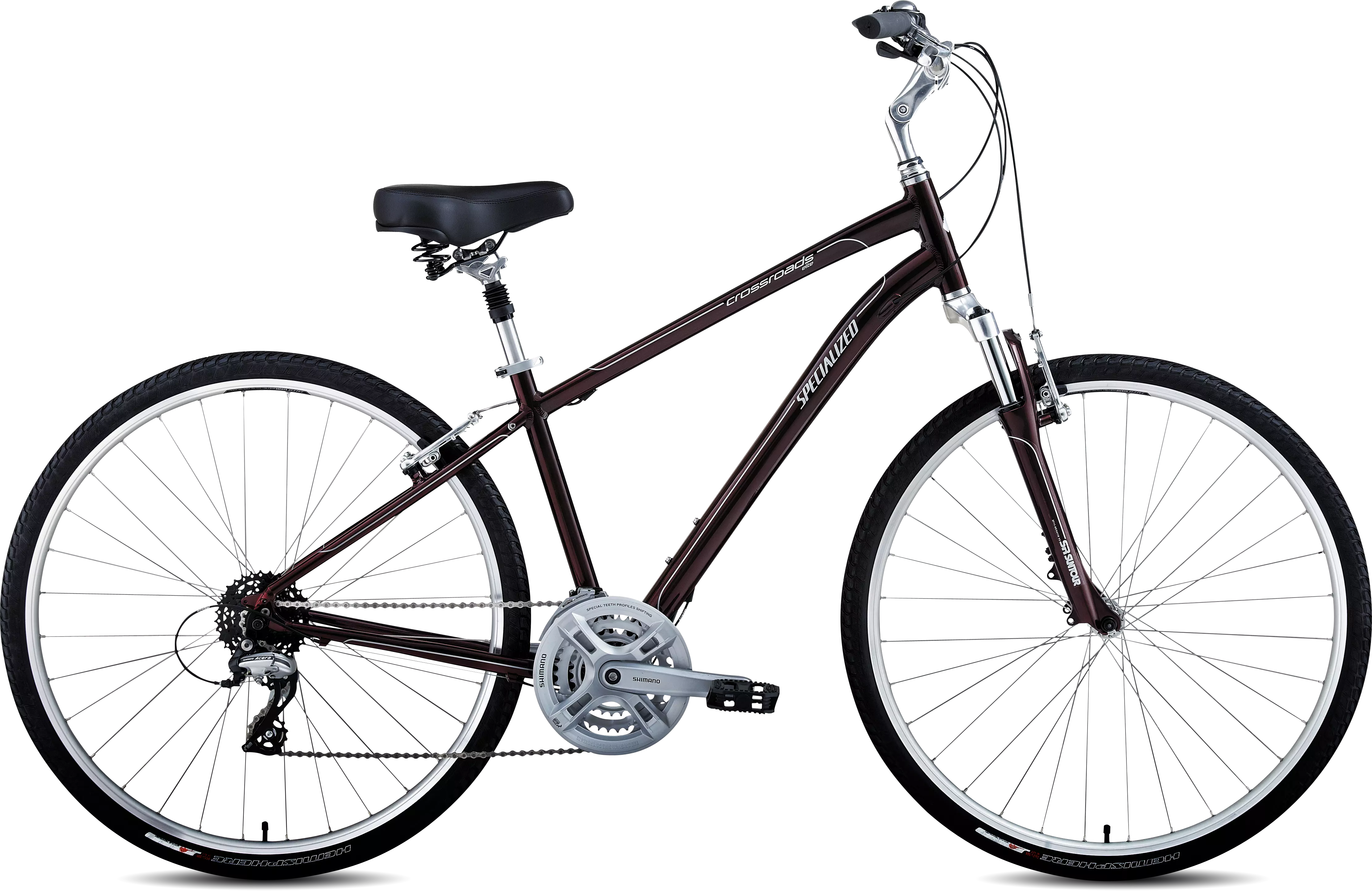

Fun and fast, plush and stable, the Crossroads Elite, with 24-speeds and Armadillo flat-protection tires, is a great way to navigate the neighborhood and blaze the bike path.
A1 Premium Aluminum 700c frame with hybrid geometry for an upright, stable riding position and low standover for bike path bliss, includes integrated kickstand mount
63mm-travel suspension fork with preload adjustment creates a smoother, more comfortable ride
Double-walled, alloy, eyeleted 700c rims are durable and low maintenance, with machined sidewalls for consistent braking
Smooth-rolling Hemisphere 700x38c tires use Armadillo protection to eliminate flats and a semi-connected tread pattern for traction and control on pavement or gravel
Aluminum riser bar creates a stable and comfortable position
BG Comfort grips alleviate hand pain and tingling fingers
Shimano Acera 8-speed rear derailleur provides sure-fire shifts every time
Comfort Plus saddle uses springs, dual-density foam, and a wide platform for over-the-top comfort, while a suspension seatpost takes the edge off bumpy roads or paths
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, 700c Hybrid geometry, formed tubes, integrated kickstand mount, replaceable hanger
FORK
SR Suntour NEX-4110V2, alloy lower, Hi-Ten stanchions and steerer, coil/Mcu spring, preload adjust, 63mm travel
HEADSET
1-1/8"" threaded, sealed loose ball bearings
SEAT BINDER
Forged alloy w/ QR
WHEELS
FRONT WHEEL
REAR WHEEL
RIMS
Alloy double-wall, machined, pinned w/ eyelets, 32h
FRONT HUB
Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR
REAR HUB
Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Hemisphere Armadillo, 60 TPI, 700x38c
REAR TIRE
Specialized Hemisphere Armadillo, 60 TPI, 700x38c
INNER TUBES
Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano, SL-M360, Rapid Fire, 8-speed
FRONT DERAILLEUR
Shimano, top swing, dual pull
REAR DERAILLEUR
Shimano Acera, 8-speed
CASSETTE
SRAM, 8-speed, 11-32t
CRANKSET
Shimano FC-M171, w/chainguard
CHAINRINGS
48/38/28, w/ chainguard
BOTTOM BRACKET
Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CHAIN
KMC Z8 w/ reusable Missing Link
COCKPIT
HANDLEBARS
Comfort riser bar, alloy, 60mm rise, 15-degree sweep, 25.4mm
STEM
Ground Control adjustable rise, alloy head/quill, 2-bolt, 25.4mm clamp
TAPE
Body Geometry Comfort w/ integrated bell, closed end, 132mm
SADDLE
Comfort Plus, dual-density foam, springs
SEATPOST
A-1 Suspension Seatpost, alloy, 27.2mm w/ 3.8mm spring
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Alloy 4-finger, Kraton lever for Rapidfire shifter
ACCESSORIES
PEDALS
Comfort Pedal, composite body w/rubber top, sealed loose ball
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 72° | 72° | 72° | 72° |
| Head-Tube Length | 130mm | 150mm | 170mm | 190mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 69.5° | 69.5° | 69° | 69° |
| Chain-Stay Length | 470mm | 470mm | 470mm | 470mm |
| Top-Tube Length, Horizontal | 590mm | 605mm | 620mm | 635mm |
| Front-Center | 641mm | 657mm | 679mm | 695mm |
| Stand-Over Height | 724mm | 759mm | 801mm | 842mm |
| Seat-Tube Length, B-B Center to Top | 370mm | 425mm | 480mm | 535mm |
| Fork Rake | 40mm | 40mm | 40mm | 40mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm |
| Trail | 89mm | 89mm | 93mm | 93mm |
| Wheelbase | 1102mm | 1118mm | 1140mm | 1156mm |
