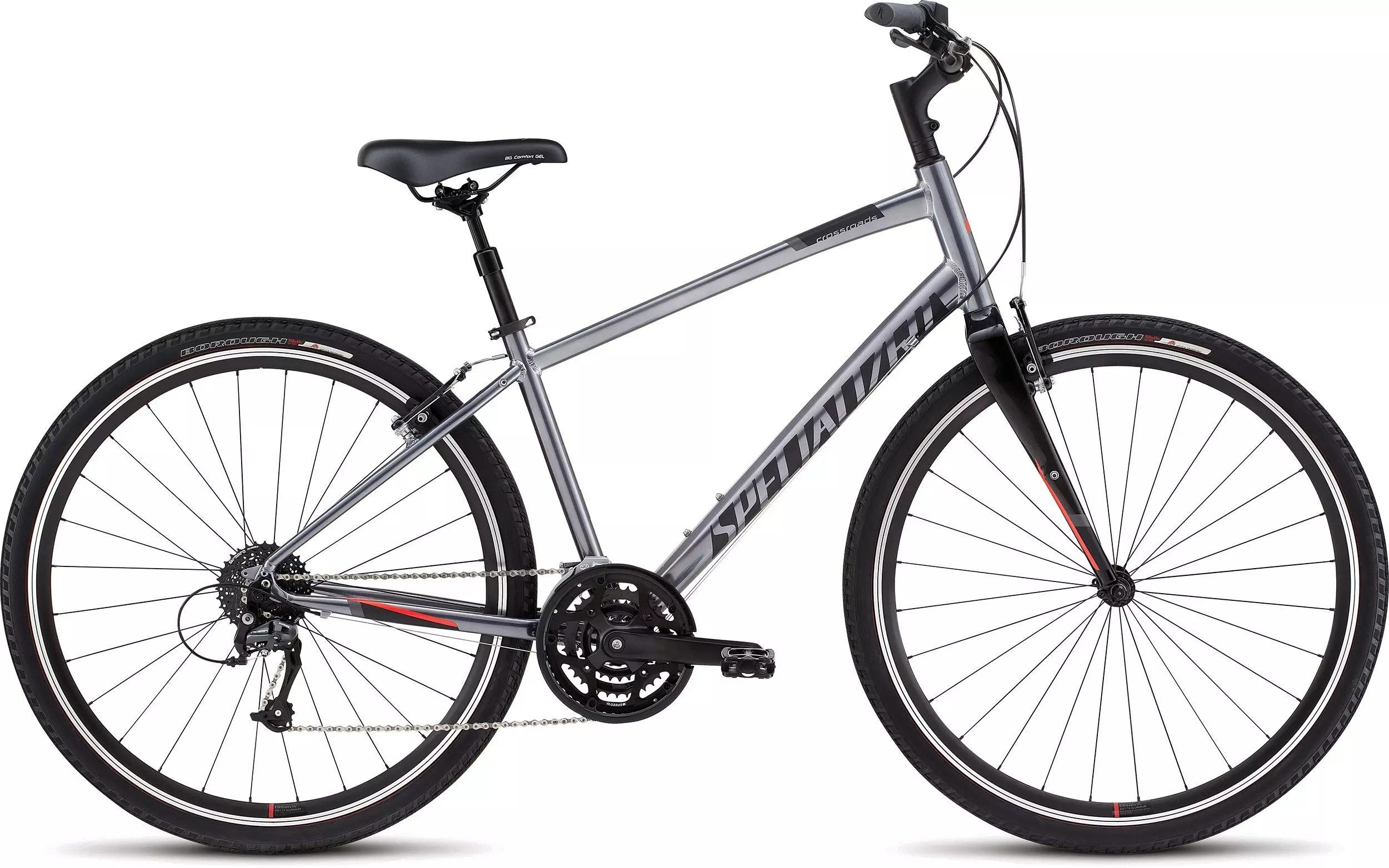

2017 Crossroads Elite

0 Reviews

If you're looking to take your fitness to the next level, look no further than the…

Product Details

If you're looking to take your fitness to the next level, look no further than the Crossroads Elite. It has everything you need to step your game up, from a lightweight and durable aluminum frame, a carbon fiber fork, and an enviable list of components that are purpose-built to last. And knowing that you'll be using this bike for more than just working out, we even included rack and fender mounts and nearly puncture-proof Borough Armadillo tires.

The sturdy A1 Premium Aluminum frame combined with Specialized FACT carbon, straight blade fork delivers reliable handling for a confident ride.
Durable and wide 700x45mm Specialized Borough Armadillo tires provide a stable ride on dirt paths and roads, and feature super-tough Armadillo puncture protection.
The Body Geometry Comfort Gel saddle provides comfort and support while reducing soft tissue pressure.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Fitness Geometry, formed tubes, fender/rack mounts

FORK

Specialized FACT carbon, straight blades, aluminum steerer/crown, fender/rack mounts

HEADSET

Integrated loose ball bearings

SEAT BINDER

Alloy, nylon/glass fiber washer, QR, 34.9mm

WHEELS

REAR TIRE

Specialized Borough Armadillo, 60TPI, 700x45mm

INNER TUBES

Standard, Presta valve

RIMS

700c, alloy, double-wall, CNC sidewalls, pin joint, 30mm, 28h

FRONT HUB

Double-sealed, loose ball, QR, 28h

REAR HUB

Specialized, double-sealed, QR, 28h

SPOKES

Stainless, 14g, black

FRONT TIRE

Specialized Borough Armadillo, 60TPI, 700x45mm

DRIVETRAIN

FRONT DERAILLEUR

Shimano Acera, 9-speed, top swing, dual pull

REAR DERAILLEUR

Shimano Acera, 9-speed

SHIFT LEVERS

Shimano Acera RapidFire Plus, SL type, 9-speed w/optical display

CASSETTE

Shimano, 9-speed, 11-34t

CHAIN

KMC X9, 9-speed w/reusable MissingLink

CRANKSET

Forged Alloy, 48/36/26T w/chainguard

CHAINRINGS

48/36/26T

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

STEM

Specialized, 3D forged alloy, 25-degree rise w/integrated top cap, 31.8mm clamp

HANDLEBARS

Specialized, alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 31.8mm

SADDLE

Body Geometry Comfort Gel, steel rails, 200mm

SEATPOST

Suspension Plus, 2-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

V-brake, alloy, linear pull

REAR BRAKE

V-brake, alloy, linear pull

BRAKE LEVERS

Alloy, Kraton pad

ACCESSORIES

PEDALS

Alloy body, rubber top w/reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Seat-Tube Angle	71°	71°	71°	71°	71°
Head-Tube Length	165mm	195mm	210mm	225mm	245mm
Head-Tube Angle	69.5°	70.5°	70.5°	70.5°	70.5°
Chain-Stay Length	465mm	465mm	465mm	465mm	465mm
Front-Center	655mm	656mm	671mm	685mm	700mm
B-B Drop	65mm	65mm	65mm	65mm	65mm
B-B Height	292mm	292mm	292mm	292mm	292mm
Bike Stand-Over Height	717mm	755mm	790mm	832mm	879mm
Fork Length (full)	400mm	400mm	400mm	400mm	400mm
Top-Tube Length (horizontal)	604mm	615mm	630mm	645mm	660mm
Seat-Tube Length	385mm	430mm	480mm	540mm	610mm
Stack	578mm	611mm	625mm	639mm	658mm
Reach	405mm	405mm	415mm	425mm	433mm
Trail	79mm	72mm	72mm	72mm	72mm
Fork Rake/Offset	51mm	51mm	51mm	51mm	51mm
Wheelbase	1112mm	1113mm	1128mm	1143mm	1157mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	645mm	645mm	685mm	685mm	685mm
Stem Length	75mm	75mm	95mm	95mm	95mm
Seatpost Length	300mm	350mm	350mm	350mm	350mm
