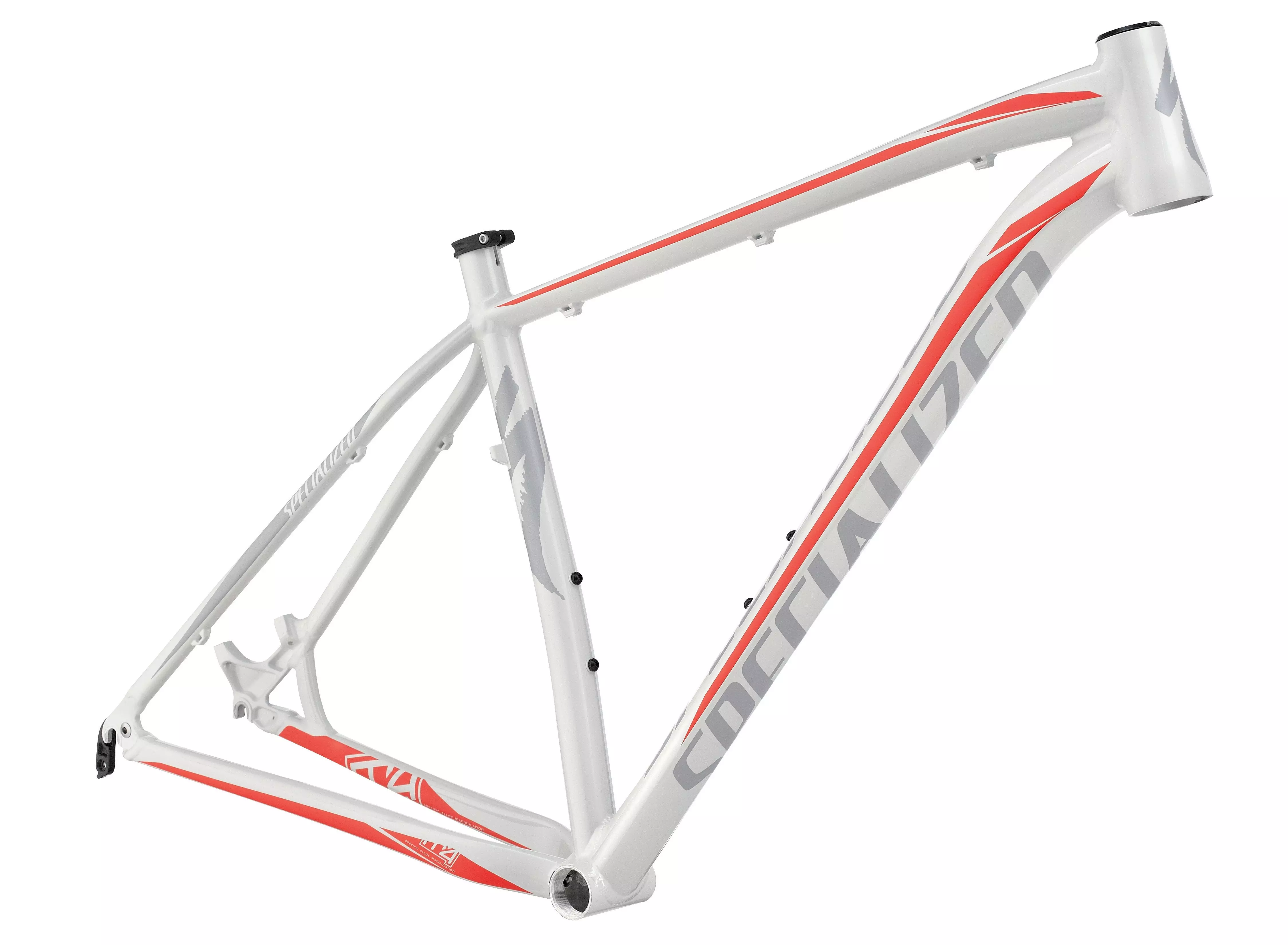

2015 Crave Pro Frame

0 Reviews

The Crave Pro is designed for fast cross-country racers. The lightweight alloy frame…

Product Details

Add Icon

The Crave Pro is designed for fast cross-country racers. The lightweight alloy frame is stiff for quick acceleration, and ready to build up with the 100mm-travel fork of your choice.

  • M4 Premium Aluminum frame is super-lightweight, stiff, and features XC 29er Geometry

  • Campy-style 1-1/8" upper and 1-1/2" lower cartridge bearing integrated headset is light weight and easy to service

  • Alloy seat binder for quick and simple saddle height adjustment

  • The custom color—Rocket Red—is designed to naturally age over time. It will exhibit splashes of a dark rich color when exposed to prolonged direct sunlight. This finish is deliberate and therefore not covered under the traditional warranty policy.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized M4 Premium Aluminum, XC 29er Geometry, fully butted w/ smooth welds, tapered headtube and seat tube, forged post-mount 160mm disc dropouts, replaceable alloy derailleur hanger

HEADSET

1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings

SEAT BINDER

Alloy, 31.8mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXLXXL
Top Tube Length (Horizontal)577mm604mm626mm650mm670mm
Top Tube Length (Actual)572mm584mm601mm622mm642mm
Seat Tube Length, Center to Top394mm445mm483mm533mm584mm
Bottom Bracket Drop63.5mm63.5mm63.5mm63.5mm63.5mm
Bottom Bracket Height306.5mm306.5mm306.5mm306.5mm306.5mm
Wheel Base1071mm1086mm1109mm1134mm1154mm
Standover Height758.3mm790.5mm818.9mm853.2mm887.8mm
Stack617mm626mm641mm655mm674mm
Reach400mm412mm430mm450mm464mm
Head Tube Length110mm100mm115mm130mm150mm
Head Tube Angle71.5°71.5°71.5°71.5°71.5°
Chainstay Length442mm442mm442mm442mm442mm
Seat Tube Angle74°73°73°73°73°
Crank Length170mm175mm175mm175mm175mm
Handlebar Width720mm740mm740mm740mm740mm
Stem Length60mm70mm70mm90mm90mm
Seatpost Length350mm350mm400mm400mm400mm
Geometry
