The all-new Chisel has been purpose-built to tackle modern cross country trails and…
The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

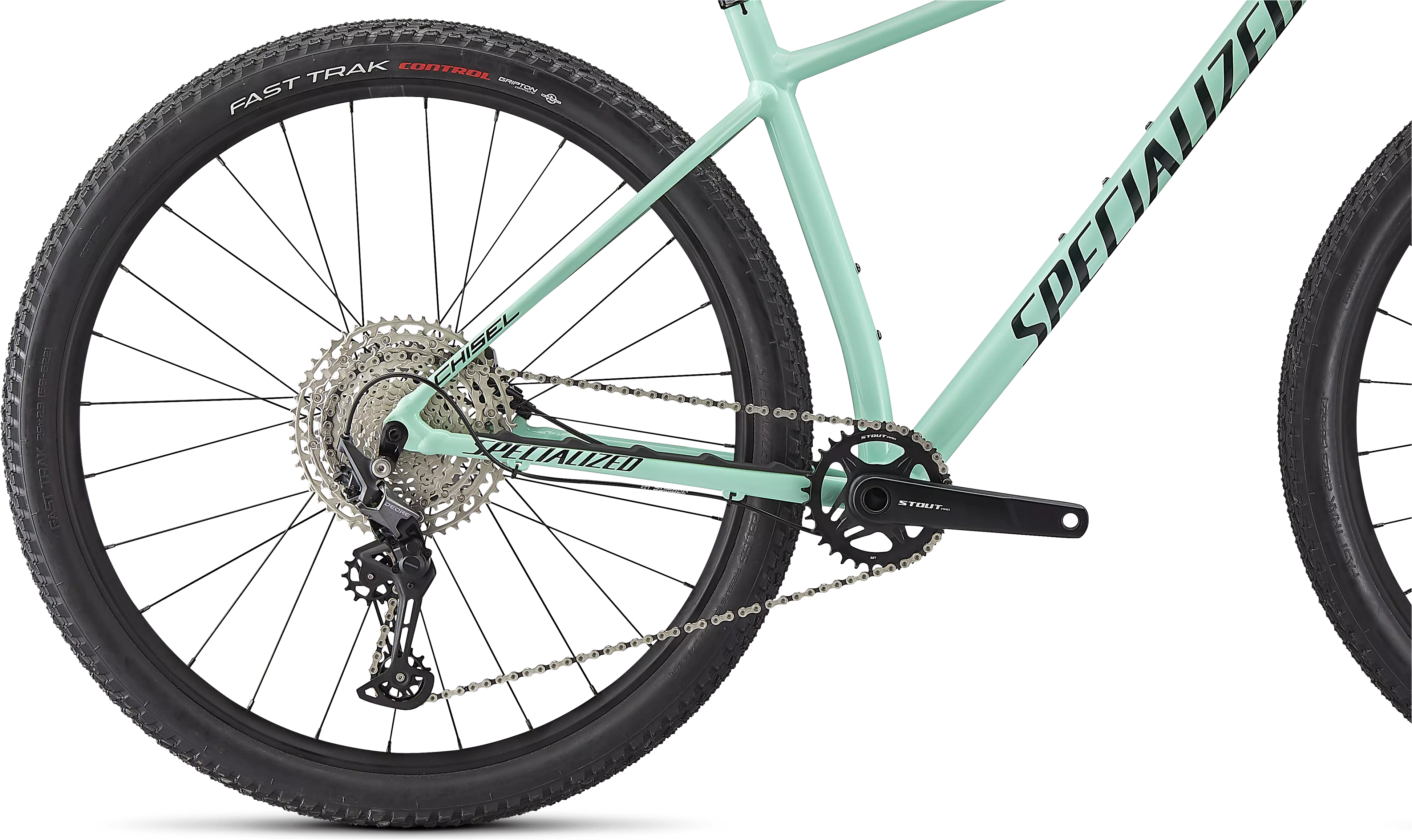

This Chisel comes spec'd with Shimano's tried and true Deore 1x12 speed drivetrain and MT400 hydraulic disc brakes, a RockShox Judy Silver fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.
The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Alloy, 2-bolt clamp, 30.9mm
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Tape
Specialized Trail Grips
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Chain
KMC X12, 12-speed w/ Missing Link™
Crankset
Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring
Bottom Bracket
BSA for 24mm spindle
Rims
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Front Hub
Shimano MT410-B, Centerlock 28h, 15x110 Boost
Rear Hub
Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
Front Tire
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rear Tire
Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Inner Tubes
Presta, 60mm valve
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy 34.9
Pedals
Spokes
Stainless, 14g
Front Brake
Shimano M4100, 2-piston caliper, hydraulic disc
Rear Brake
Shimano M4100, 2-piston, 180/160mm
Fork

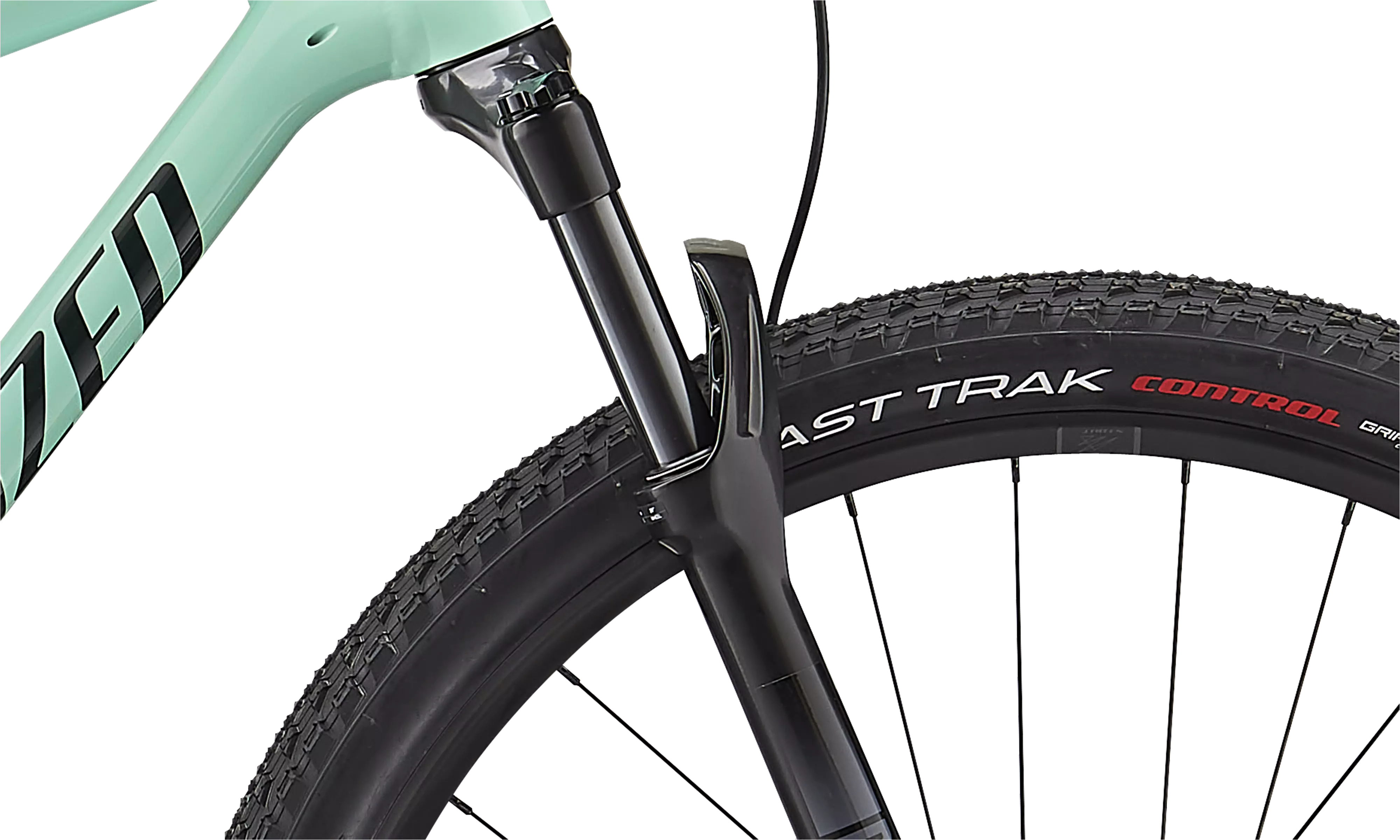

RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
Stack | 591mm | 605mm | 605mm | 619mm | 633mm |
Reach | 385mm | 405mm | 430mm | 455mm | 480mm |
Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm |
Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
BB Height | 304mm | 309mm | 309mm | 309mm | 309mm |
BB Drop | 68mm | 63mm | 63mm | 63mm | 63mm |
Trail | 103mm | 103mm | 103mm | 103mm | 103mm |
Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 647mm | 674mm | 699mm | 730mm | 760mm |
Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm |
Wheelbase | 1070mm | 1099mm | 1124mm | 1154mm | 1185mm |
Top Tube Length, Horizontal | 555mm | 578mm | 603mm | 632mm | 661mm |
Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm |
Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
