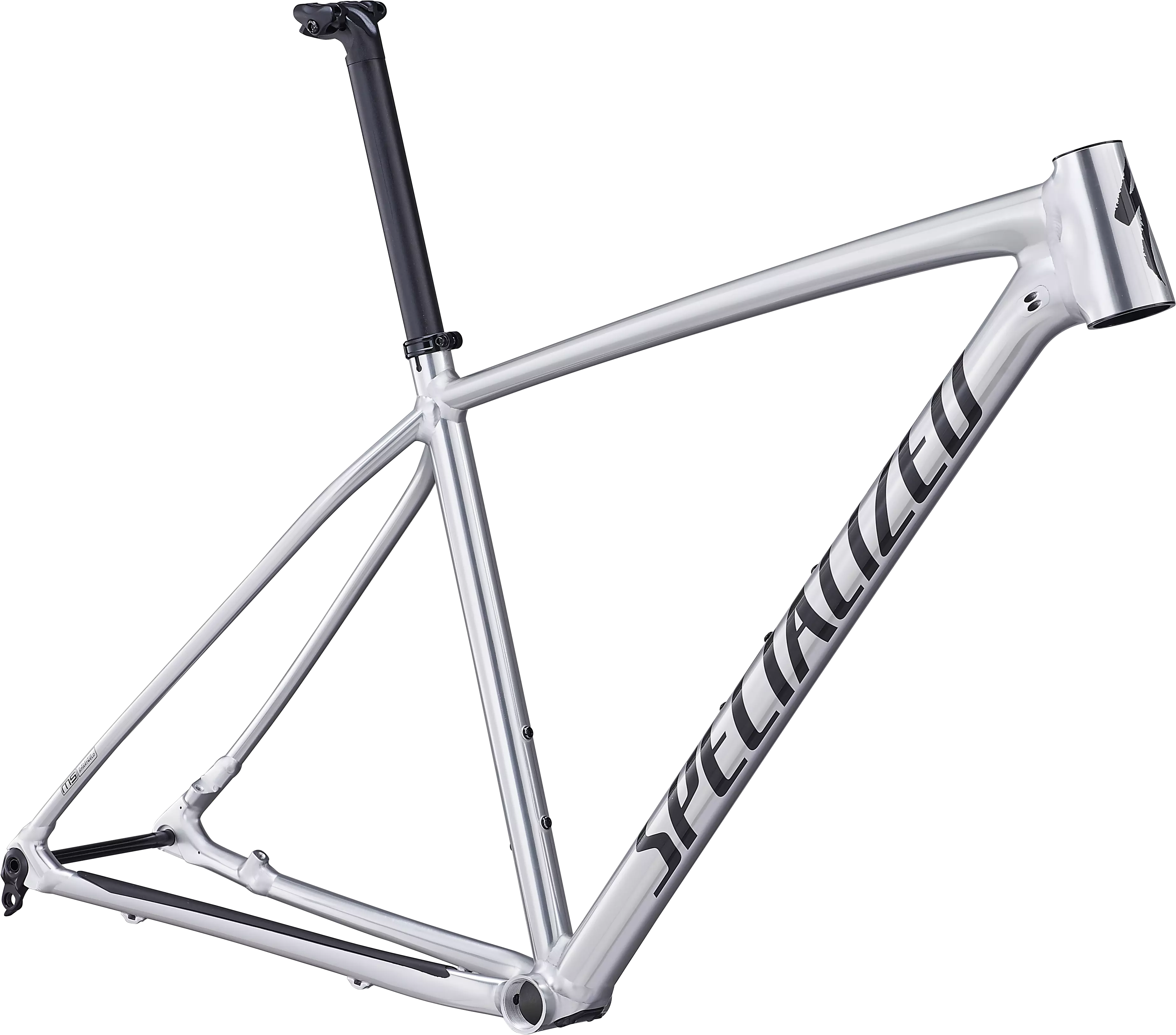

2019 Chisel Frame

0 Reviews

Carbon isn't the only material that gets to have all the fun—the alloy Chisel frameset…

Product Details

Add Icon

Carbon isn't the only material that gets to have all the fun—the alloy Chisel frameset is the perfect combination of light overall weight, stiffness, durability, and alloy. Consider it the perfect start to your XC build.

Traditional welding methods create frame joints by connecting tubes to cylinders, leaving the performance and security of the connection up to the skill of the welder. D'Aluisio (DSW), however, allows us to move the joint away from the area of the highest stress, making for a lighter frameset that's stiff, compliant, and incredibly strong—the optimal characteristics of a hardtail XC rig. So what does this mean for you? You'll be powering up climbs, shredding singletrack, and everything in between on a bike that has you questioning why alloy's gotten such a bad rap.

And to further improve this feel, the Chisel also features our XC geometry, which took our previous XC race geo and added some trail DNA to the mix. This equates to a longer top tube, a shortened head tube, and a slacked out front-end, the result of which is a tremendous increase in downhill stability, plus a wider range of fit. And just as importantly, this doesn't require any sacrifice of climbing proficiency.

  • Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry, D'Aluisio Smartweld technology, and internal cable routing, you get a bike that compromises nothing in delivering explosive speed, confident handling, and hassle-free maintenance.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake

COCKPIT

SEAT BINDER

Alloy, 30.8mm

SEATPOST

Specialized, alloy, single-bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Seatpost Length350mm400mm400mm400mm
Stack595mm605mm619mm633mm
Reach395mm418mm441mm462mm
Head Tube Length95mm95mm110mm125mm
Head Tube Angle69.8°69.8°69.8°69.8°
BB Height312.5mm312.5mm312.5mm312.5mm
BB Drop57.5mm57.5mm57.5mm57.5mm
Trail82mm82mm82mm82mm
Fork Length, Full496mm506mm506mm506mm
Fork Rake/Offset51mm51mm51mm51mm
Front Center650mm676mm704mm730mm
Chainstay Length430mm430mm430mm430mm
Wheelbase1073mm1100mm1128mm1154mm
Top Tube Length, Horizontal567mm594mm622mm648mm
Bike Standover Height760mm790mm814mm845mm
Seat Tube Length400mm430mm470mm520mm
Seat Tube Angle74°74°74°74°
