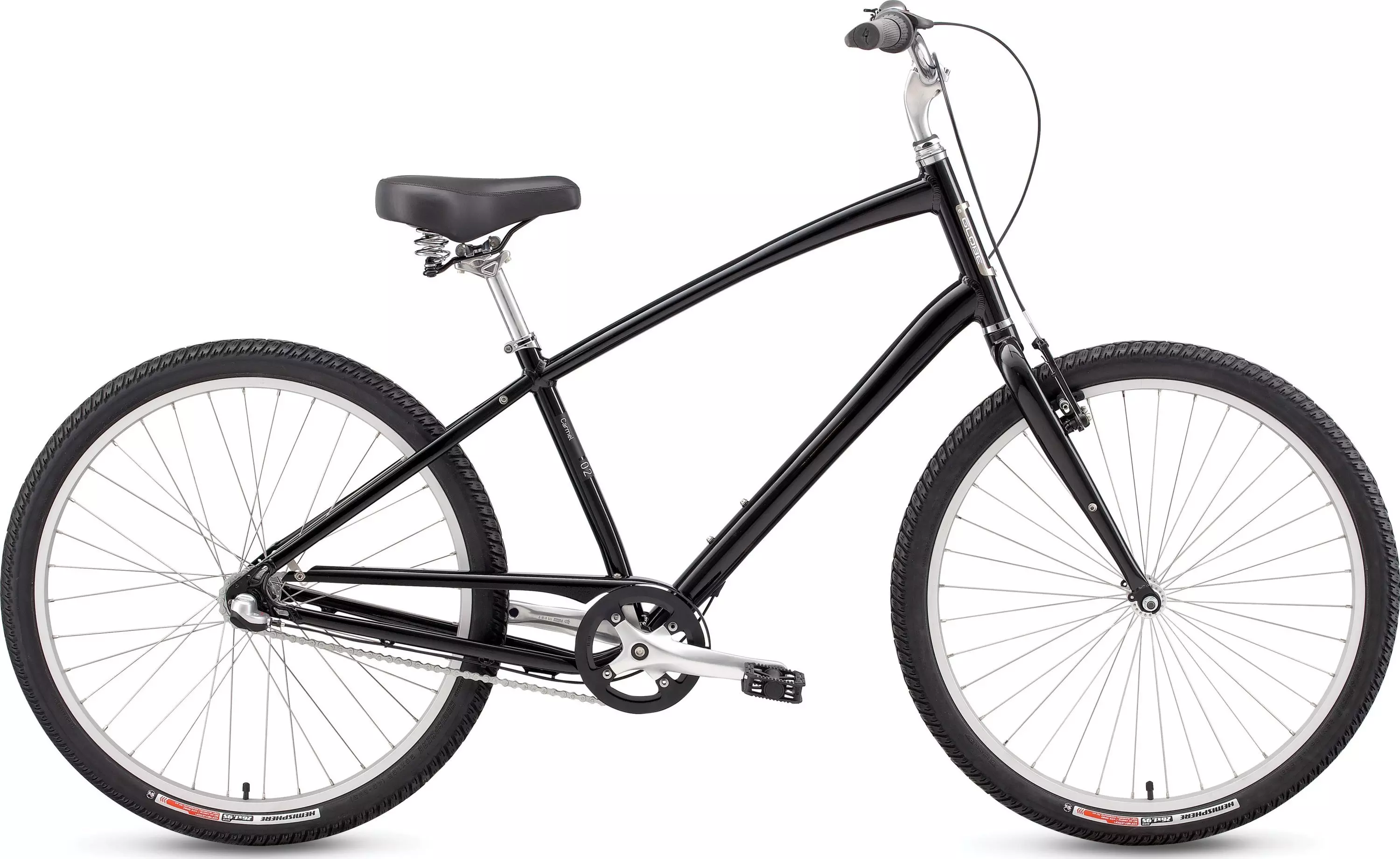

2010 Carmel 2

0 Reviews

Riders looking for nothing more than carefree, open-air goodness will find the…

Product Details

Riders looking for nothing more than carefree, open-air goodness will find the plush, cruiser-style CARMEL is the perfect partner for beaches, bike paths, dirt and gravel trails.

Coaster brakes for effortless stopping
Body Geometry Comfort grips alleviate hand pain and tingling fingers
Slim and effective color-matched alloy chainguard keeps your duds clean
Shimano internally geared 3-speed hub for quick, easy shifting and low maintenance
Steel fork is a simple, durable and maintenance-free alternative to suspension forks
High-volume Specialized Hemisphere 26-inch tires use Flak Jacket protection to ward off flats
Globe A1 Premium Aluminum frame with Ground Control geometry for an upright, stable seating position
Globe Comfort Plus saddle uses springs and dual-density foam with a wide platform for amazing comfort

Technical Specifications

FRAMESET

FRAME

Globe A1 Premium Aluminum, ground control geometry, 26"" comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger

FORK

Globe Carmel straight-blade steel fork

HEADSET

1-1/8"" threaded, sealed loose ball bearings

SEAT BINDER

Globe Chevron forged alloy, chrome plated

WHEELS

REAR HUB

Shimano internal 3-speed coaster brake, 18t

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection

REAR TIRE

Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection

INNER TUBES

Schraeder valve

RIMS

26"", single wall, 36h

FRONT HUB

Forged alloy w/ steel nutted axle

DRIVETRAIN

SHIFT LEVERS

Shimano Nexus, 3-speed

CASSETTE

Shimano 3-speed single cog, 18t

CHAIN

KMC 1/2x1/8""

CRANKSET

Sugino EX-1 aluminum, w/ alloy chainguard

CHAINRINGS

38t w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

STEM

Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp

HANDLEBARS

Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up

TAPE

Body Geometry Comfort, closed end, 92/132mm including bell

SADDLE

Comfort Plus with dual density foam and springs for extra comfort

SEATPOST

Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Coaster brake

BRAKE LEVERS

Alloy 4-finger, kraton lever pad, for twist shifter

ACCESSORIES

PEDALS

Composite platform body, sealed loose ball bearings

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD	LG	XL
Seat-Tube Angle	67°	67°	67.5°	67.5°
Head-Tube Length	200mm	220mm	240mm	260mm
Seat-Post Length	0mm	0mm	0mm	0mm
Head-Tube Angle	68.5°	68.5°	68.5°	68.5°
Chain-Stay Length	500mm	500mm	500mm	500mm
Top-Tube Length, Horizontal	610mm	625mm	640mm	655mm
Front-Center	642mm	656mm	677mm	691mm
Stand-Over Height	700mm	740mm	788mm	825mm
Seat-Tube Length, B-B Center to Top	370mm	425mm	480mm	535mm
Fork Rake	51mm	51mm	51mm	51mm
B-B Drop	59mm	59mm	59mm	59mm
Trail	79mm	79mm	79mm	79mm
Wheelbase	1135mm	1150mm	1171mm	1185mm
