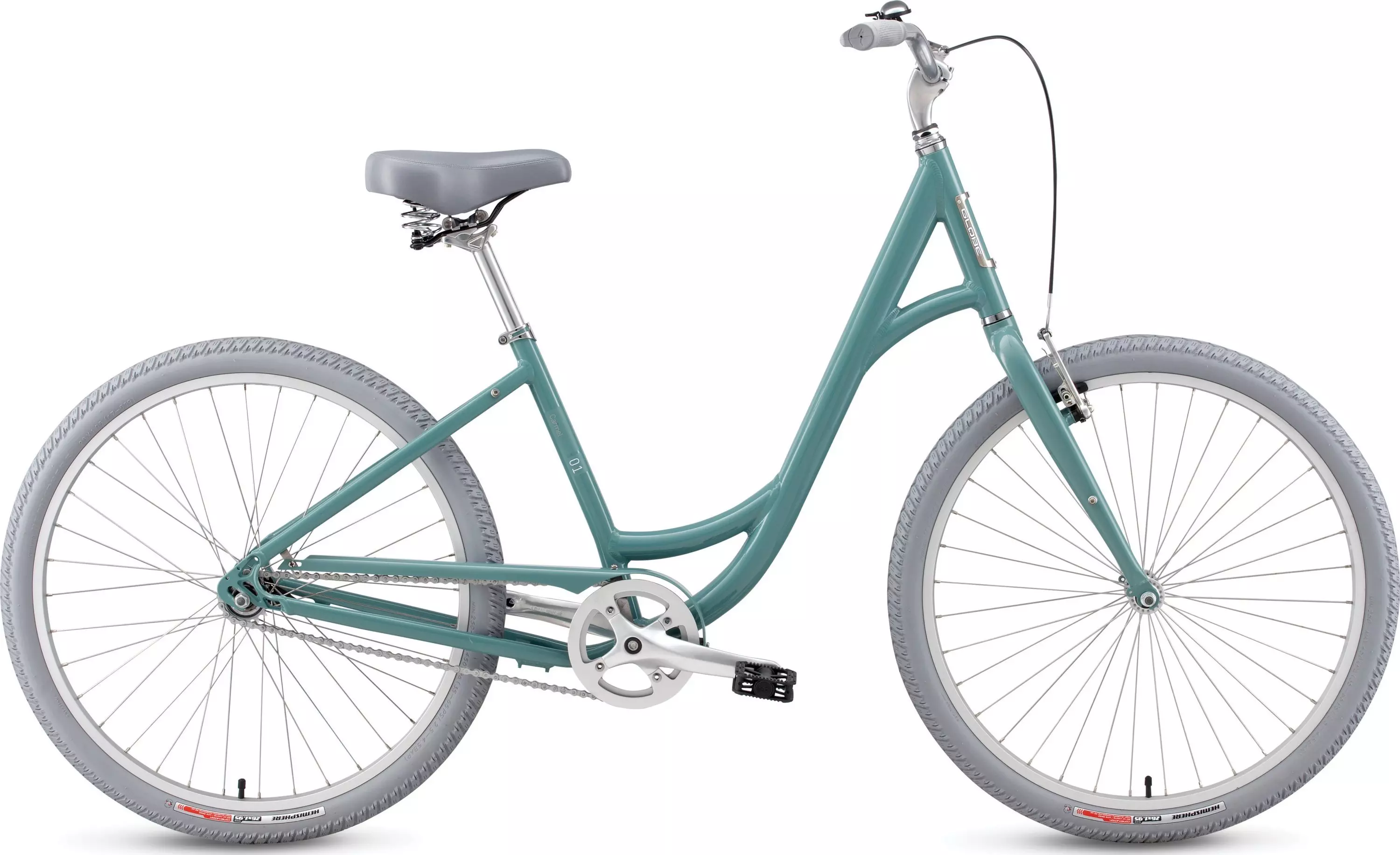

2010 Carmel 1 Low Entry

0 Reviews

Riders looking for nothing more than carefree, open-air goodness will find the…

Product Details

Riders looking for nothing more than carefree, open-air goodness will find the plush, cruiser-style CARMEL is the perfect partner for beaches, bike paths, dirt and gravel trails.

(Chaincase) Aluminium Chain Guard for Internal gearing
Globe Comfort Plus saddle uses springs and a wide platform for over-the-top comfort
High-volume Specialized Hemisphere 26-inch tires use Flak Jacket protection to ward off flats
Steel fork is a simple, durable and maintenance-free alternative to overbearing suspension forks
Women's Body Geometry Comfort grips (with integrated bell) alleviate hand pain and tingling fingers
Globe A1 Premium Aluminum frame with Ground Control geometry for an upright, stable seating position

Technical Specifications

FRAMESET

FRAME

Globe A1 Premium Aluminum, ground control geometry, 26"" low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger

FORK

Globe straight-blade steel fork

HEADSET

1-1/8"" threaded, sealed loose ball bearings

SEAT BINDER

Forged alloy

WHEELS

REAR HUB

Forged alloy, single speed

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection

REAR TIRE

Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection

INNER TUBES

Schraeder valve

RIMS

Alex Z-1000, 26"", single wall, 36h

FRONT HUB

Forged alloy w/ steel nutted axle, dual lock nuts

DRIVETRAIN

CASSETTE

See rear hub

CHAIN

KMC, Internal 8-speed, 1/2x1/8""

CRANKSET

Sugino EX-1 aluminum, w/ alloy chainguard

CHAINRINGS

38T w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

STEM

Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp

HANDLEBARS

Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up

TAPE

Women's Body Geometry Comfort w/ integrated bell, closed end, 132/126mm

SADDLE

Comfort Plus with dual density foam and springs for extra comfort

SEATPOST

Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

Alloy 4-finger, kraton lever pad, for twist shifter

ACCESSORIES

PEDALS

Composite platform body, sealed loose ball bearings

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD
Seat-Tube Angle	67°	67.5°
Head-Tube Length	200mm	220mm
Seat-Post Length	0mm	0mm
Head-Tube Angle	68.5°	68.5°
Chain-Stay Length	500mm	500mm
Top-Tube Length, Horizontal	610mm	625mm
Front-Center	642mm	656mm
Stand-Over Height	425mm	426mm
Seat-Tube Length, B-B Center to Top	370mm	425mm
Fork Rake	51mm	51mm
B-B Drop	59mm	59mm
Trail	79mm	79mm
Wheelbase	1135mm	1150mm
