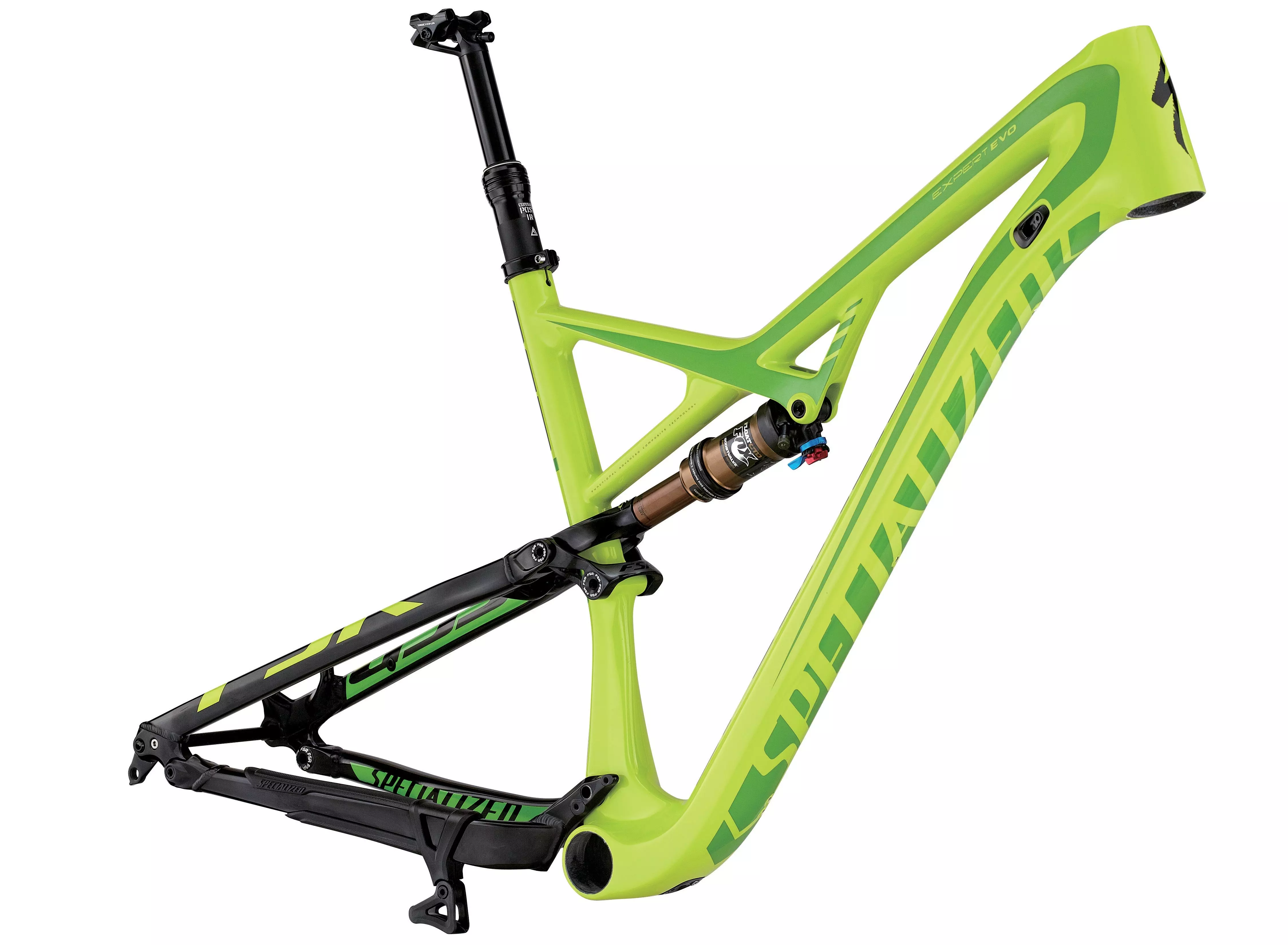

2015 Camber Expert Carbon EVO Frame

0 Reviews

Build your own 29er trail weapon with this 120mm-travel Camber Expert Carbon EVO…

Product Details

Build your own 29er trail weapon with this 120mm-travel Camber Expert Carbon EVO 29 frame, featuring a custom FOX Factory Series CTD shock with Kashima coating and Boost Valve.

Specialized Command Post IR w/ SRL and standard remote lever options to adjust saddle height on-the-fly
FACT 9m carbon 120mm-travel frame w/ 29er EVO geometry for an aggressive trail weapon
Custom Fox Float CTD Factory Series shock w/ AUTOSAG for premium on-trail performance

Technical Specifications

FRAMESET

FRAME

FACT 9m carbon front triangle, 29"" EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm travel

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX Float CTD Factory w/ AUTOSAG, custom EVO tune, Kashima coating, Climb, Trail, Descend settings w/ Trail and rebound adjust, 197x51mm

COCKPIT

SEATPOST

Command Post IR, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm, includes standard/SRL levers

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Bottom Bracket Height - Low Setting	330mm	330mm	330mm	330mm
Top Tube Length (Horizontal)	560mm	592mm	617mm	645mm
Head Tube Height	90mm	100mm	125mm	150mm
Head Tube Angle - Low Setting	68.8°	68.8°	68.8°	68.8°
Seat Tube Angle (Actual) - Low Setting	68.8°	68.8°	68.8°	68.8°
Seat Tube Angle (Effective) - Low Setting	73.8°	73.6°	73.3°	73°
Top Tube Length (Actual)	564mm	595mm	618mm	646mm
Seat Tube Length - Center to Top	394mm	430mm	468mm	523mm
Wheel Base	1104mm	1135mm	1161mm	1190mm
Standover Height	736mm	741mm	745mm	756mm
Stack	599mm	609mm	633mm	657mm
Reach	387mm	416mm	432mm	454mm
Chainstay Length	451mm	451mm	451mm	451mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	100mm
Seatpost Length	350mm	350mm	400mm	400mm
