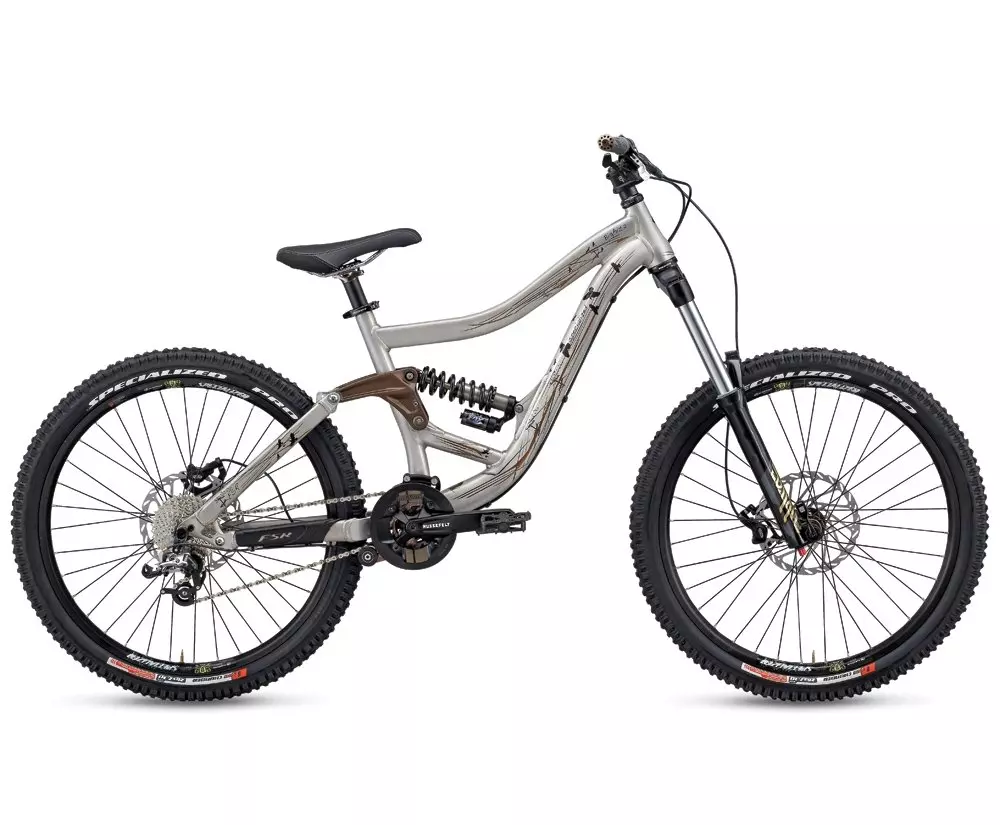

2009 BigHit FSR II
0 Reviews
A TOP-DOLLAR RIDE AT AN ENTRY-LEVEL PRICE. Borrowing generously from our Demo technology,…
Product Details
A TOP-DOLLAR RIDE AT AN ENTRY-LEVEL PRICE. Borrowing generously from our Demo technology, the new Big Hit lives up to its name on punishing terrain with a stout frame and 6.75 to 7.5 inches of travel. The new design with lower standover and more seatpost adjustment makes this bomb-proof ride even more accessible to a larger range of riders.
A Fox Vanilla R coil shock custom-tuned for the BigHit's FSR telemetry. External rebound adjust prevents bucking after big hits and large oil volume guarantees consistent performance even on long runs.
Rock Shox Domain 302 fork features 180mm of coil-sprung travel for buttery bump absorption. 20mm Maxle thru-axle boosts steering precision and allows tool-free removal.
Specialized Aggro stem features an oversized diameter and four-bolt clamp for extra durability.
Avid Juicy 4R hydraulic brakes feature 203mm rotors for added stopping power. Metallic pads work dependably in any situation and have superior durability. Juicy 4R levers are ergonomic for added comfort and feature a tool-free reach adjustment
SRAM X-9 rear derailleur guarantees precise shifting with minimum effort. 6061 Aluminum construction improves stiffness for quicker shifts.
Technical Specifications
FRAMESET
FRAME
BigHit FSR, M4 Manipulated Alloy ORE TT/DT, full cartridge bearing pivots, ISCG mount, asymetrical rear triangle, 7.5"" travel
HEADSET
1-1/8"" to 1.5"" Threadless, alloy, cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox Van R coil piggy back, 8.5x2.5"", rebound adj., S:400, M:450, L:500
FORK
RockShox Domain 302, 180mm travel, coil spring, external rebound adj., 20mm thru-axle w/ Maxle 360, 1-1/8"" to 1.5"" tapered alloy steerer tube
WHEELS
FRONT TIRE
Specialized Clutch SX 26x2.3"", 60 TPI, aramid bead, cap ply, soft dual compound
REAR TIRE
Specialized Clutch SX 26x2.3"", 60 TPI, aramid bead, cap ply, soft dual compound
INNER TUBES
Specialized 26x2.3"", schrader
RIMS
Specialized P-Disc, 32mm, 36h
FRONT HUB
Specialized Hi-Lo disc, 20mm thru-axle, 36h
REAR HUB
Specialized disc, 135mm, machined flange, sealed cartridge bearing, bolt on, 36h
SPOKES
2.0mm stainless, black, brass nipples
DRIVETRAIN
REAR DERAILLEUR
SRAM X-9, 9-speed, short cage
SHIFT LEVERS
SRAM X-5, trigger, 9-speed
CASSETTE
Shimano HG50, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Truvativ Hussefelt, 170mm w/ SBC chain guide
CHAINRINGS
34t, 4-bolt, compact 104mm pattern
BOTTOM BRACKET
Truvativ Howitzer XR, oversize sealed outboard cartridge bearing, 73mm shell
COCKPIT
STEM
Specialized Aggro stem, 35mm extension, OS 31.8, 4-bolt, forged
HANDLEBARS
Specialized Big Hit rise bar, 31.8mm, 6 degree up, 9 degree backsweep, 680mm wide
GRIPS
Specialized thin lock on grip, alloy bar ends
SADDLE
Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam
SEATPOST
6061 butted alloy, two-bolt, 0 offset, 30.9x300mm
BRAKES
FRONT BRAKE
Avid Juicy 4R, full hydraulic, tool-less reach adjust, metallic pads, 203mm rotor
REAR BRAKE
Avid Juicy 4R, full hydraulic, reach adjust, metallic pads, 203mm rotor
BRAKE LEVERS
Avid Juicy 4R Hydraulic
ACCESSORIES
PEDALS
Specialized Lo-Pro alloy
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Bottom Bracket Height - Low Setting | 365mm | 365mm | 365mm |
| Top Tube Length (Horizontal) | 563mm | 586mm | 608mm |
| Head Tube Height | 120mm | 120mm | 120mm |
| Head Tube Angle - Low Setting | 65.5° | 65.5° | 65.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 75° | 75° | 75° |
| Top Tube Length (Actual) | 535mm | 554mm | 576mm |
| Seat Tube Length - Center to Top | 394mm | 419mm | 458mm |
| Wheel Base | 1162mm | 1185mm | 1207mm |
| Standover Height | 758mm | 763mm | 750mm |
| Chainstay Length | 426mm | 426mm | 426mm |
| Crank Length | 170mm | 170mm | 170mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 40mm | 40mm | 40mm |
| Seatpost Length | 300mm | 300mm | 300mm |
