2010 Ariel
0 Reviews
As the only true women's-specific hybrid bike on the market, our Ariel is your all-access…
Product Details

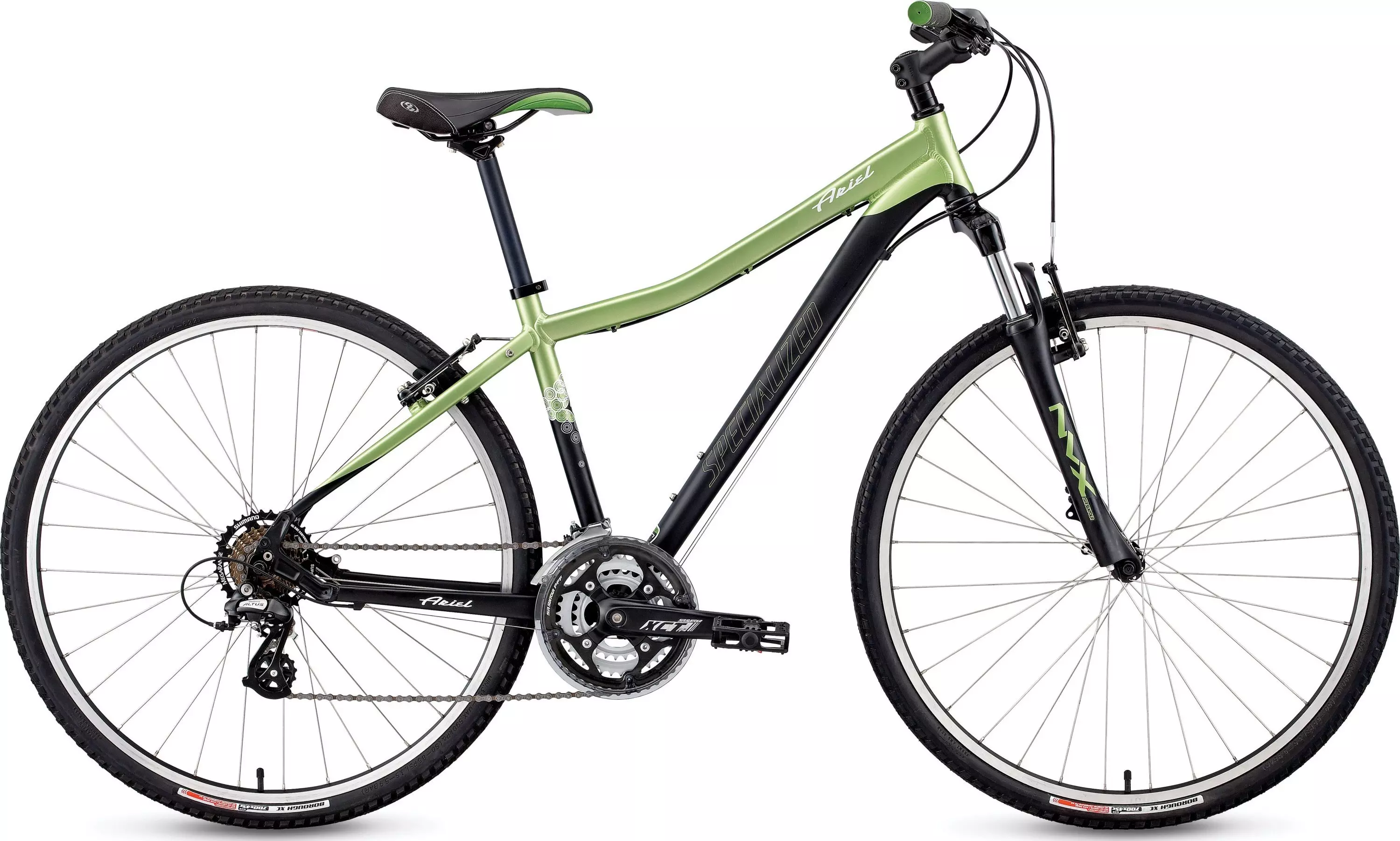

As the only true women's-specific hybrid bike on the market, our Ariel is your all-access pass to road and mountain riding. For women who want one stable and lightweight bike to cover all bases, the Ariel's ultra low standover height, 700c tires and MTB drivetrain make it light and nimble on the road, but strong and capable on the trail.
Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
75mm-travel coil-sprung fork with alloy lowers allows this hybrid to go off-road with ease
Women's A1 Premium Aluminum frame with low standover for lightweight confidence on both dirt and pavement
Triple-chainring crankset gives you all the gears you need for varied terrain, with a Shimano Altus rear derailleur for reliable shifting
Technical Specifications
FRAMESET
FRAME
Ariel A1 Premium Aluminum, low standover women's geometry frame, forged dropouts w/ replaceable hanger, integrated kickstand mount
HEADSET
1-1/8"" threadless, sealed loose ball bearings
SEAT BINDER
Forged alloy
SUSPENSION
FORK
SR SunTour SF10-NVX-700C, alloy lower, 75mm travel, 28mm Hi-Ten stanchions, coil spring
WHEELS
FRONT TIRE
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
REAR TIRE
Specialized Borough XC Sport 700x45c, 60TPI, wire bead
INNER TUBES
Schraeder valve
RIMS
Alex Z-1000, 26"", single wall, 36h
FRONT HUB
Forged alloy, double sealed, ground race, QR
REAR HUB
Forged alloy, double sealed, ground race, freewheel type, QR
SPOKES
2mm (14g) stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Altus, 7-speed
SHIFT LEVERS
Shimano, ST-EF-50, 7-Speed, EZ fire plus
CASSETTE
Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range
CHAIN
KMC Z7 w/ reuseable Missing Link
CRANKSET
SR-Suntour 7-speed Crank Set, square, fully riveted plastic spider, w/ chainguard
CHAINRINGS
48 x 38 x 28T w/ chainguard
BOTTOM BRACKET
Cartridge bearing, square spindle with crank stop right side and capless bolts
COCKPIT
STEM
Melt Forged alloy, 2-bolt, 25.4mm, 15 degree rise
HANDLEBARS
Hi-Ten riser bar, 25.4mm, 32mm rise, 620mm wide, 8 degree back sweep, 6 degree up
GRIPS
Specialized Myka, closed end, 130mm
SADDLE
Specialized Body Geometry XC women's, front and rear bumpers, 155mm width
SEATPOST
Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. Pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Shimano EF-50 (integrated w/ shifter)
ACCESSORIES
PEDALS
Composite platform body, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 74° | 74° | 74° | 73.5° |
| Head-Tube Length | 100mm | 110mm | 120mm | 130mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 70° | 70° | 70° | 70.5° |
| Chain-Stay Length | 455mm | 455mm | 455mm | 455mm |
| Top-Tube Length, Horizontal | 575mm | 580mm | 595mm | 610mm |
| Front-Center | 643mm | 649mm | 664mm | 668mm |
| Stand-Over Height | 698mm | 737mm | 775mm | 812mm |
| Seat-Tube Length, B-B Center to Top | 381mm | 432mm | 483mm | 533mm |
| Fork Rake | 38mm | 38mm | 38mm | 38mm |
| B-B Drop | 65mm | 65mm | 65mm | 65mm |
| Trail | 88mm | 88mm | 88mm | 85mm |
| Wheelbase | 1090mm | 1096mm | 1111mm | 1115mm |
