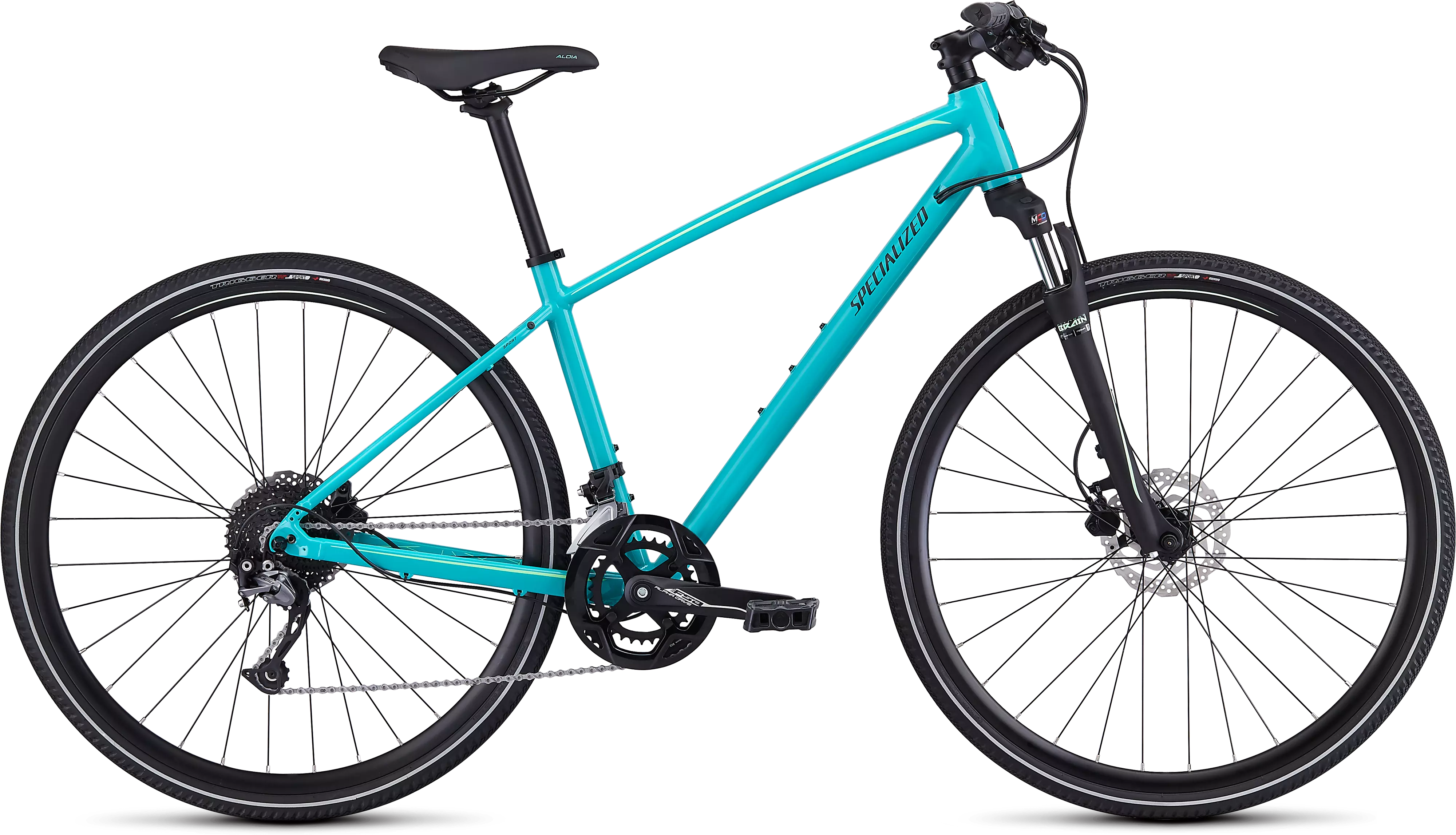

2019 Ariel Sport

0 Reviews

The Ariel Sport will see you tackling workouts on either paved or dirt surfaces with…

Product Details

The Ariel Sport will see you tackling workouts on either paved or dirt surfaces with equal confidence, and of course, you'll look good while doing it, too.

Its hard-working component package is paired with the ever-reliable A1 SL premium aluminum frame and powerful, no-nonsense hydraulic disc brakes. And with a Women's Fitness Geometry that's designed to keep you comfortable while you're burning up the miles, and features that are as versatile as they are efficient, you'll find yourself consistently needing to set new goals to achieve in your fitness quest.

Designed for women who want to mix adventure with fitness, the hard-working, sturdy A1 SL Premium Aluminum frame features our Women’s Fitness Geometry, so you’ll go faster with maximum efficiency, only without the discomfort of an aggressive ride position. The more comfortable you are, the longer you’ll ride.
An SR Suntour NEX fork w/ Fitness Brain technology features 55mm of coil-sprung travel that takes the sting out of bumpy terrain, while our Fitness Brain technology promotes more climbing and pedaling efficiency.
Braking duties are handled by Tektro HD-305/310 hydraulic disc brakes to ensure effective, consistent, and reliable power through any kind of terrain or condition.

Technical Specifications

FRAMESET

FRAME

Specialized A1 SL Premium Aluminum, Fitness Geometry, fully manipulated butted tubing, internal cable routing, flat-mount disc, rack, Plug + Play fender mounts

SUSPENSION

FORK

SR Suntour NEX w/ Specialized Fitness Brain technology, 1-1/8" steerer, QR, fender mounts, 55mm of travel

COCKPIT

HANDLEBARS

Double-butted alloy, 9-degree backsweep, 31.8mm

STEM

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

SADDLE

Specialized Aldia Sport, steel rails, 155mm

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 27.2mm

SEAT BINDER

Bolt-type, 31.8mm

BRAKES

FRONT BRAKE

Tektro HD-R305, hydraulic disc, resin pads, post-mount, 160mm Center Lock™

REAR BRAKE

Tektro HD-R310, hydraulic disc, resin pads, flat-mount, Shimano RT10 Center Lock™ 160mm

DRIVETRAIN

SHIFT LEVERS

microSHIFT, 9-speed

FRONT DERAILLEUR

microSHIFT Marvo LT, 31.8mm clamp

REAR DERAILLEUR

Shimano Alivio, Shadow Design, SGS cage, 9-speed

CASSETTE

SunRace, 9-Speed, 11-36t

CRANKSET

FSA Alpha Drive, 3-piece

CHAINRINGS

48/32T

BOTTOM BRACKET

BSA, square-taper, 68mm

CHAIN

KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™

WHEELS & TIRES

RIMS

700C disc, 6061 aluminum, double-wall

FRONT HUB

Shimano Center Lock™ disc, loose ball bearings, quick-release, 32h

REAR HUB

Shimano, Center Lock™ disc, 9x135mm spacing, quick-release, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

REAR TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

INNER TUBES

Presta, 48mm valve

ACCESSORIES

PEDALS

Specialized Body Geometry Fitness, platform, plastic

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L
Crank Length	165mm	165mm	170mm	170mm
Handlebar Width	640mm	640mm	660mm	660mm
Stem Length	60mm	70mm	80mm	90mm
Saddle Width	155mm	155mm	155mm	155mm
Seatpost Length	350mm	350mm	350mm	350mm
Seat Tube Length, BB Center to Top	355mm	375mm	425mm	475mm
Fork Rake	42mm	42mm	42mm	42mm
Standover Height	697mm	725mm	758mm	790mm
Stack	580mm	594mm	611mm	630mm
Reach	378mm	390mm	400mm	412mm
Head Tube Length	95mm	110mm	125mm	145mm
Head Tube Angle	70°	70°	70°	70°
BB Drop	65mm	65mm	65mm	65mm
Trail	87mm	87mm	87mm	87mm
Front Center	613mm	630mm	641mm	659mm
Chainstay Length	445mm	445mm	445mm	445mm
Wheelbase	1051mm	1067mm	1078mm	1096mm
Top Tube Length, Horizontal	555mm	572mm	587mm	604mm
Seat Tube Angle	73°	73°	73°	73°
