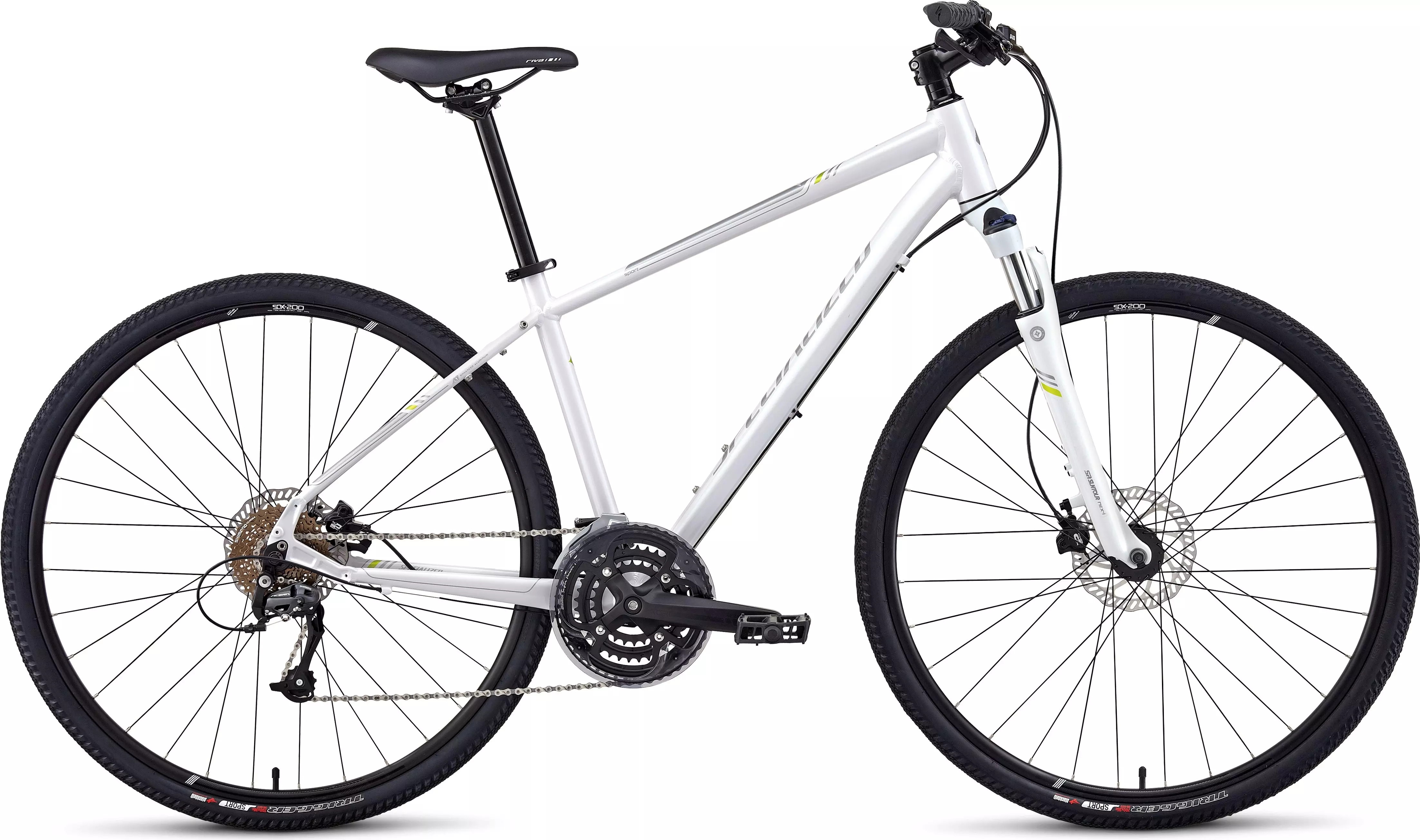

2014 Ariel Sport Disc

0 Reviews

With elements of both a road bike and mountain bike, the Ariel is for the female…

Product Details

With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Sport Disc features a A1 Premium Aluminum frame with Women's Fitness Geometry, Tektro Draco hydraulic disc brake, and a 75mm-travel SR Suntour fork for a plush ride.

Tektro Draco hydraulic disc brakes with dual pistons and women's shorter reach levers assure precision braking and fit
A1 Premium Aluminum frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility
SR Suntour 9-speed triple crankset and 11-32 cassette gives you all the gears you need for varied terrain, plus Shimano Acera rear derailleur for crisp and reliable shifting
Women's Body Geometry Riva saddle features a women's cutout and plush seating area for all-day riding comfort
SR Suntour 60mm-travel custom women's coil sprung fork with lockout and alloy lowers provides a capable and plush ride

Technical Specifications

FRAMESET

HEADSET

1-1/8"" FSA Ahead, semi-integrated, 8mm cone spacer

SEAT BINDER

Alloy, 31.8mm, QR, nylon washer

FRAME

Specialized A1 Premium Aluminum, Women's Fitness Geometry and tubesets, double-butted, w/ fender/rack braze-ons, forged dropouts, kickstand mount

SUSPENSION

FORK

SR Suntour NEXi Coil, custom women's coil spring, aluminum lower, custom integrated crown, mechanical lockout, 60mm travel

WHEELS

SPOKES

Stainless, 14g (2.0mm)

FRONT TIRE

Specialized Trigger Sport, 60TPI, wire bead, 700x38c

REAR TIRE

Specialized Trigger Sport, 60TPI, wire bead, 700x38c

FRONT HUB

Disc, double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR, round disc mount

REAR HUB

Disc, double-sealed, ground race, loose ball, dual-lock nuts w/ 19mm contact side, QR, 32h

RIMS

Disc, alloy double-wall, pin joint, 32h

INNER TUBES

Standard Schrader valve

DRIVETRAIN

CHAIN

KMC X9

REAR DERAILLEUR

Shimano Acera, 9-speed

CASSETTE

Shimano HG-20, 9-speed, 11-32

CRANKSET

SR Suntour XCR, 9-speed, square spindle, w/ chainguard

SHIFT LEVERS

Shimano SL-M390, Rapidfire

CHAINRINGS

48/36/26, w/ chainguard

BOTTOM BRACKET

Cartridge bearings, square spindle, capless bolts

FRONT DERAILLEUR

Shimano FDM-390, top-swing, dual-pull

COCKPIT

STEM

Melt-forged alloy, 4-bolt, 10-degree rise, 25.4mm clamp

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm

GRIPS

Specialized Body Geometry Women's XCT, lock-on

HANDLEBARS

Specialized XC riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm

SADDLE

Specialized Body Geometry Riva Women's, steel rails, 155mm

BRAKES

REAR BRAKE

Tektro Draco, hydraulic disc, dual piston, 160mm rotor

BRAKE LEVERS

Tektro Draco, hydraulic lever, women's shorter reach

FRONT BRAKE

Tektro Draco, hydraulic disc, dual piston, 160mm rotor

ACCESSORIES

PEDALS

Composite plastic body, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	SM	MD	LG	XL
Seat-Tube Angle	73°	73°	73°	73°	73°
Head-Tube Length	85mm	105mm	120mm	135mm	160mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70°	70°	70°	70°	70°
Chain-Stay Length	445mm	445mm	445mm	445mm	445mm
Top-Tube Length, Horizontal	560mm	572mm	585mm	600mm	615mm
Front-Center	616mm	629mm	643mm	658mm	675mm
Handle-Bar Width	660mm	660mm	660mm	660mm	660mm
Stand-Over Height	699mm	738mm	771mm	804mm	849mm
Seat-Tube Length, B-B Center to Top	345mm	395mm	440mm	485mm	550mm
Fork Rake	38mm	38mm	38mm	38mm	38mm
B-B Drop	60mm	60mm	60mm	60mm	60mm
Trail	91mm	91mm	91mm	91mm	91mm
Wheelbase	1054mm	1067mm	1081mm	1097mm	1113mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Stem Length	60mm	70mm	80mm	80mm	90mm
