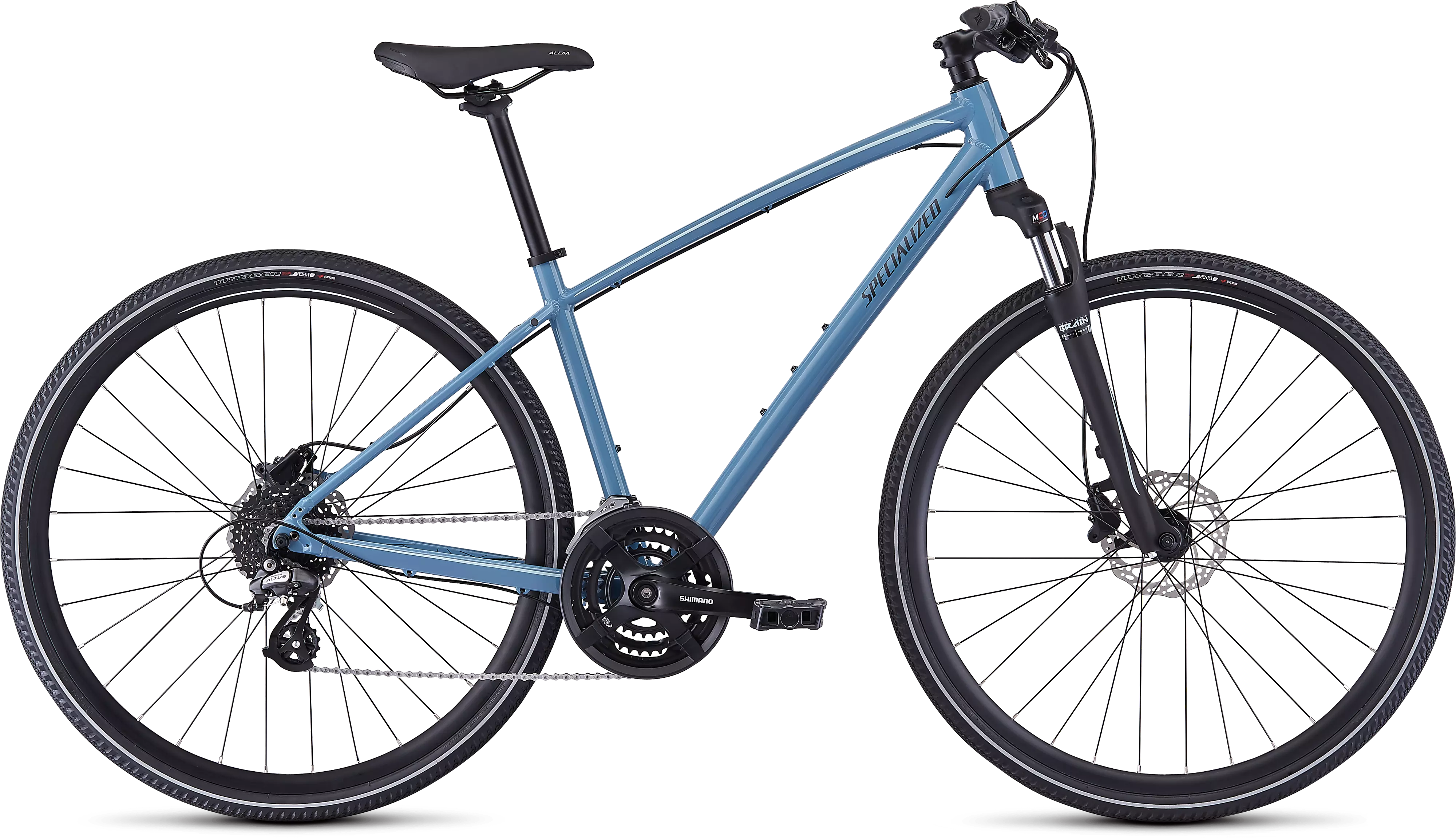

2019 Ariel – Hydraulic Disc

$670

Safety and control—two things that can be top-of-mind when heading out to get your…

Color:

Gloss Storm Grey/Ice Blue

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

Safety and control—two things that can be top-of-mind when heading out to get your heart rate up. This Ariel with hydraulic disc brakes takes care of safety with incredible stopping power, while control is provided through a women's-specific geometry and a custom suspension fork that'll have you tackling workouts on paved or dirt surfaces with equal confidence.

Not stopping there, we also included light and tough A1 premium aluminum frame tubing, workhorse components that are sized and designed specifically for women, and a wide range of gears that'll take the sting out of steep trails. It's everything you need to take your fitness wherever your heart decides, whether it's the road or the dirt around your house.

  • Designed for women who want to mix adventure with fitness, the hard-working, sturdy A1 Premium Aluminum frame features our Women’s Fitness Geometry—meaning that you’ll go faster with maximum efficiency, only without the discomfort of an aggressive ride position. The more comfortable you are, the longer you’ll ride.

  • An SR Suntour NEX fork w/ Fitness Brain technology features 55mm of coil-sprung travel that takes the sting out of bumpy terrain, while our Fitness Brain technology promotes more climbing and pedaling efficiency.

  • Braking duties are handled by Promax Solve hydraulic disc brakes that provide all of the hallmarks of hydraulic braking—consistent performance, easy engagement, and overall power.

Technical Specifications

Add Icon

SUSPENSION

FORK

SR Suntour NEX w/ Specialized Fitness Brain technology, 1-1/8" steerer, QR, fender mounts, 55mm of travel

COCKPIT

HANDLEBARS

Double-butted alloy, 9-degree backsweep, 31.8mm

STEM

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

SADDLE

Specialized Aldia Sport, steel rails, 155mm

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 27.2mm

SEAT BINDER

Bolt-type, 31.8mm

BRAKES

FRONT BRAKE

Promax Solve, hydraulic disc, post-mount, 160mm

REAR BRAKE

Promax Solve, hydraulic disc, post-mount, 160mm

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tourney, 3-speed, top-swing

REAR DERAILLEUR

Shimano Altus, 8-speed

CASSETTE

SunRace, 8-speed, 11-34t

CRANKSET

Shimano Tourney, TY501

CHAINRINGS

48x38x28T

BOTTOM BRACKET

68mm, square taper, 124.5mm length

CHAIN

KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™

SHIFT LEVERS

Shimano Acera, 8-speed

WHEELS & TIRES

RIMS

700C disc, 6061 aluminum, double-wall

FRONT HUB

Alloy, 6-bolt disc, loose ball bearing, quick-release, 32h

REAR HUB

Alloy, 6-bolt disc, 8-/9-speed freehub, loose ball bearing, quick-release, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

REAR TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

INNER TUBES

Schrader valve

ACCESSORIES

PEDALS

Specialized Body Geometry Fitness, platform, plastic

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSML
Crank Length165mm165mm170MM170MM
Handlebar Width640mm640mm660mm660mm
Stem Length60mm70mm80mm90mm
Saddle Width155mm155mm155mm155mm
Seatpost Length350mm350mm350mm350mm
Stack572mm586mm602mm621mm
Reach378mm390mm400mm412mm
Head Tube Length85mm100mm115mm135mm
Head Tube Angle70°70°70.5°70.5°
BB Height288mm288mm288mm288mm
BB Drop65mm65mm65mm65mm
Trail84mm84mm81mm81mm
Fork Length, Full465mm465mm465mm465mm
Fork Rake/Offset42mm42mm42mm42mm
Front Center611mm628mm638mm657mm
Chainstay Length445mm445mm445mm445mm
Wheelbase1048mm1065mm1075mm1094mm
Top Tube Length, Horizontal553mm569mm584mm602mm
Bike Standover Height700mm725mm760mm790mm
Seat Tube Length325mm375mm425mm475mm
Seat Tube Angle73°73°73°73°
