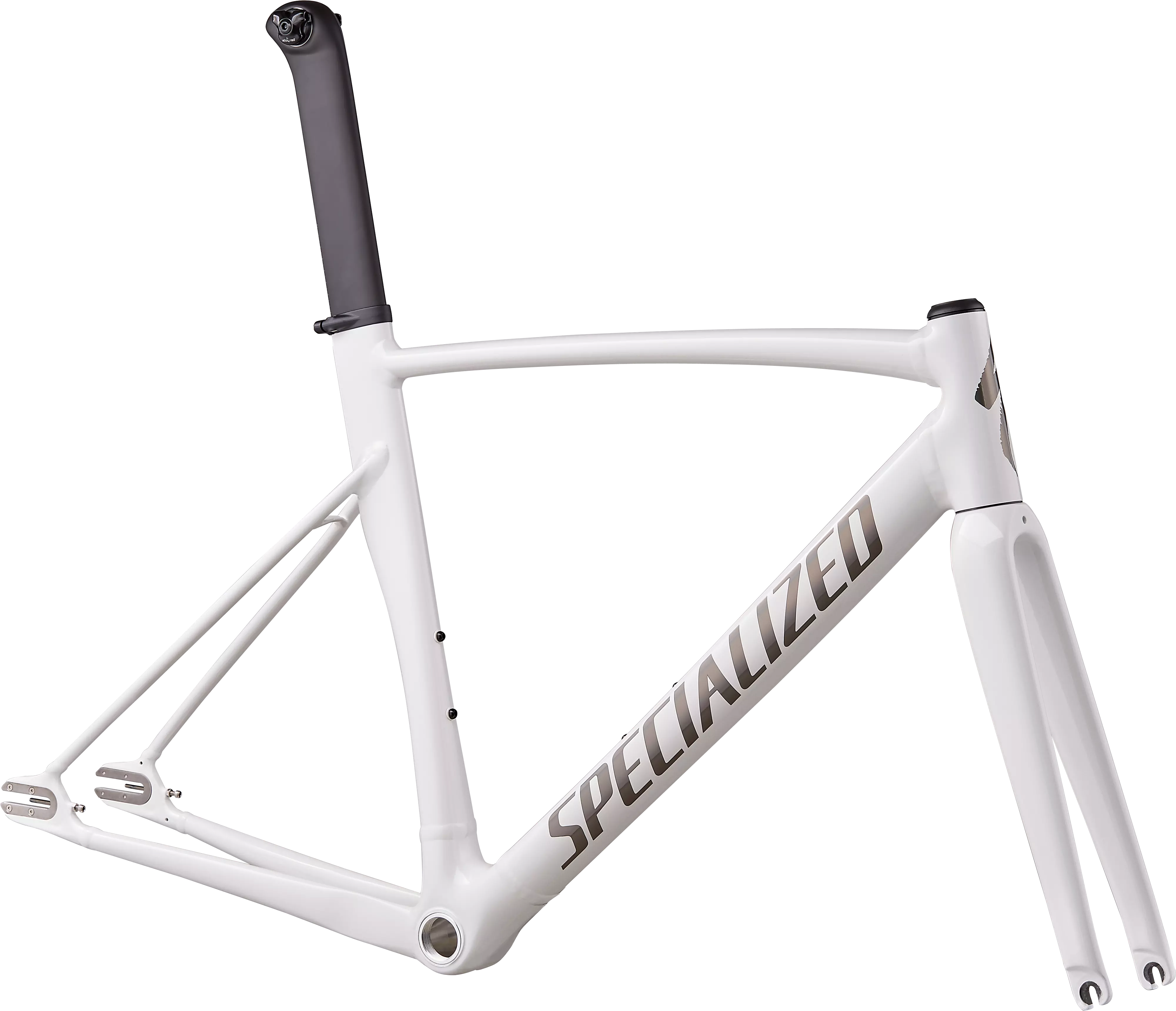

2020 Allez Sprint Track Frameset

$1,200

5

1 Reviews

Whether you're tearing through city streets, commuting, flying through roaring crowds…

Product Details

Add Icon

Whether you're tearing through city streets, commuting, flying through roaring crowds in a fixed-gear crit, or racing on the velodrome, the Allez Sprint Track is right at home.

This Allez Sprint Track frameset comes equipped with a Tarmac SL6 FACT carbon fiber fork and a Venge Aero seatpost that's also made from FACT carbon.

  • At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

  • To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.

  • Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

  • Our top-tier Tarmac FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.

Technical Specifications

Add Icon

COCKPIT

SeatPost

Allez Sprint Seatpost, 20mm setback

Seat Binder

Allez Sprint Aero

Suspension

Fork

S-Works FACT full carbon, size-specific taper

FRAMESET

Frame

Specialized E5 Premium Aluminum w/D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB, track dropouts

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Seatpost Length330mm330mm330mm330mm330mm330mm
Stack496mm507mm527mm547mm576mm597mm
Reach387mm389mm394mm404mm410mm415mm
Head Tube Length100mm110mm130mm150mm180mm200mm
Head Tube Angle73.5°74°74°74.5°74.5°75°
BB Height281mm281mm281mm281mm281mm281mm
BB Drop59mm59mm59mm59mm59mm59mm
Trail55mm52mm52mm49mm49mm46mm
Fork Length, Full368mm368mm368mm368mm368mm368mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center565mm566mm577mm588mm602mm608mm
Chainstay Length400mm400mm400mm400mm400mm400mm
Wheelbase958mm959mm969mm981mm995mm1000mm
Top Tube Length, Horizontal522mm525mm535mm551mm564mm575mm
Bike Standover Height799mm813mm833mm849mm876mm901mm
Seat Tube Length460mm480mm500mm520mm540mm570mm
Seat Tube Angle74.5°75°75°75°75°75°
Geometry

Rider Reviews

5

1 Reviews



Unique, Beautiful & Fast

The pearl white with chrome decals are legit! The frame is very stiff, noticeable when you hop out of the saddle but also absorbs the harsh bumps of the road. Outfitted with a flip-flop hub with a fixed/ freewheel cog, Dura-Ace cranks/ chainring, Reynolds Carbon 60 mm Tubular Aero Wheels with 28mm Michelin Power Competition/ Cup Tubular rubber, Carbon FACT fork has a mount for a front brake caliper, SRAM Force in Matte Black and a Dura-Ace Carbon Tri-bike brake lever, the cockpit is very clean. When I'm not riding it, I love to just look at it, it just looks FAST and when riding it around town, Lake Tahoe, local bike paths, etc., I always get compliments and much surprise that it's a single speed. I prefer the fixed cog set-up, it forces you to become much more aware of your surroundings and thinking well ahead for the challenges that approach. I don't think I'll ever get rid of it. It's a future classic. If you can find one, I highly recommend picking one up...

Would Recommend?
Yes!

Name:
Rueben
