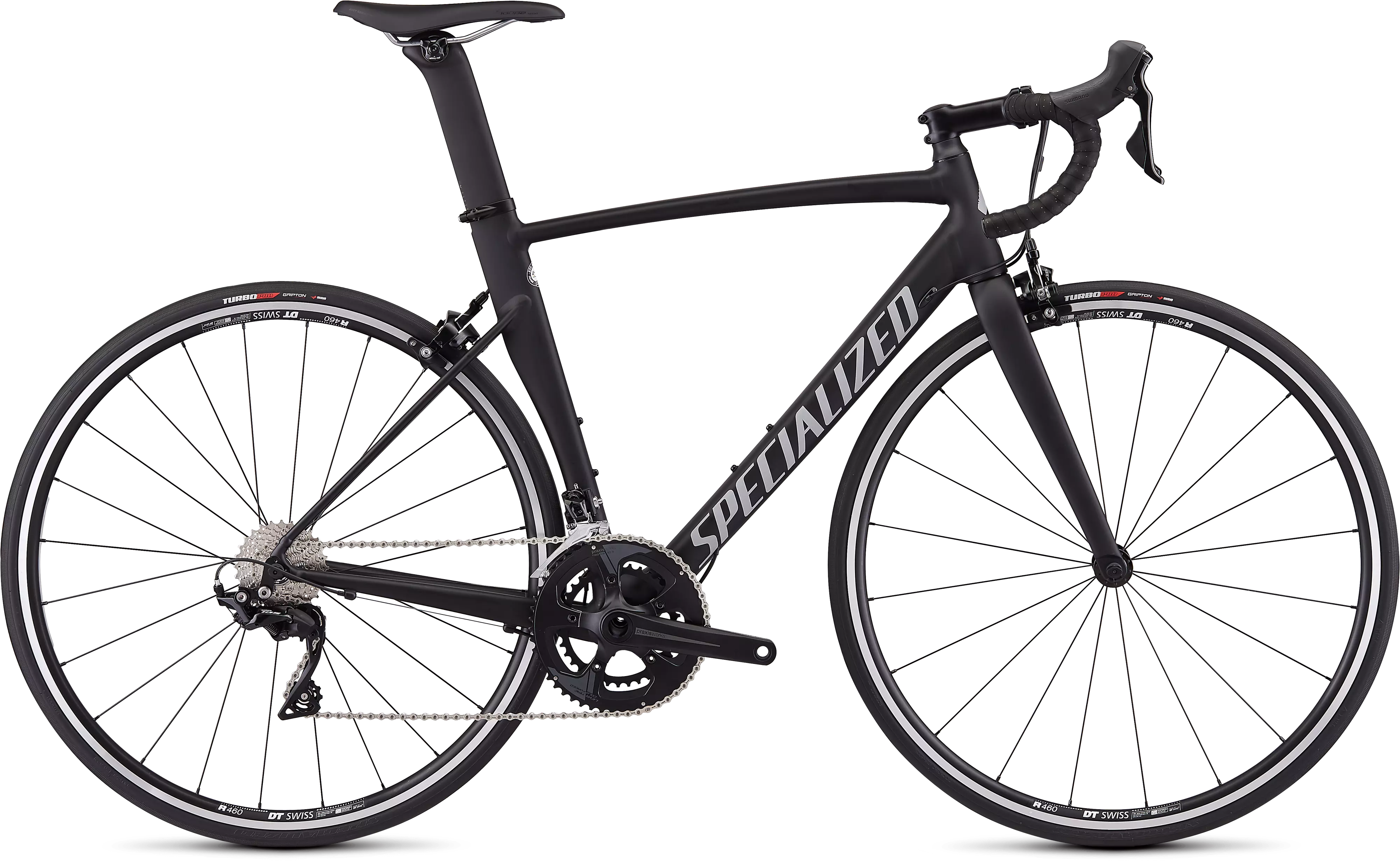

Climbs, corners, flat-out sprints—the Allez Sprint Comp does it all. Being the most…
Climbs, corners, flat-out sprints—the Allez Sprint Comp does it all. Being the most advanced alloy road bike we've ever made, the Allez Sprint is capable as a crit-racing weapon or an everyday road steed. But even better, it performs all of the above at a price that's affordable for any racer's budget.
At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.
For the build, we spec'd it with Shimano 105 shifting, DT R460 alloy wheels, and a comfortable Body Geometry Toupé saddle. With all of these features, the Allez Sprint Comp redefines the potential of an alloy bike, so much so, that you'll forget you're not riding carbon.
E5 Premium Aluminum frame with Allez D'Aluisio Smartweld Sprint Technology refocuses weld locations, allowing for more material to be placed strategically for increased stiffness and compliance where you need it most.
Our top-tier S-Works FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.
Shimano 105 handles the shifting duties in spades, delivering smooth, crisp, precise shifts no matter the conditions.
FRAME
Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
FORK
S-Works FACT full carbon, size-specific taper
HANDLEBARS
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
TAPE
Specialized S-Wrap
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Specialized Venge Aero seatpost, FACT carbon
SEAT BINDER
Allez Sprint Aero
REAR BRAKE
Shimano 105 R7000
FRONT BRAKE
Shimano 105 R7000
SHIFT LEVERS
Shimano 105 R7000, 11-speed
FRONT DERAILLEUR
Shimano 105 R7000, 11-speed, clamp-on
REAR DERAILLEUR
Shimano 105 R7000 GS, medium cage, 11-speed
CASSETTE
Shimano R7000, 11-speed, 11-28t
CRANKSET
Praxis Zayante, BB30
CHAINRINGS
52/36T
BOTTOM BRACKET
Praxis 6806 bearings
CHAIN
KMC X11 EL, 11-speed w/ Missing Link™
FRONT WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 20h
REAR WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 24h
FRONT TIRE
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm
REAR TIRE
Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm
INNER TUBES
Presta, 40mm valve
PEDALS
Nylon, 105x78x28mm, loose ball w/reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 330mm | 330mm | 330mm | 330mm | 330mm | 330mm |
Stack | 502mm | 514mm | 533mm | 554mm | 583mm | 604mm |
Reach | 375mm | 380mm | 385mm | 395mm | 400mm | 405mm |
Head Tube Length | 100mm | 110mm | 130mm | 150mm | 180mm | 200mm |
Head Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
BB Height | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm |
BB Drop | 69mm | 69mm | 69mm | 69mm | 69mm | 69mm |
Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 564mm | 566mm | 577mm | 589mm | 602mm | 608mm |
Chainstay Length | 405mm | 405mm | 405mm | 405mm | 405mm | 407mm |
Wheelbase | 959mm | 961mm | 972mm | 984mm | 997mm | 1005mm |
Top Tube Length, Horizontal | 519mm | 527mm | 538mm | 554mm | 567mm | 578mm |
Bike Standover Height | 732.3mm | 745.8mm | 765.5mm | 784.3mm | 808.3mm | 833.8mm |
Seat Tube Length | 460mm | 480mm | 500mm | 520mm | 540mm | 570mm |
Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
