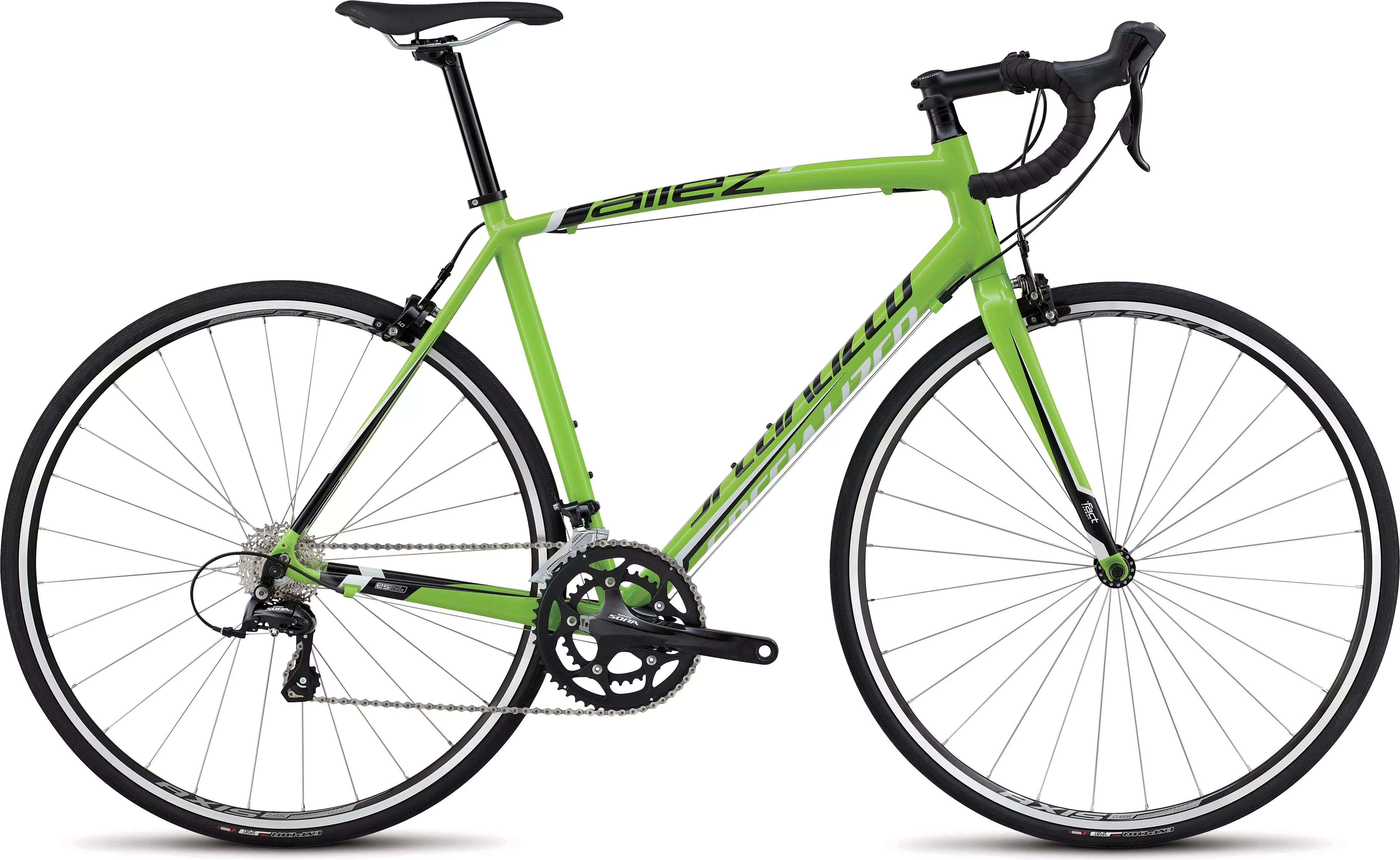

2015 Allez Sport
0 Reviews
The stiff, light, race-inspired Allez E5 Sport offers great acceleration and handling—perfect…
Product Details
The stiff, light, race-inspired Allez E5 Sport offers great acceleration and handling—perfect for an aspiring racer, or as a first road bike if you're just getting into the sport. 9-speed Shimano Sora drivetrain and dependable wheelset delivers high-end performance at a serious value.
Specialized FACT carbon fork delivers precise steering in a lightweight package
Shimano Sora, 9-speed rear derailleur for precise, no-hassle shifting
Shimano Sora, compact crankset for crisp and reliable shifting performance
Body Geometry Toupé Sport saddle w/ hollow Cr-Mo rails is tuned for perfect fit and comfort
AXIS Classic wheelset is lightweight and durable for all-day riding
Specialized Espoir Sport, 700x25c tires w/ double BlackBelt protection are durable and reliable
E5 Premium Aluminum frame w/ smooth welds is sleek and fast
Technical Specifications
FRAMESET
FRAME
Specialized E5 Premium Aluminum, fully manipulated tubing w/ smooth welds, 1-1/8"" lower bearing
FORK
Specialized FACT carbon, alloy crown/steerer
HEADSET
1-1/8"" integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
AXIS Classic
REAR WHEEL
AXIS Classic
FRONT TIRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
REAR TIRE
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
INNER TUBES
Standard, presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Sora STI
FRONT DERAILLEUR
Shimano Sora
REAR DERAILLEUR
Shimano Sora, 9-speed
CASSETTE
Shimano, 9-speed, 12-27
CRANKSET
Shimano Sora, 50/34
CHAIN
KMC X9, 9-speed, reusable Missing Link
COCKPIT
HANDLEBARS
Specialized, shallow drop, alloy, 125mm drop, 70mm short-reach
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise
TAPE
Specialized S-Wrap, w/ bar end plug, 8mm bar shaper
SADDLE
Body Geometry Toupé Sport, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Sport, alloy, 2-bolt, 27.2mm
BRAKES
FRONT BRAKE
AXIS 1.0
REAR BRAKE
AXIS 1.0
ACCESSORIES
PEDALS
Nylon flat test ride, loose-ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 407mm | 407mm | 407mm | 410mm | 410mm |
| Top-Tube Length, Horizontal | 520mm | 538mm | 548mm | 565mm | 583mm | 601mm |
| Front-Center | 578mm | 578mm | 583mm | 593mm | 607mm | 613mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 736mm | 759mm | 783mm | 805mm | 834mm | 860mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm | 45mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 506mm | 527mm | 548mm | 574mm | 607mm | 632mm |
| Reach | 387mm | 387mm | 387mm | 392mm | 397mm | 401mm |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Wheelbase | 972mm | 974mm | 980mm | 990mm | 1008mm | 1014mm |
| Crank Length | 170mm | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
