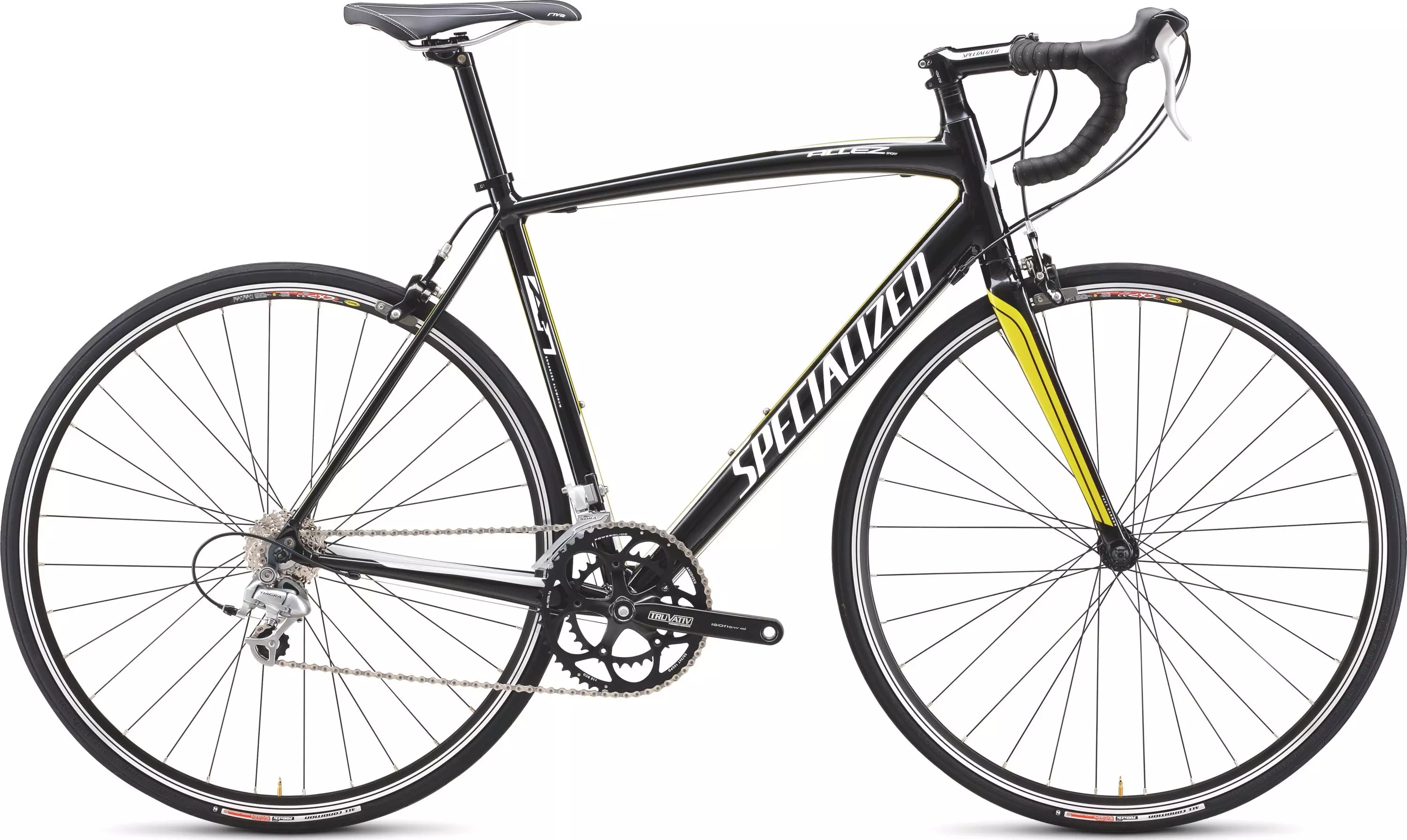

2011 Allez Sport Compact
5
2 Reviews
Upgraded drivetrain and 9-speed rear cassette set the Allez Sport apart.
Product Details
Upgraded drivetrain and 9-speed rear cassette set the Allez Sport apart.
Never miss a critical shift with Shimano Sora STI shifters
Oversized aluminum handlebar is stiff and light for serious performance
Sturdy and fast-rolling Mavic rims with 32 holes in a sleek, black finish
Race-inspired A1 Premium Aluminum smooth-welded frame is stiff, light, and fast
Lightweight FACT carbon fork for a smooth ride and precise steering through tight turns
Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium aluminum, fully manipulated tubing, smooth weld compact race design, integrated headset
FORK
Specialized FACT carbon, carbon legs, aluminum crown and steerer
HEADSET
1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
Mavic CXP22
FRONT HUB
Forged alloy Hub, sealed bearings, 32 hole, for J bend round spokes
REAR HUB
Forged aluminum, 32h, double sealed ball bearings, cassette, QR
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Sora STI
FRONT DERAILLEUR
Shimano Sora
REAR DERAILLEUR
Shimano Tiagra
CASSETTE
Shimano HG-50, 9-speed, 12-25t
CRANKSET
Truvativ Isoflow
CHAINRINGS
50 x 34T
BOTTOM BRACKET
Cr-Mo axle, 68mm x 113mm
CHAIN
KMC X9
COCKPIT
HANDLEBARS
Specialized Elite, 6061 aluminum, 130 drop, 90 reach, 31.8mm
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
TAPE
Specialized S-Wrap, w/ gel
SADDLE
Body Geometry Riva Road, w/ steel rails
SEATPOST
Specialized Sport, alloy, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
REAR BRAKE
Tektro cold-forged, dual pivot brake w/ cartridge pads
BRAKE LEVERS
Shimano Sora STI
ACCESSORIES
PEDALS
Black cage, body & toe clips w/ strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 613mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 737mm | 777mm | 798mm | 816mm | 836mm | 863mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
