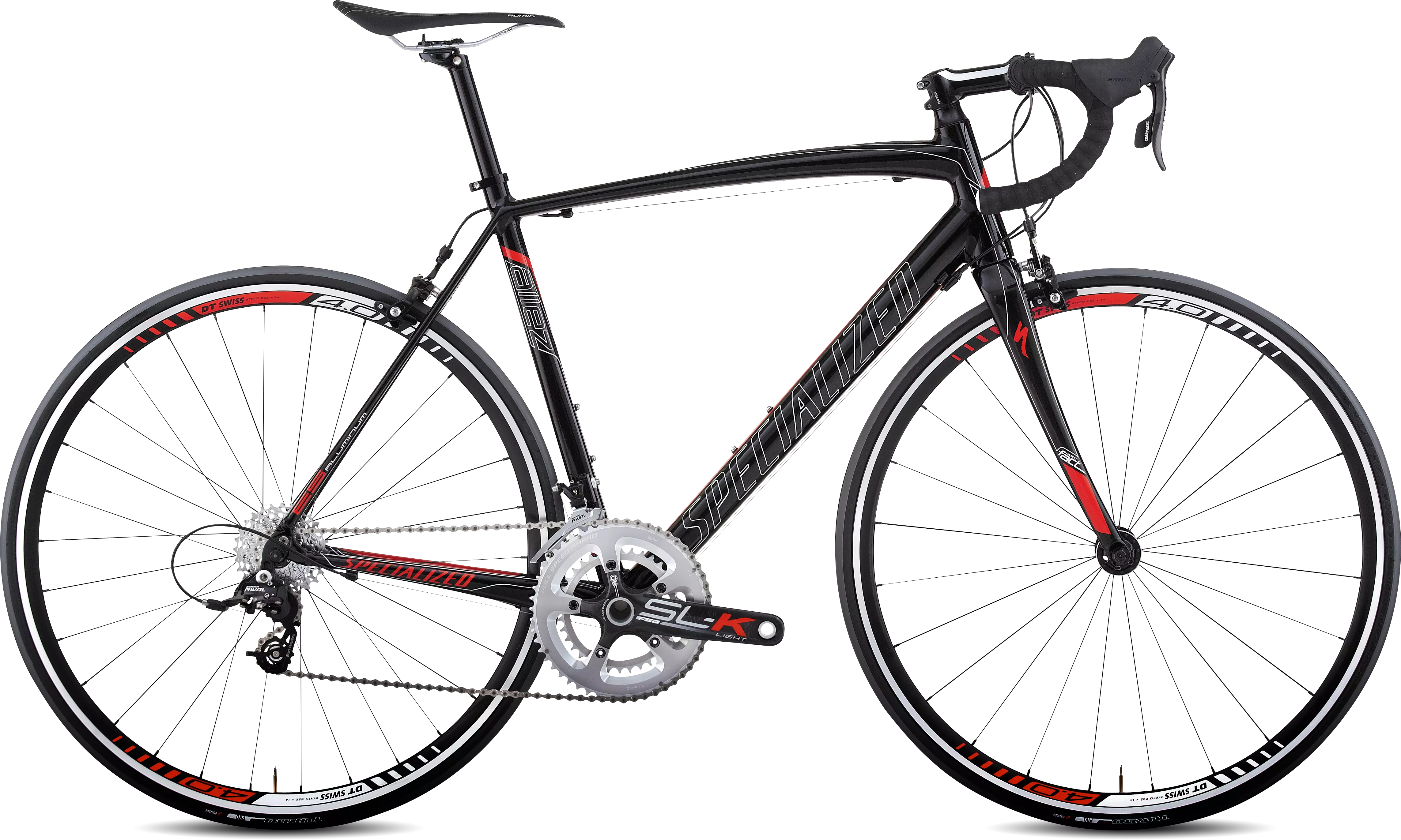

2012 Allez EVO Rival Mid-Compact
5
1 Reviews
Stiff, light, race-inspired Allez Evo offers great acceleration and handling—perfect…
Color:
Evil Black
What's my size?
Select a Size
Product Details
Stiff, light, race-inspired Allez Evo offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. FSA carbon crankset and 10-speed SRAM Rival components for outstanding power transfer and shifting performance.
Race-inspired E5 smooth-welded, fully-manipulated alloy frame with tapered head tube and integrated headset, and OSBB is stiff, light, and fast
Monocoque FACT carbon fork borrowed from the Tarmac features stiff tapered steerer to provide precise steering through the tightest turns
New Tarmac Comp oversized aluminum bar is stiff and light for serious performance
SRAM Rival 10-speed shifters employ DoubleTap technology for simple, intuitive shifting with reach adjustment
High-value, race-ready DT-Axis 4.0 wheelset is impressively light and fast, with sealed bearings, butted spokes, and alloy nipples
Specialized BG Romin Comp features a shaped profile for max power and hollow Cr-Mo rails for durability
Technical Specifications
FRAMESET
FRAME
Specialized E5 aluminum, fully manipulated tubing, smooth weld, compact race design, 1-1/2"" lower bearing, integrated headset, OSBB
FORK
Specialized FACT carbon, full monocoque, OS race for 1-1/2"" bearing
HEADSET
1-1/8"" upper and 1-1/2"" lower Cr-Mo cartridge bearings integrated, w/ headset, 20mm cone spacer, w/ 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
DT Axis 4.0
REAR WHEEL
DT Axis 4.0
FRONT TIRE
Specialized Turbo Pro w/ BlackBelt, 127 TPI, aramid bead, 700x23c
REAR TIRE
Specialized Turbo Pro w/ BlackBelt, 127 TPI, aramid bead, 700x23c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
SRAM Rival DoubleTap, 10-speed
FRONT DERAILLEUR
SRAM Rival
REAR DERAILLEUR
SRAM Rival
CASSETTE
SRAM Apex, 10-speed, 11-28t
CRANKSET
FSA SL-K Light BB30 carbon
CHAINRINGS
52/36
BOTTOM BRACKET
With crankset
CHAIN
KMC X10 CP
COCKPIT
HANDLEBARS
New Specialized Tarmac Comp, alloy
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized S-Wrap, w/ gel
SADDLE
Body Geometry Romin Comp, hollow Cr-Mo rails
SEATPOST
New Specialized Sport, alloy, 27.2mm
BRAKES
FRONT BRAKE
SRAM Apex
REAR BRAKE
SRAM Apex
BRAKE LEVERS
SRAM Rival
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm | 250mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm | 605mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 613mm | 617mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm | 440mm |
| Stand-Over Height | 737mm | 777mm | 798mm | 816mm | 836mm | 863mm | 892mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm | 620mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm | 67.5mm |
| Stack | 505mm | 527mm | 548mm | 575mm | 607mm | 632mm | 652mm |
| Reach | 385mm | 385mm | 385mm | 392mm | 397mm | 402mm | 401mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm | 1017mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm | 120mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
