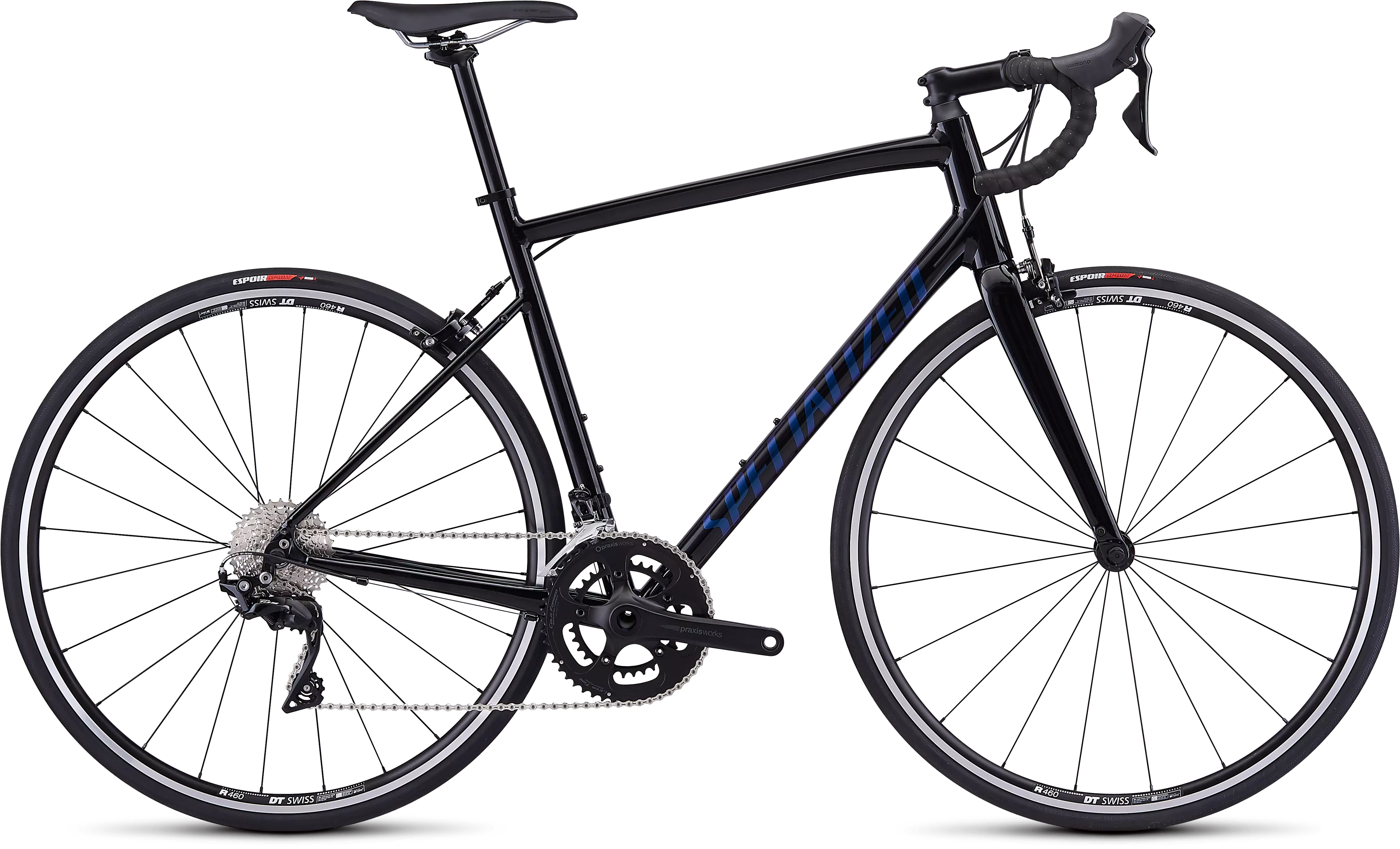

2019 Allez Elite

4.7

3 Reviews

There's no denying it, we're still in love with aluminum road bikes, and when it…

Product Details

Add Icon

There's no denying it, we're still in love with aluminum road bikes, and when it comes to transforming this passion into a labor of love, we make a bike like the Allez Elite. If you're just finding your cycling legs, this is the best place to start.

Not only does a light bike feel better when you're climbing up a hill, but it's also essential when you're carrying your bike up to the 5th floor, and this was at the forefront of the frame design. With a redesigned E5 Alloy frame, the Allez features a class-leading weight. Aggressively thin-walled, yet tough, tubes have been implemented to save weight and this results in over a 450g (1-pound) reduction in the frame and fork alone when compared to some models of yesteryear.

Speaking of the fork, entry-level road bikes often times feature either alloy or cheap carbon fiber forks that greatly detract from the overall ride quality. But with a full FACT carbon fiber fork, the Allez is better handling, smoother riding, and lower in weight—floating over rough chip-seal and carving through corners like a slalom skier. For the geometry, we developed the Allez by utilizing our vast Retül fit database. This meant creating a geometry that's sure to cover a broad range of positions, while still providing the performance-minded handling you'd expect from your first bike.

This Allez also features integrated rack and fender mounts, allowing you to get weight of your backpack of you and onto a lightweight rack. This not only makes for a good road bike, but it also enables you to transform it into a fast commuter.

  • E5 Premium Aluminum frame features fully manipulated tubing with smooth welds that increase stiffness and efficiency, while looking just as good as it performs.

  • Specialized FACT carbon, full monocoque fork designed for high-speed handling.

  • Shimano 105 handles the shifting duties in spades, delivering smooth, crisp, precise shifts no matter the conditions.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized E5 Premium Aluminum, fully manipulated tubing w/ SmoothWelds, 1-1/8"- 1-3/8" tapered head tube, internal cable routing, threaded BB, 130mm spacing

SUSPENSION

FORK

Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets

COCKPIT

HANDLEBARS

Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp

STEM

Specialized, 3D-forged alloy, 4-bolt, 6-degree rise

TAPE

Specialized S-Wrap

SADDLE

Body Geometry Toupé Sport, steel rails, 143mm

SEATPOST

Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware

SEAT BINDER

Bolt-type, 31.8mm

BRAKES

REAR BRAKE

Axis 1.0 caliper

FRONT BRAKE

Axis 1.0 caliper

DRIVETRAIN

SHIFT LEVERS

Shimano 105 R7000, 11-speed

FRONT DERAILLEUR

Shimano R7000, clamp-on

REAR DERAILLEUR

Shimano 105 R7000 GS, medium cage, 11-speed

CASSETTE

Shimano 105, 11-speed, 11-32t

CRANKSET

Praxis Alba M30

CHAINRINGS

50/34T

BOTTOM BRACKET

Included w/ crankset

CHAIN

KMC X11 EL, 11-speed w/ Missing Link™

WHEELS & TIRES

FRONT WHEEL

DT R460, sealed cartridge hubs, 14g spokes, 20h

REAR WHEEL

DT R460, sealed cartridge hubs, 14g spokes, 24h

FRONT TIRE

Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm

REAR TIRE

Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm

INNER TUBES

Presta, 40mm valve

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose ball w/reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length300mm300mm350mm350mm350mm350mm
Stack535mm552mm570mm596mm627mm649mm
Reach374mm376mm380mm385mm390mm396mm
Head Tube Length120mm135mm155mm180mm215mm235mm
Head Tube Angle72.25°73°73°73.5°73.5°74°
BB Height263mm263mm264mm264mm265.5mm265.5mm
BB Drop77mm77mm76mm76mm74.5mm74.5mm
Trail59mm55mm55mm52mm52mm49mm
Fork Length, Full375mm375mm375mm375mm375mm375mm
Fork Rake/Offset47mm47mm47mm47mm47mm47mm
Front Center575mm576mm585mm593mm607mm614mm
Chainstay Length415mm415mm415mm415mm415mm415mm
Wheelbase978mm978mm988mm996mm1011mm1018mm
Top Tube Length, Horizontal515mm542mm552mm564mm579mm591mm
Bike Standover Height740mm755mm775mm795mm826mm850mm
Seat Tube Length460mm490mm510mm530mm550mm580mm
Seat Tube Angle75.25°73.25°73.25°73.25°73.25°73.25°
Geometry

Rider Reviews

4.7

3 Reviews



Highly reliable and affordable

I made the switch to the Allez Elite recently and am very pleased with my choice. I had always ridden carbon frames, but I notice little to no difference with the aluminum frame. I have had zero issues with shifting and handling on climbs. I most recently did part of the Breckenridge West climb outside of Bakersfield, California and it felt light, effortless and comparable to riding carbon frames. It has exceeded my expectations. If you want a highly reliable bike that does everything you need and don't want to break the bank, then this is the bike for you.


Name:
Christopher O.

Helpful?

Excellent bike. Great value for under $2000.

I've had my Allez for about a month. I ride it 4/5 times per week, usually about 20 miles. My last bike was a high-end chrome-moly, so the liteness of the Allez feels like ""night & day"". I'm about 6'2"", with long legs and not alot of upper body, so the 58 cm feels perfect. My former bike was 25"" but I felt like I was always reaching too far forward. Std.breaks and derailleurs work well, Rear derailleur needed minor adjusting - easily done. Head set and bottom bracket are smooth & tight, despite lots of hills. I'm very pleased.


Name:
Mike

Helpful?

I would recommend this bike to anyone,really a great bike.

Great bike


Name:
Matt/Wmh

Helpful?
