There's no denying it, we're still in love with aluminum road bikes, and when it…

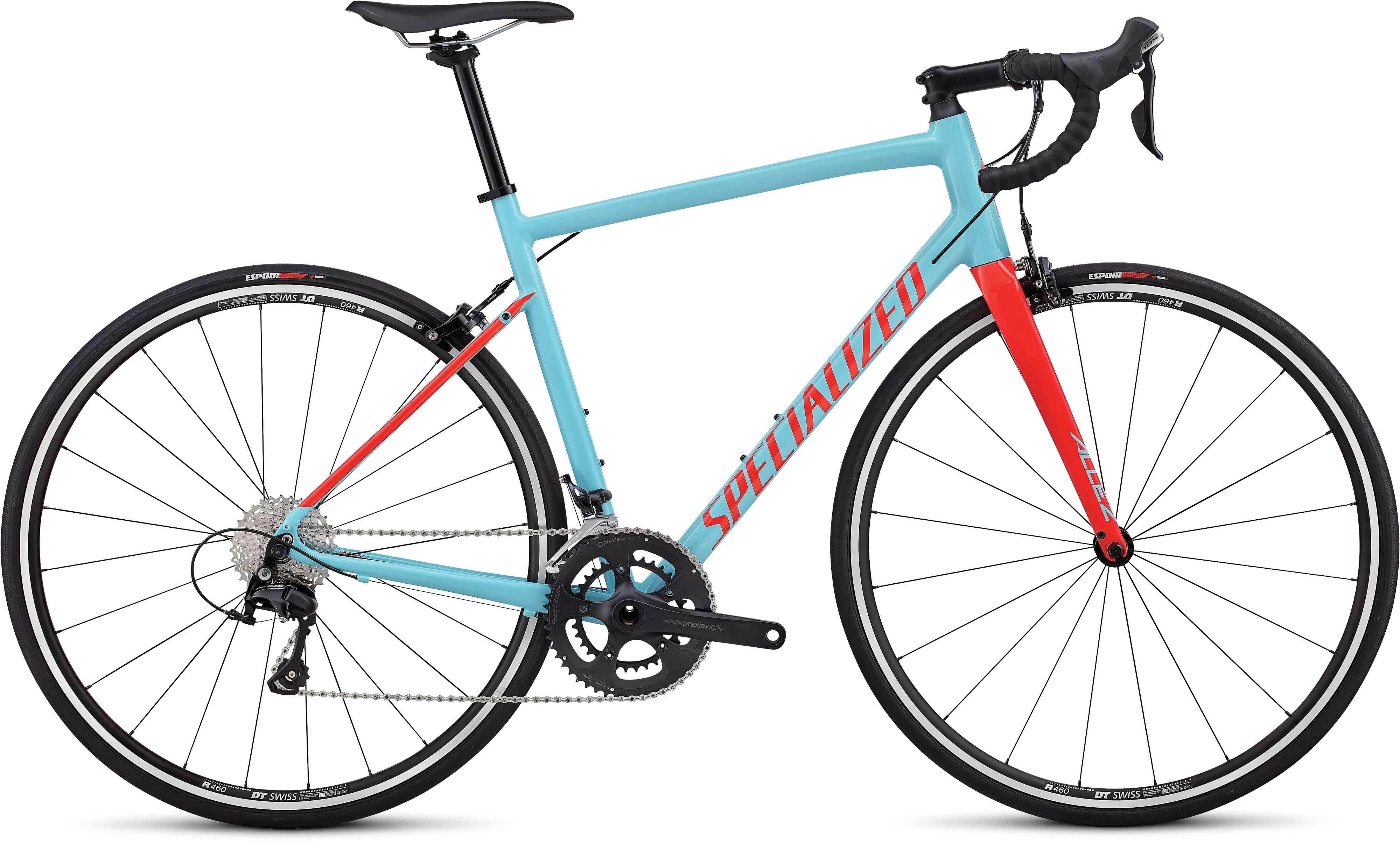

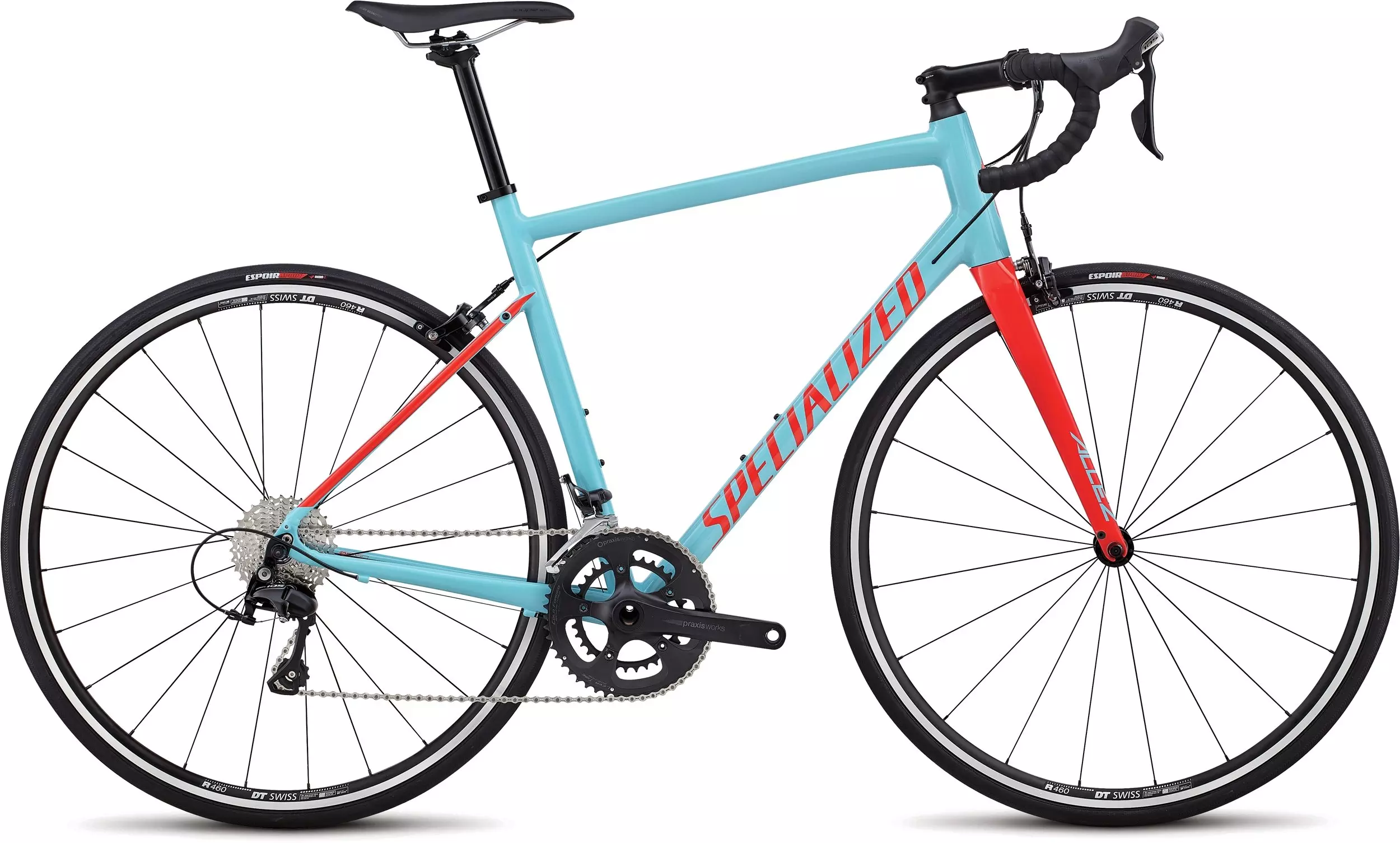

There's no denying it, we're still in love with aluminum road bikes, and when it comes to transforming this passion into a labor of love, we make a bike like the Allez Elite. If you're just finding your cycling legs, this is the best place to start.
Not only does a light bike feel better when you're climbing up a hill, but it's also essential when you're carrying your bike up to the 5th floor, and this was at the forefront of the frame design. With a redesigned E5 Alloy frame, the Allez features a class-leading weight. Aggressively thin-walled, yet tough, tubes have been implemented to save weight, as well, resulting in over a 450g (1lb) reduction in the frame and fork alone when compared to models of yesteryear.
Speaking of the fork, entry-level road bikes often times feature either alloy or cheap carbon fiber forks that greatly detract from the overall ride quality. But with a full FACT carbon fiber fork, the Allez is better handling, smoother riding, and lower in weight—floating over rough chip-seal and carving through corners like a slalom skier. For the geometry, we developed the Allez by utilizing our vast Retül fit database. This meant creating a geometry that's sure to cover a broad range of positions, while still providing the performance-minded handling you'd expect from your first bike.
This Allez also features integrated rack and fender mounts, allowing you to get weight out of your backpack and on to a lightweight rack when you need it. This not only makes for a good road bike, but it also enables you to transform it into a fast commuter.
E5 Premium Aluminum frame features fully manipulated tubing with smooth welds that increase stiffness and efficiency, while looking just as good as it performs.
Specialized FACT carbon, full monocoque fork designed for high-speed handling.
Shimano 105 STI shifters provide crisp, reliable shifting.
FRAME
Specialized E5 Premium Aluminum, fully manipulated tubing w/ SmoothWelds, 1-1/8"- 1-3/8" tapered head tube, internal cable routing, threaded BB, 130mm spacing
FORK
Specialized FACT full Carbon, 1-1/8" to 1-3/8" Taper w/ fender eyelets
SEAT BINDER
Bolt type, alloy, 31.8mm
FRONT WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 20h
REAR WHEEL
DT R460, sealed cartridge hubs, 14g spokes, 24h
FRONT TIRE
Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm
REAR TIRE
Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm
INNER TUBES
700x20/28mm, 40mm Presta valve
SHIFT LEVERS
Shimano 105
FRONT DERAILLEUR
Shimano 105 Ez, clamp-on
REAR DERAILLEUR
Shimano 105, 11-speed
CASSETTE
Shimano 105, 11-speed, 11-32t
CRANKSET
Praxis Alba 2D
CHAINRINGS
50/34T
BOTTOM BRACKET
Included w/ crankset
CHAIN
KMC X11EL, 11-speed w/ Missing Link™
HANDLEBARS
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
TAPE
Specialized S-Wrap
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Alloy, 2-bolt clamp
REAR BRAKE
Tektro Axis caliper
FRONT BRAKE
Tektro Axis caliper
PEDALS
Nylon, 105x78x28mm, loose balls w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
Stack | 535mm | 552mm | 570mm | 596mm | 627mm | 649mm |
Reach | 374mm | 376mm | 380mm | 385mm | 390mm | 396mm |
Head Tube Length | 120mm | 135mm | 155mm | 180mm | 215mm | 235mm |
Head Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
BB Height | 263mm | 263mm | 264mm | 264mm | 265.5mm | 265.5mm |
BB Drop | 77mm | 77mm | 76mm | 76mm | 74.5mm | 74.5mm |
Trail | 59mm | 55mm | 55mm | 52mm | 52mm | 49mm |
Fork Length, Full | 375mm | 375mm | 375mm | 375mm | 375mm | 375mm |
Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
Front Center | 575mm | 576mm | 585mm | 593mm | 607mm | 614mm |
Chainstay Length | 415mm | 415mm | 415mm | 415mm | 415mm | 415mm |
Wheelbase | 978mm | 978mm | 988mm | 996mm | 1011mm | 1018mm |
Top Tube Length, Horizontal | 515mm | 542mm | 552mm | 564mm | 579mm | 591mm |
Bike Standover Height | 740mm | 755mm | 775mm | 795mm | 826mm | 850mm |
Seat Tube Length | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
Seat Tube Angle | 75.25° | 73.25° | 73.25° | 73.25° | 73.25° | 73.25° |
