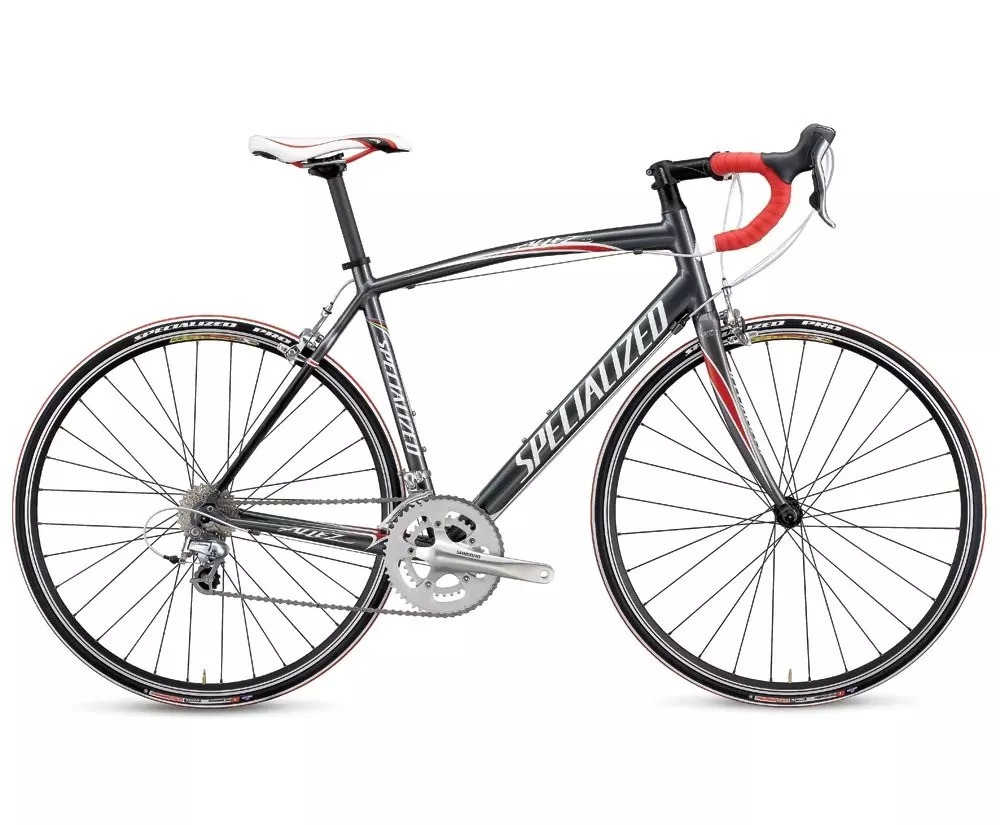

2009 Allez Elite Compact Double
0 Reviews
OVER 20 YEARS AGO, we named our first performance road machine after the French word…
Product Details
OVER 20 YEARS AGO, we named our first performance road machine after the French word for 'go.' With an entirely redesigned alloy frame reminiscent of the Tarmac, the new Allez delivers the light weight, efficiency and precision handling demanded by enthusiast road riders everywhere, regardless of how they say 'fast.'
Technical Specifications
FRAMESET
FRAME
Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, FACT carbon seatstays
FORK
Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer
HEADSET
Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers
SEAT BINDER
Specialized alloy 31.8mm
WHEELS
FRONT TIRE
Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket
REAR TIRE
Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket
INNER TUBES
Specialized standard presta tube
RIMS
Mavic CXP22 rim, alloy triple-wall, machined sidewalls, 28/32h w/ eyelets
FRONT HUB
Specialized forged alloy, 28h, sealed ball bearings, QR
REAR HUB
Specialized forged alloy, 32h, double sealed ball bearings, cassette, QR
SPOKES
DT Champion, stainless 14g w/ ProLoc brass nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105, 31.8mm clamp, bottom pull
REAR DERAILLEUR
Shimano 105, short cage
SHIFT LEVERS
Shimano 105, 10-speed STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed, 12-27t
CHAIN
Shimano 105, 10-speed
CRANKSET
Shimano Compact
CHAINRINGS
50 x 34t
BOTTOM BRACKET
Shimano FC-4500
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Comp, 6061 alloy, short drop, ergonomic shaping, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SADDLE
Specialized Comp Road, full padding
SEATPOST
Specialized carbon wrapped, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
REAR BRAKE
Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads
BRAKE LEVERS
Shimano 105, 10-speed STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Ground-Top | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Seat-Tube Angle | 60° | 65° | 60° | 59° | 56° | 59° |
| Head-Tube Angle | 580° | 580° | 587° | 595° | 610° | 617° |
| Chain-Stay Length | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm |
| Front-Center | 110mm | 130mm | 155mm | 180mm | 205mm | 230mm |
| Handle-Bar Width | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Seat-Tube Length, B-B Center to Top | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Fork Rake | 974mm | 975mm | 982mm | 991mm | 1008mm | 1018mm |
| B-B Drop | 71.75mm | 72.5mm | 72.5mm | 73mm | 73.5mm | 73mm |
| Stack | 430mm | 480mm | 500mm | 520mm | 540mm | 580mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Trail | 722mm | 755mm | 777mm | 800mm | 822mm | 853mm |
