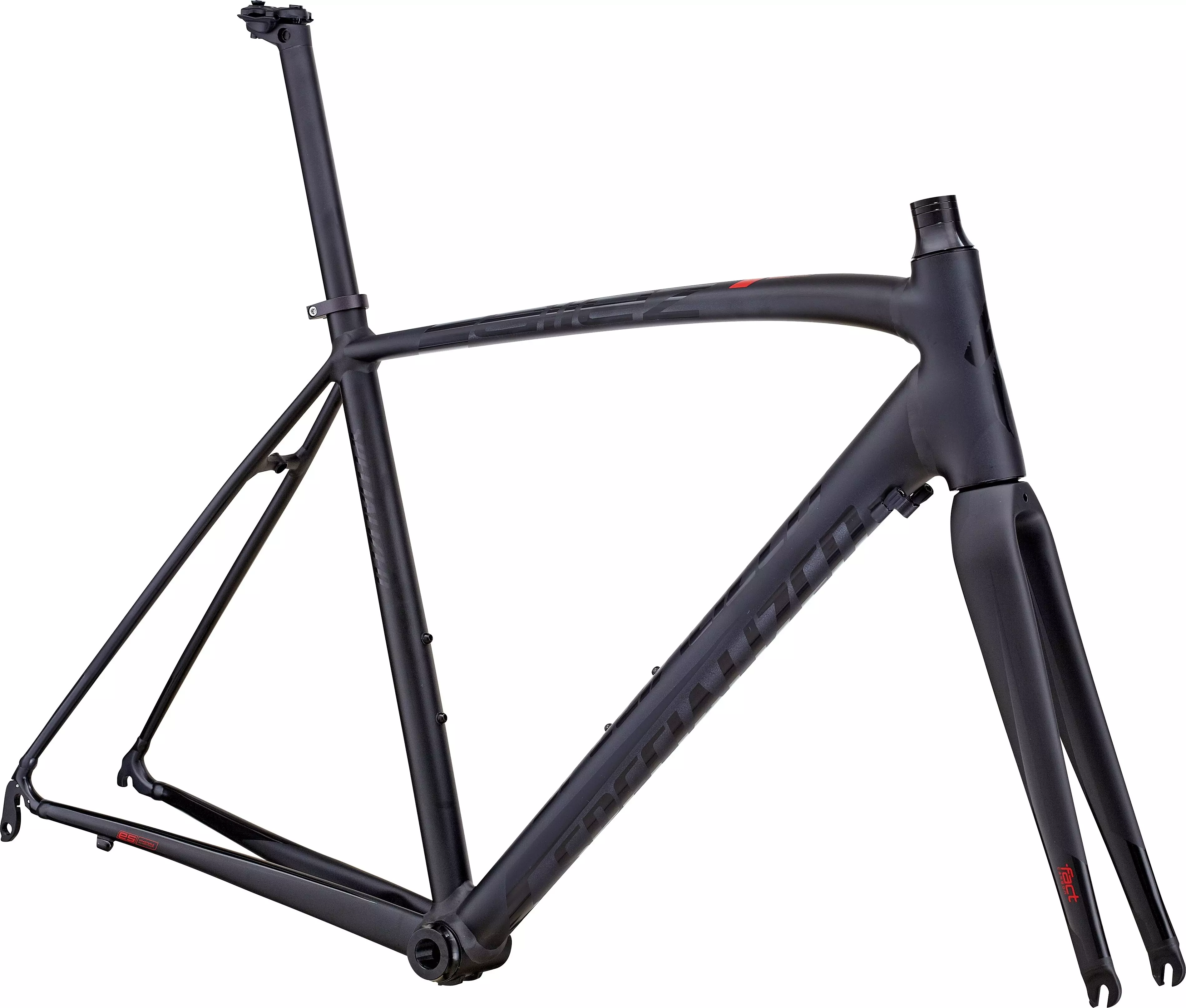

2014 Allez E5 Smartweld Frameset

0 Reviews

Stiff, light, race-inspired Allez OSBB frameset with Smartweld Technology offers…

Product Details

Stiff, light, race-inspired Allez OSBB frameset with Smartweld Technology offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. Build it up with the spec of your choice.

Race-inspired, smooth-welded, fully-manipulated E5 Premium Aluminum frame with Smartweld technology and tapered headtube is light and fast
Tarmac Comp full monocoque FACT carbon fork with tapered steerer is super light with great torsional rigidity for high-speed handling
1-1/8" to 1-3/8" headset with sealed, Cr-Mo bearings ensures precision, low maintenance, and lighter weight, with 20mm of carbon spacers
Specialized Sport alloy seatpost provides a stiff perch for solid power in the saddle

Technical Specifications

FRAMESET

FRAME

Specialized E5 Premium Aluminum w/ Smartweld technology, hydroformed aluminum tubing, 1-3/8"" lower bearing, OSBB

FORK

Specialized Tarmac, FACT carbon full monocoque, carbon steerer/crown for 1-3/8"" lower bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Alloy, 31.8mm

DRIVETRAIN

BOTTOM BRACKET

OSBB

COCKPIT

SEATPOST

Specialized Sport, alloy, 2-bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	120mm	120mm	145mm	170mm	205mm	230mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	576mm	576mm	583mm	591mm	605mm	613mm
Handle-Bar Width	420mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	741mm	777mm	798mm	816mm	836mm	854mm
Seat-Tube Length, B-B Center to Top	460mm	480mm	500mm	520mm	540mm	580mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	523mm	523mm	547mm	574mm	606mm	631mm
Reach	380mm	385mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	90mm	90mm	100mm	100mm	110mm	110mm
