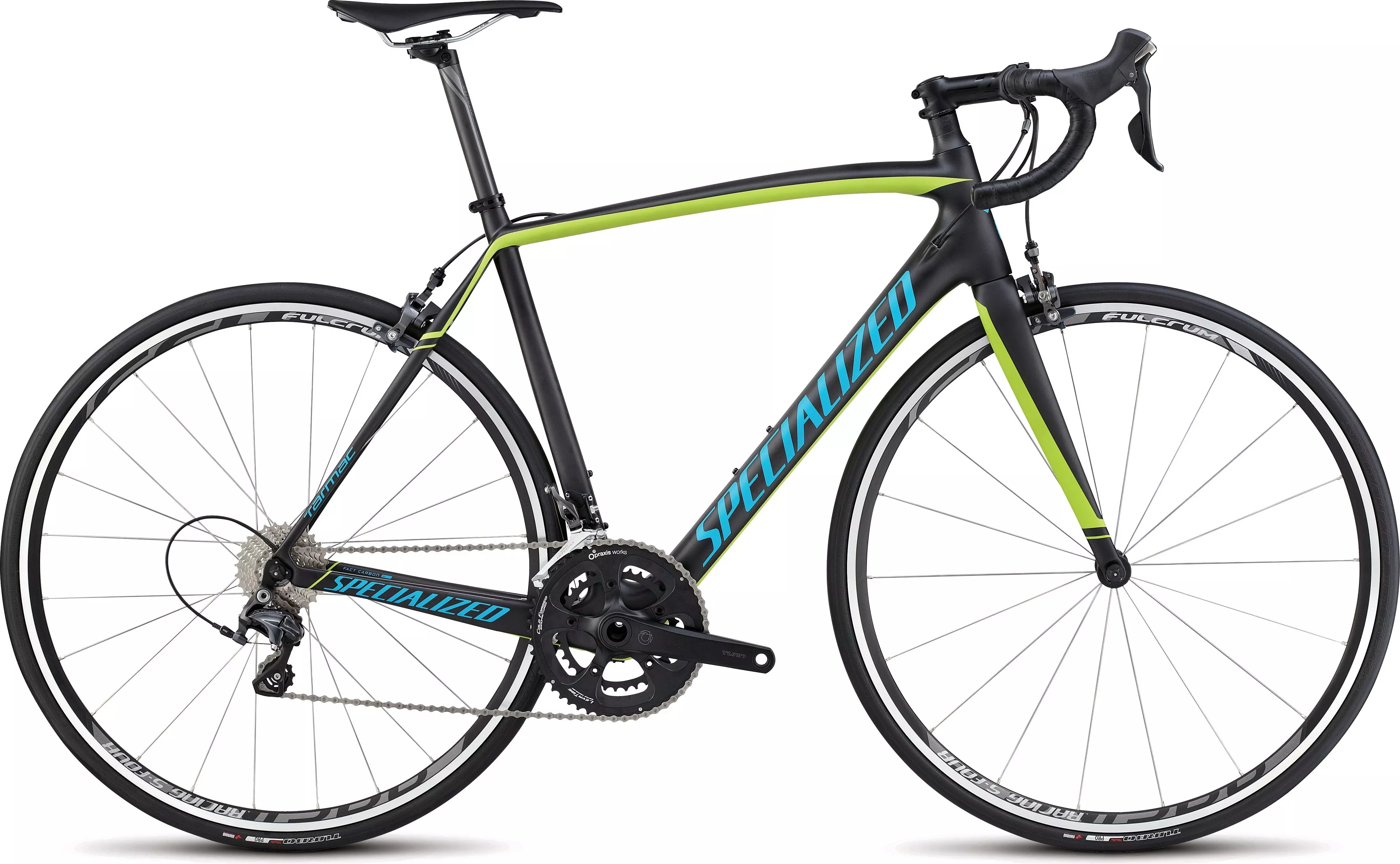

2015 Tarmac SL4 Comp Ultegra
0 Reviews
The Tarmac Comp is a pure and unbridled race machine. It climbs effortlessly, descends…
Colour:
Satin Carbon/Hyper Green/Cyan
What's my size?
Select a Size
Product Details
The Tarmac Comp is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. Bottom line, you'll be faster on this bike. With a Shimano Ultegra 11- speed drivetrain for flawless shifting, it can handle weekend races and long days in the saddle perfectly.
Turn Zayante compact crankset delivers excellent power transfer and consistent shifting
FACT 9r carbon frame is ultra-stiff and lightweight for pure speed
Shimano Ultegra, 11-speed rear derailleur is lightweight w/ smooth and crisp shifting
Body Geometry Toupé Comp Gel saddle w/ hollow Cr-Mo rails for comfort without compromise
Shimano Ultegra, 11-speed rear derailleur is lightweight w/ smooth and crisp shifting
Shimano Ultegra, 11-speed rear derailleur is lightweight w/ smooth and crisp shifting
Turn Zayante compact crankset delivers excellent power transfer and consistent shifting
Technical Specifications
FRAMESET
FRAME
Specialized FACT 9r carbon, FACT construction, compact race design, 1-3/8"" lower bearing, OSBB
SEAT BINDER
Alloy, 32.6mm
FORK
Specialized FACT carbon, monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper, 1-3/8"" lower, integrated Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm spacers
WHEELS
FRONT TYRE
Turbo Pro, 700x23mm, 127TPI, folding bead, BlackBelt protection
REAR TYRE
Turbo Pro, 700x23mm, 127TPI, folding bead, BlackBelt protection
FRONT WHEEL
Fulcrum S4
REAR WHEEL
Fulcrum S4
INNER TUBES
Standard, Presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Ultegra, 11-speed
REAR DERAILLEUR
Shimano Ultegra, 11-speed
CASSETTE
Shimano Ultegra, 11-speed, 11-28t
FRONT DERAILLEUR
Shimano Ultegra, 11-speed, braze-on
CRANKSET
TURN Zayante by Praxis Works, BB30, 50/34T
CHAIN
Shimano Ultegra, 11-speed
COCKPIT
TAPE
Specialized Classic, w/ gel
SADDLE
Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Comp, FACT carbon, 27.2mm
HANDLEBARS
Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
ACCESSORIES
PEDALS
Nylon, loose ball bearings, w/ reflectors
BRAKES
FRONT BRAKE
Shimano Ultegra
REAR BRAKE
Shimano Ultegra
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Centre | 576mm | 576mm | 583mm | 591mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 775mm | 795mm | 826mm | 850mm |
| Seat-Tube Length, B-B Centre to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 504mm | 526mm | 543mm | 564mm | 591mm | 612mm |
| Reach | 386mm | 386mm | 387mm | 395mm | 402mm | 408mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
