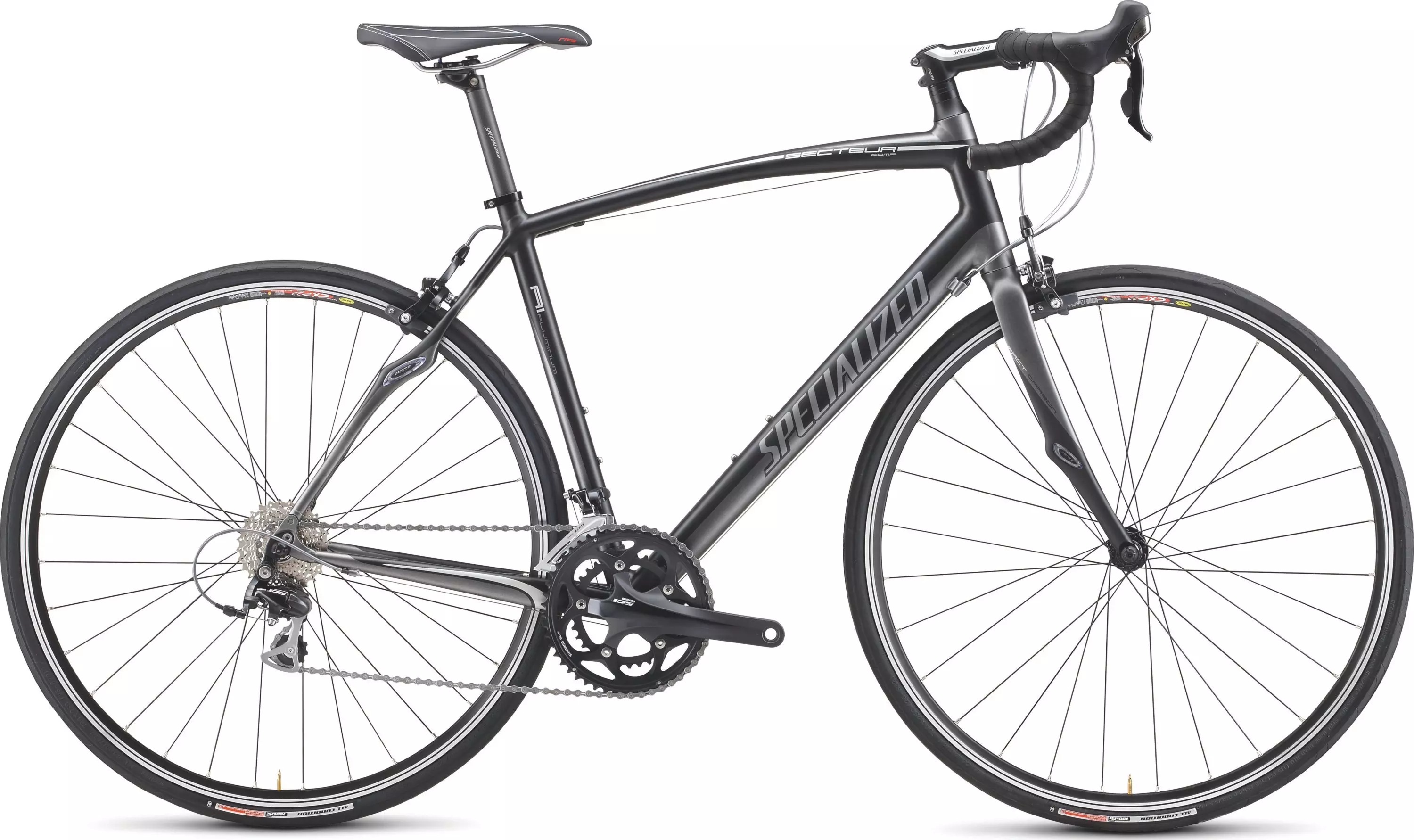

2011 Secteur Comp Compact

0 Reviews

A lighter weight E5 frame with FACT carbon seatstays sets the Secteur Comp at the…

Colour:

Charcoal/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

A lighter weight E5 frame with FACT carbon seatstays sets the Secteur Comp at the top of the range. Compact gearing offers wide range while keeping things light.

Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
Specialized Comp shallow drop alloy handlebar for easy access to levers and a more comfortable hand position
Specialized Elite alloy seatpost is carbon-wrapped, making it lighter and stiffer for increased power in the saddle
Lightweight FACT carbon fork provides precise steering through tight turns, with Zertz inserts to absorb road chatter
New Shimano 105 STI shifters are smooth and precise, and renowned for their race-ready performance and exceptional value
Lightweight E5 double butted alloy frame with carbon seatstays and Zertz inserts for quick, responsive, and compliant ride

Technical Specifications

FRAMESET

FRAME

Specialized E5 aluminum, fully manipulated tubing, compact design, FACT carbon seatstays w/ Zertz inserts, integrated headset

FORK

Specialized FACT carbon legs, alloy crown & steerer, Zertz inserts

HEADSET

1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 20mm alloy cone spacer with 20mm of spacers

SEAT BINDER

Alloy, 31.8mm

WHEELS

RIMS

Mavic CXP22 w/ eyelets

FRONT HUB

Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes

REAR HUB

Forged alloy, sealed, 32h, for J bend round spokes

SPOKES

Stainless 14g

FRONT TIRE

Specialized All Condition, 700x25c,

REAR TIRE

Specialized All Condition, 700x25c,

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

New Shimano 105 STI

FRONT DERAILLEUR

New Shimano 105

REAR DERAILLEUR

New Shimano 105

CASSETTE

New Shimano 105, 10-speed, 11-28t

CRANKSET

New Shimano 105

CHAINRINGS

50 x 34T

CHAIN

New Shimano 105

BOTTOM BRACKET

With Crankset

COCKPIT

HANDLEBARS

Specialized Comp, shallow drop, 6061 alloy

STEM

Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

TAPE

Specialized S-Wrap w/ 2.5 gel pads

SADDLE

Body Geometry Riva Road, w/ steel rails

SEATPOST

Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

New Shimano 105

REAR BRAKE

New Shimano 105

BRAKE LEVERS

New Shimano 105 STI, flight deck compatible

ACCESSORIES

PEDALS

Black cage, body & toe clips w/ strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61	64
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm	260mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm	615mm
Front-Centre	582mm	588mm	595mm	606mm	621mm	628mm	643mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm	440mm
Stand-Over Height	730mm	756mm	776mm	798mm	829mm	851mm	877mm
Seat-Tube Length, B-B Centre to Top	445mm	475mm	495mm	515mm	540mm	565mm	600mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm	70mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm	53mm
Wheelbase	983mm	989mm	1000mm	1010mm	1029mm	1038mm	1053mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm	120mm
