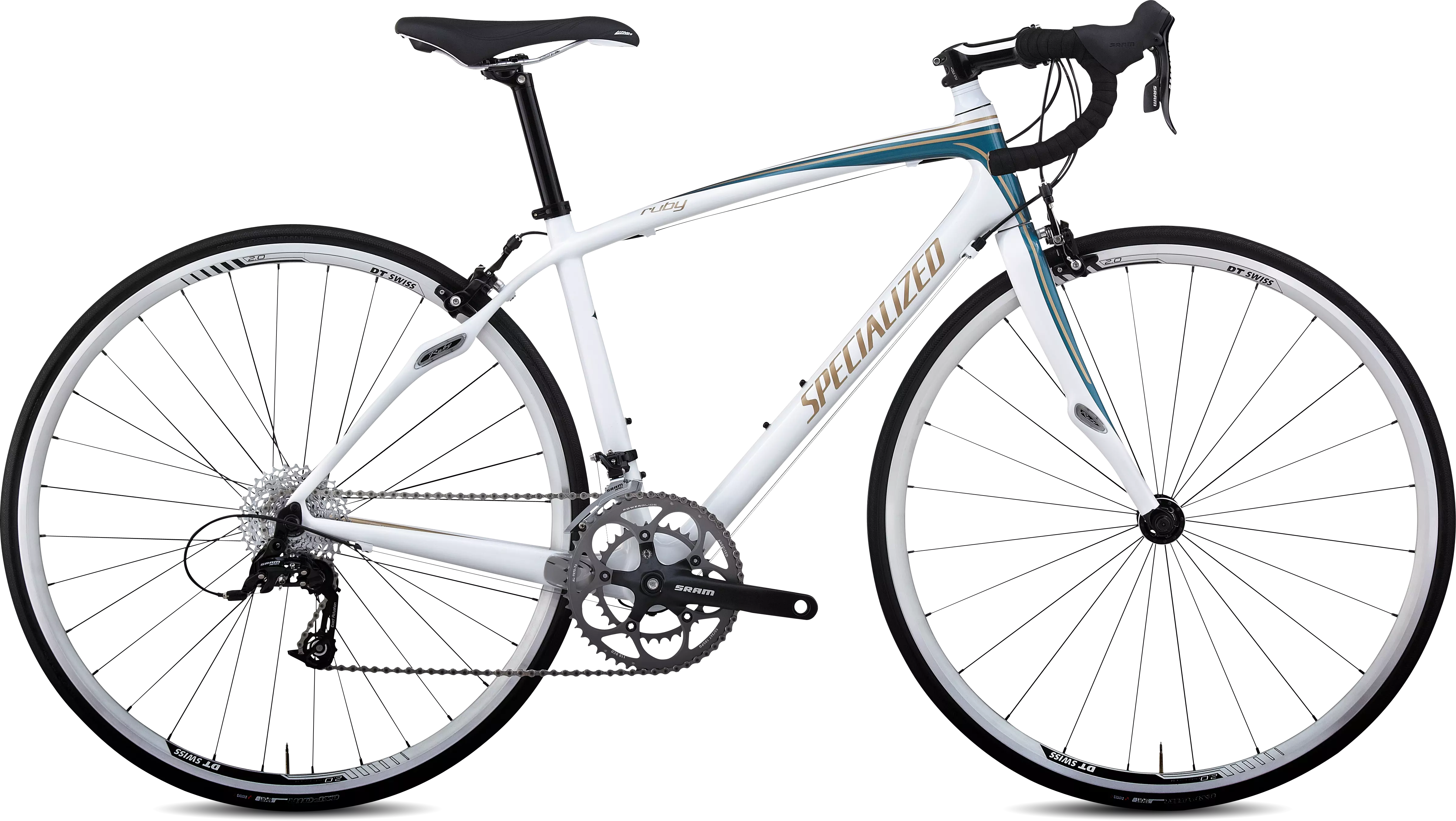

2012 Ruby

0 Reviews

Ruby is a quick and efficient, FACT carbon bike, with Zertz vibration dampers in…

Colour:

Gloss White/Teal/Gold

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Add Icon

Ruby is a quick and efficient, FACT carbon bike, with Zertz vibration dampers in the frame and fork, designed to cover long distances in maximum control and comfort. High-quality SRAM Apex compact drivetrain and our new DT-Axis 2.0 wheelset keep weight down and performance up.

  • Significantly lighter than comparable-level wheelsets, these tough new DT-Axis 2.0 hoops roll smooth and fast

  • SRAM compact crank for efficient climbing, plus Apex 10-speed DoubleTap shifters for simple, intuitive shifting and reach adjustment for perfect fit

  • FACT IS 8r carbon frame with Zertz inserts features women's endurance geometry and tubing for a lightweight, compliant, and balanced ride

  • FACT IS 8r carbon frame with Zertz inserts features women's endurance geometry and tubing for a lightweight, compliant, and balanced ride

  • Ultralight FACT carbon monocoque fork with vibration-damping Zertz inserts is stiff, responsive, and durable

  • Ultralight FACT carbon monocoque fork with vibration-damping Zertz inserts is stiff, responsive, and durable

  • Significantly lighter than comparable-level wheelsets, these tough new DT-Axis 2.0 hoops roll smooth and fast

  • Body Geometry Lithia Comp Gel saddle features generous padding and hollow Cr-Mo rails for all-day comfort and durability

  • SRAM compact crank for efficient climbing, plus Apex 10-speed DoubleTap shifters for simple, intuitive shifting and reach adjustment for perfect fit

  • Significantly lighter than comparable-level wheelsets, these tough new DT-Axis 2.0 hoops roll smooth and fast

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized FACT 8r carbon, FACT IS construction, women's tubesets, women's endurance geometry, Zertz inserts, threaded BB

WHEELS & TIRES

INNER TUBES

Lightweight, presta

FRONT WHEEL

DT Axis 2.0

REAR WHEEL

DT Axis 2.0

COCKPIT

HANDLEBARS

Specialized Women's Comp, alloy, shallow drop

STEM

Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp

SEATPOST

New Specialized Sport, alloy, 27.2mm

SEAT BINDER

Forged alloy, 32.6mm

DRIVETRAIN

CHAINRINGS

50/34

CHAIN

KMC X10 CP

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
440.0480.0510.0540.0570.0
Seat-Tube Angle75.75°75.75°75.5°74°73.5°
Head-Tube Length120mm130mm140mm165mm190mm
Seat-Post Length300mm300mm300mm300mm350mm
Head-Tube Angle70.25°71.25°71.5°72°72°
Chain-Stay Length412mm415mm415mm415mm417mm
Top-Tube Length, Horizontal493mm501mm508mm524mm547mm
Front-Centre570mm574mm580mm577mm596mm
Handle-Bar Width360mm380mm400mm400mm420mm
Stand-Over Height692mm714mm740mm765mm792mm
Seat-Tube Length, B-B Centre to Top385mm415mm445mm480mm510mm
Fork Rake51mm51mm51mm49mm49mm
B-B Drop73mm73mm73mm73mm71.5mm
Stack515mm528mm539mm565mm587mm
Reach358mm366mm371mm367mm380mm
Trail68mm62mm60mm59mm59mm
Wheelbase971mm978mm984mm981mm1002mm
Crank Length165mm165mm170mm170mm172.5mm
Stem Length75mm75mm90mm100mm100mm
Geometry
