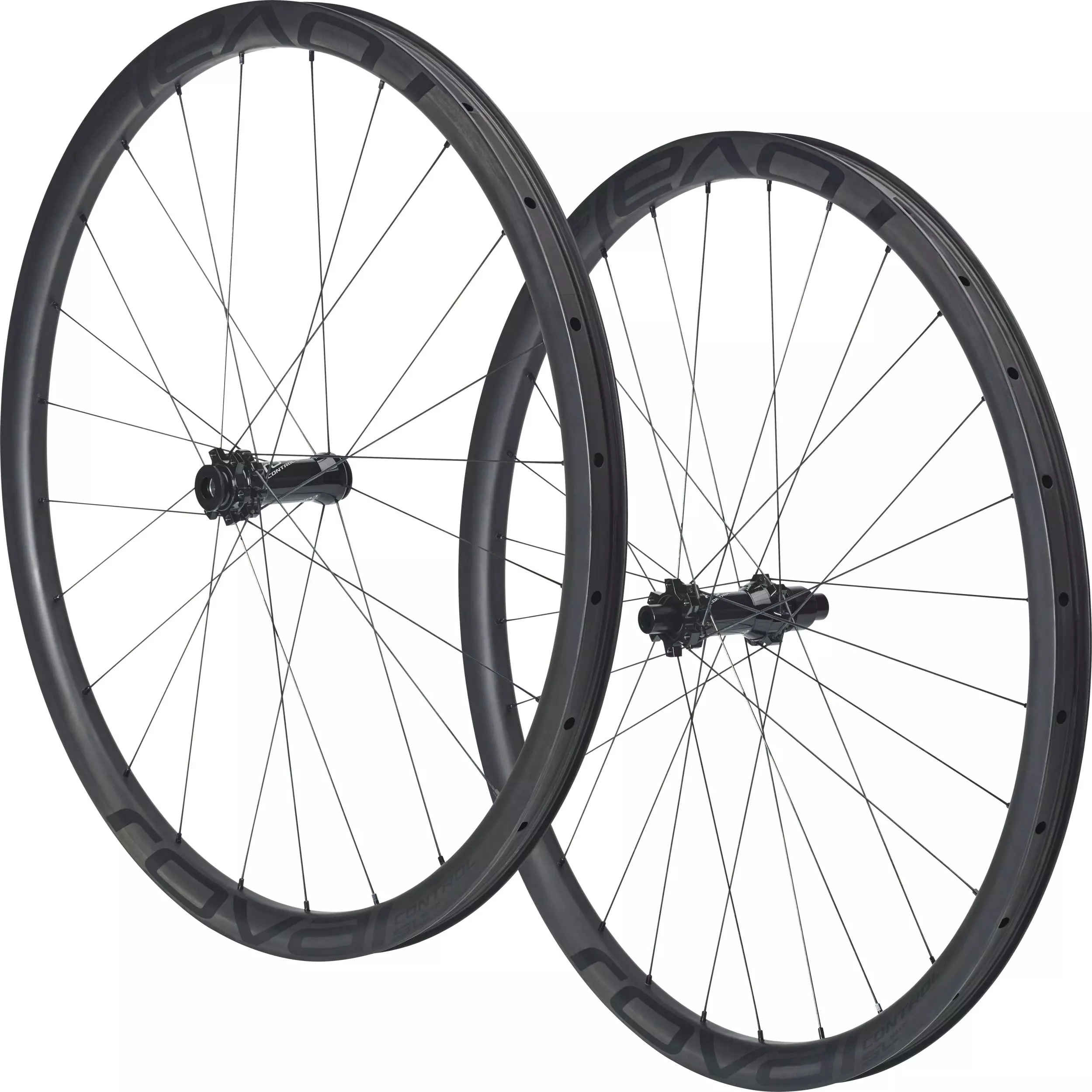

2018 Roval Control SL 29

Ask Jaroslav Kulhavý, and he'll tell you—every gram counts in cross country racing. But with XC tracks becoming more aggressive than ever, just being a flyweight wheel is no longer sufficient. Now, wheels need to be as tough and stiff as they are light, with all of the handling characteristics that seasoned XC riders have come to expect. These days, wheels need to be more like the new Roval Control SL 29.

When our riders asked us for the ultimate cross country wheels, we knew that they were really asking for some pretty specific features. They had to be light in order to be low in the inertia and weight departments, strong enough to take on rocks and roots on a short-travel race bike, and wide enough so that the tyre profile was optimised for both traction and rolling resistance—not an easy feat.

To check all of these design boxes, we started by looking at our Traverse SL rim to see if we could extract the wide-rim benefits while keeping the weight at, or below, the previous Control SL—the existing benchmark. Based on the width we knew was ideal for the desired ride characteristics, we tuned the rim shape to optimise the stiffness, weight, and ride quality of the system as a whole—too tall and the wheel rides too stiff, too shallow and the wheel is too flexy. Our engineers meticulously went through rim shape developments to find the perfect balance and optimal geometry, and after fine-tuning multiple layup iterations and schedules, we ended with a 25-millimeter internal width rim that's approximately the same weight as the previous Control SL.

Being able to add material and width (3mm to be exact), without a weight penalty makes for a stronger XC wheel, but we weren't content settling with just an increase in strength. With our goal being the fastest race wheelset available, we took the new and old rims, paired them with a set of size 2.0 Fast Trak tyres, and performed rolling resistance tests at both 20 and 30 PSI. The result? The new, wider rim tested faster at both pressures, confirming our line-wide hypothesis that wider is not only stronger, but faster.

• Rim Type: Carbon clincher, 2Bliss Ready, Zero Bead Hook design. Black graphic under clear coat.

• Rim Material: Carbon fiber

• Rim Width: 25mm internal

• Front Spoke Pattern: Radial/Three-cross (2:1)

• Rear Spoke Pattern: Three-cross (1:1)

• Spoke Count: 24-hole Front, 28-hole Rear

• Spoke Type: DT Swiss Competition Race

• Nipple Type: DT Swiss Pro Lock hexagonal

• Front Hub: DT Swiss Internals, 15x100mm thru-axle, 15mm end caps included (19mm & 31mm OD)

• Rear Hub: CNC-machined alloy body, high-quality DT 240 internals and 54t quick engagement ratchet system cassette, includes SRAM XX1 11-speed freehub and 142 end caps

• Includes 142 drive-side end cap for 10-speed freehub body—freehub sold separately

• Bearing Type: Sealed cartridge

• Assembly Method: Hand-built

• Includes Roval Tubeless Plugs for the lightest possible tubeless setup and tubeless valve stems in order to make tubeless set-up a touch easier.

• Total Wheelset Weight: 1320g
