2012 Hardrock Disc Int 26

0 Reviews

With a smooth SR Suntour fork, powerful Tektro mechanical disc brakes, and double-walled…

Colour:

Red/Blk/Wht

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

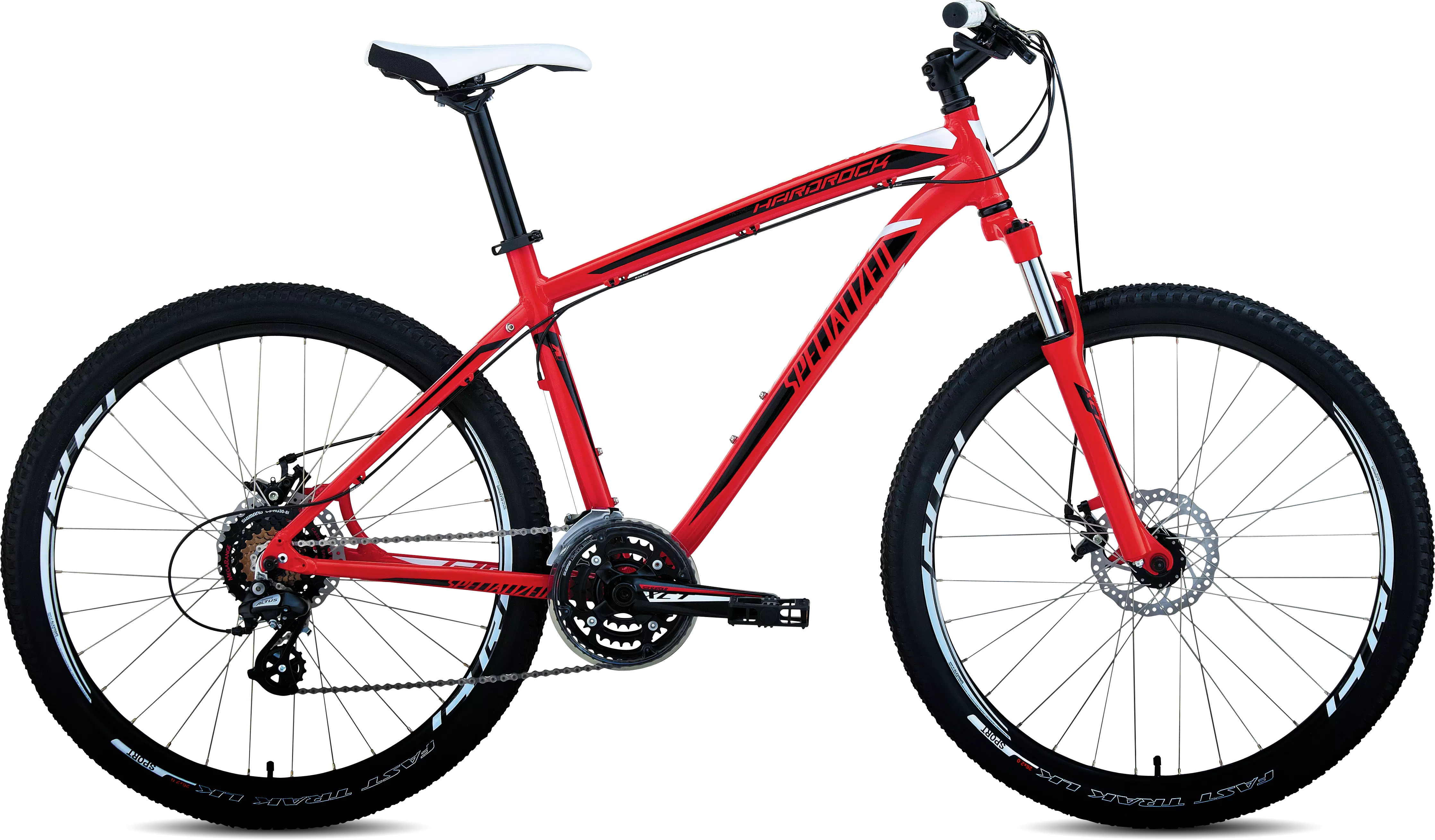

With a smooth SR Suntour fork, powerful Tektro mechanical disc brakes, and double-walled alloy wheels, the Hardrock Disc is prepared for mountain trails and urban jungles.

Fully butted A1 Premium Aluminium frame with double ORE down tube for a lighter, more compliant and durable bike
Shimano Altus Rapidfire trigger shifters are fast and reliable so you'll never miss a shift
Fully butted A1 Premium Aluminium frame with double ORE down tube for a lighter, more compliant and durable bike
Light and durable double-walled alloy rims are tough enough to handle the rough stuff
Fully butted A1 Premium Aluminium frame with double ORE down tube for a lighter, more compliant and durable bike
Fully butted A1 Premium Aluminium frame with double ORE down tube for a lighter, more compliant and durable bike
Fully butted A1 Premium Aluminium frame with double ORE down tube for a lighter, more compliant and durable bike

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium, fully butted, disc only, 6061 alloy, double ORE down tube, externally relieved head tube, forged dropouts and reinforced disc mount, alloy replaceable derailleur hanger

HEADSET

1-1/8" threadless, loose ball w/ seals

SEAT BINDER

34.9mm, alloy, extruded QR lever/collar

SUSPENSION

FORK

SR Suntour XCT (SF12-XCT-V4-DS), 1pc. alloy lower, 28mm Hi-Ten stanchions, 1-1/8" Hi-Ten steerer, coil/mcu spring w/ preload adj., 80mm travel

WHEELS

RIMS

Alex HR Disc 26", alloy double-wall, disc, pin joint, 24mm, 32h

FRONT HUB

Disc hub, QR axle, sealed loose ball, 17mm contact, 32h

REAR HUB

Sealed loose ball, 19mm contact, QR, 32h

SPOKES

Stainless silver, 2.0mm (14g)

FRONT TYRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0"

REAR TYRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0"

INNER TUBES

Schrader valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, 8-speed, 34.9mm clamp, top-swing, dual-pull

REAR DERAILLEUR

Shimano Altus, 8-speed, SGS cage

SHIFT LEVERS

Shimano Altus, 8-speed Rapidfire plus, SL type w/ optical display

CASSETTE

Shimano 8-speed, 11-34t

CHAIN

KMC X-8, 8-speed, reusable Missing Link

CRANKSET

SR Suntour XCT, 8-speed, square taper spindle

CHAINRINGS

42/32/22, replaceable outer, w/ chainguard

BOTTOM BRACKET

Square taper, cartridge bearing, double crank stop

COCKPIT

SEATPOST

Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust

STEM

Ahead, 4 bolt clamp, 20º rise, 25.4mm

HANDLEBARS

Hi-Ten riserbar, 35mm rise, 8º backsweep, 4º upsweep, 25.4mm

GRIPS

Specialized Enduro, dual compound

SADDLE

Specialized Body Geometry Hardrock, steel rails, front and rear bumpers, 143mm width

ACCESSORIES

PEDALS

Composite platform w/ moulded pins, toe clip compatible, 9/16" w/ reflectors

BRAKES

FRONT BRAKE

Tektro Novela mechanical disc brake, dual pad angle adj., post mount, 160mm rotor

REAR BRAKE

Tektro Novela mechanical disc brake, dual pad angle adj., post mount, 160mm rotor

BRAKE LEVERS

Tektro, die cast lever, included w/ brake

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13.0	15.5	17.5	19.0	21.0	23.0
Top Tube Length (Horizontal)	540mm	561mm	586mm	605mm	630mm	655mm
Top Tube Length (Actual)	534mm	542mm	563mm	581mm	608mm	638mm
Seat Tube Length, Centre to Top	330mm	394mm	444mm	483mm	533mm	584mm
Bottom Bracket Drop	41mm	41mm	41mm	41mm	41mm	41mm
Bottom Bracket Height	299mm	299mm	299mm	299mm	299mm	299mm
Wheel Base	1022mm	1044mm	1069mm	1088mm	1114mm	1140mm
Standover Height	696mm	724mm	759mm	794mm	830mm	865mm
Stack	571mm	571mm	590mm	590mm	609mm	628mm
Reach	365mm	387mm	406mm	425mm	444mm	463mm
Head Tube Length	100mm	100mm	120mm	120mm	140mm	160mm
Head Tube Angle	70.25°	70.25°	70.25°	70.25°	70.25°	70.25°
Chainstay Length	424mm	424mm	424mm	424mm	424mm	424mm
Seat Tube Angle	73°	73°	73°	73°	73°	73°
Crank Length	170mm	170mm	175mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm	640mm	640mm
Stem Length	60mm	75mm	75mm	90mm	90mm	105mm
Seatpost Length	300mm	350mm	350mm	400mm	400mm	400mm
