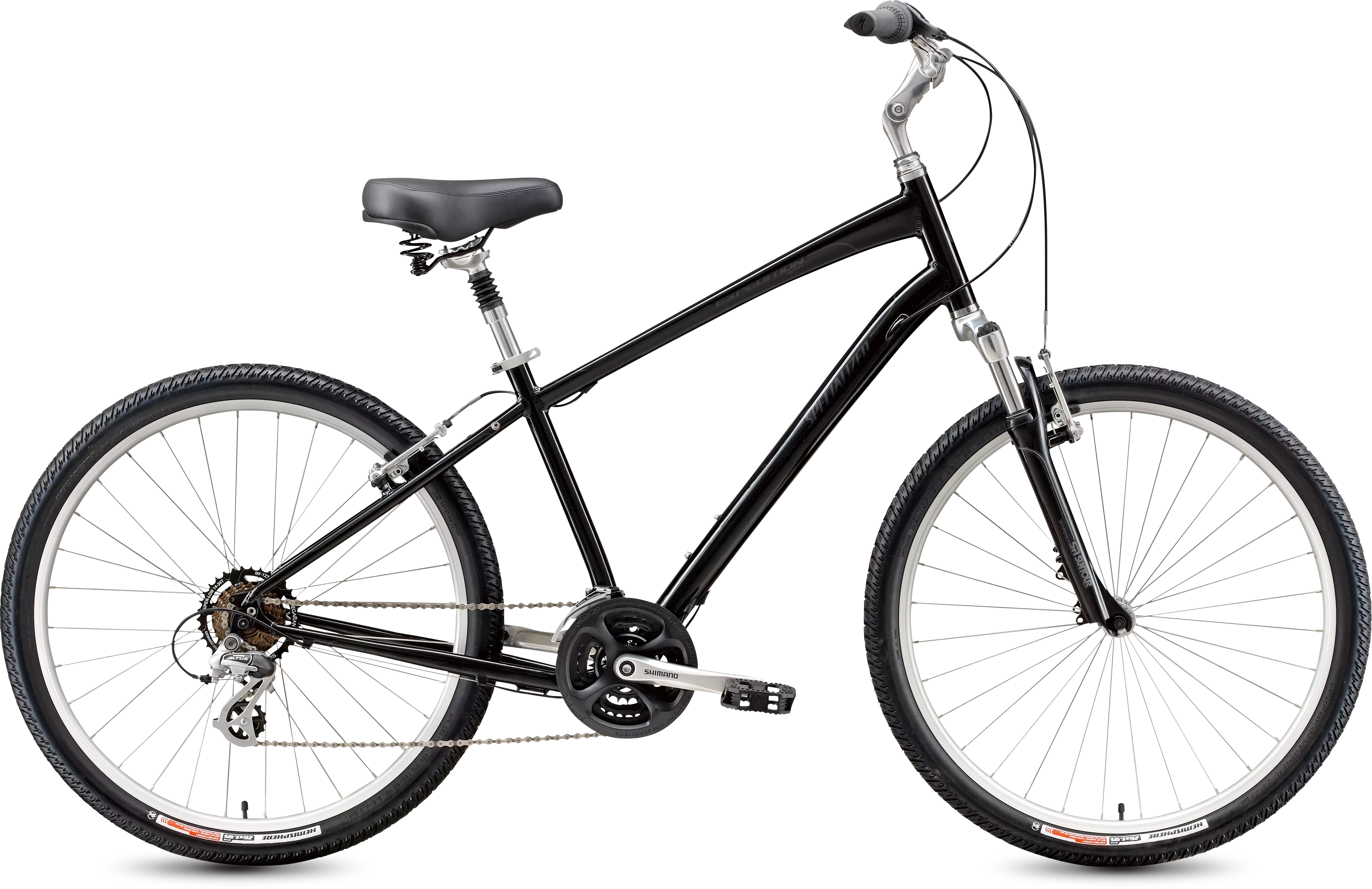

2012 Expedition Sport

0 Reviews

Suspension seatpost adds another level of plushness, while triple chainring means…

Colour:

Gloss Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Suspension seatpost adds another level of plushness, while triple chainring means wider range gearing, so the Expedition Sport can explore a wider range of terrain.

Comfort Plus saddle uses springs, dual-density foam, and a wide platform for over-the-top comfort, while a suspension seatpost takes the edge of bumpy roads
Shimano triple crankset with chainguard gives you precise, hassle-free shifting and efficient gearing for varied terrain
A1 Premium Aluminium 26" frame with Ground Control geometry for a confident, upright riding position and low standover for bike path bliss
Double-wall, 32-hole rims with machined sidewalls are strong and smooth
A1 Premium Aluminium 26" frame with Ground Control geometry for a confident, upright riding position and low standover for bike path bliss
Comfort Plus saddle uses springs, dual-density foam, and a wide platform for over-the-top comfort, while a suspension seatpost takes the edge of bumpy roads
Riser bar provides a stable and comfortable position
Shimano triple crankset with chainguard gives you precise, hassle-free shifting and efficient gearing for varied terrain

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium, Ground Control geometry, 26" comfort frame, formed tubes, forged dropouts w/ replaceable hanger

SUSPENSION

FORK

SR Suntour NEX-4110V2, alloy lower, Hi-Ten stanchions and steerer, coil/Mcu spring, preload adjust, 63mm travel

REAR SHOCK

WHEELS

RIMS

Alloy double-wall

FRONT HUB

Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR

REAR HUB

Double-sealed, ground race, freewheel type, QR

SPOKES

2mm (14g) stainless

FRONT TYRE

Specialized Hemisphere w/ Flak Jacket, 26 TPI, 26x1.95"

REAR TYRE

Specialized Hemisphere w/ Flak Jacket protection, 26 TPI, 26x1.95"

INNER TUBES

Schrader valve

COCKPIT

HANDLEBARS

Comfort riser bar, 60mm rise, 15-degree back sweep, 25.4mm

STEM

Ground Control adjustable rise, alloy head/quill, 2-bolt, 25.4mm clamp

HEADSET

1-1/8" threaded, sealed loose ball bearings

TAPE

Body Geometry Comfort, closed end, 92mm

SADDLE

Comfort Plus, dual-density foam, springs

SEATPOST

A-1 Suspension Seatpost, alloy, 27.2mm w/ 3.8mm spring

SEAT BINDER

Forged alloy w/ QR

DRIVETRAIN

SHIFT LEVERS

Shimano Revo twist, 7-speed

FRONT DERAILLEUR

Shimano FD-TX50, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Altus, 7-speed

CASSETTE

Shimano Mega Range, 7-speed, 14-34t

CRANKSET

Shimano FC-M131, w/ chainguard

CHAINRINGS

42/34/24, w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle w/ crank stop right side, capless bolts

CHAIN

KMC Z7

ACCESSORIES

PEDALS

Comfort Pedal, composite body w/rubber top, sealed loose ball

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

Alloy 4-finger, Kraton lever for twist shifter

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD	LG	XL
Seat-Tube Angle	67°	67°	67.5°	67.5°
Head-Tube Length	160mm	180mm	200mm	220mm
Seat-Post Length	0mm	0mm	0mm	0mm
Head-Tube Angle	68.5°	68.5°	68.5°	68.5°
Chain-Stay Length	500mm	500mm	500mm	500mm
Top-Tube Length, Horizontal	610mm	625mm	640mm	655mm
Front-Centre	630mm	644mm	665mm	679mm
Stand-Over Height	691mm	736mm	781mm	824mm
Seat-Tube Length, B-B Centre to Top	370mm	425mm	480mm	535mm
Fork Rake	40mm	40mm	40mm	40mm
B-B Drop	59mm	59mm	59mm	59mm
Trail	89mm	89mm	89mm	89mm
Wheelbase	1123mm	1138mm	1159mm	1173mm
